B009A-87






B009A-87-LEFT SIDE SATELLITE SENSOR 4 - MISSING MESSAGE

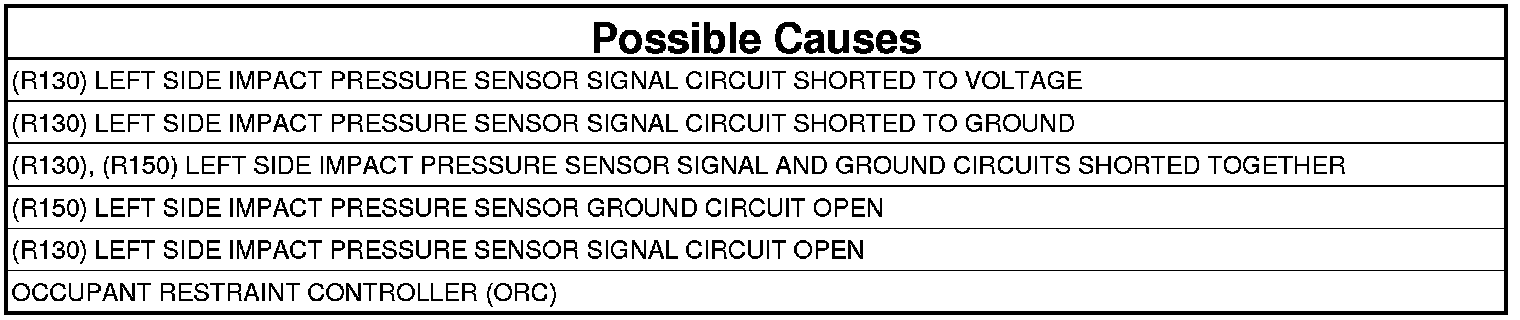

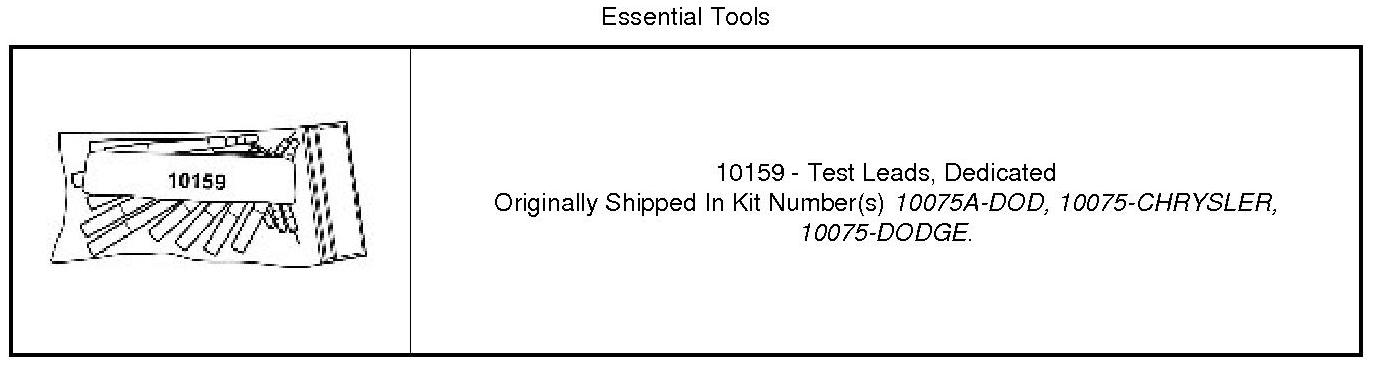

Special Tools:






For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

The left side impact pressure sensor is located in the first row door. The impact pressure sensor performs its own self test using power supplied by the Occupant Restraint Controller (ORC) then communicate this status back to the ORC with periodic updates. The repair of this fault condition involves verifying the integrity of the wiring between the ORC and the sensor.

- When Monitored:
The Occupant Restraint Controller (ORC) continuously communicates with the Left Side Impact Pressure Sensor over the sensor signal circuit. The sensor communication and on board diagnostics are powered by the ORC signal.

- Set Condition:
This code will set, if the ORC and the Left Side Impact Pressure Sensor do not establish and maintain valid data communications. The DTC will become Active after the fault has set for nine seconds. The DTC will go to Stored after the ORC to Left Side Impact Pressure Sensor communication has recovered for 4 seconds.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.

1.

NOTE: The use of a approved special tool or Digital Multimeter such as a Fluke Meter that will not apply more than 20 milliamperes to a circuit are the only measurement tools to be used.

NOTE: Probing of the circuit cavities at the ORC Module C1-A, C1-B, or C2-B body harness connectors is only to be done with a approved test lead from the Test Leads, Dedicated kit 10159, test lead 10159-6. Or a comparable test lead to prevent vehicle wiring harness connector damage during diagnostic procedures. (10159)
VERIFY ACTIVE DTC

NOTE: Make sure the battery is fully charged.

1. Turn the ignition on.
2. With the scan tool, read the ORC DTCs.

Does the scan tool display active: B009A-87-LEFT SIDE SATELLITE SENSOR 4 - MISSING MESSAGE IS ACTIVE?

Yes

- Go To 2

No

- Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. Restraints System Intermittent Condition Test.

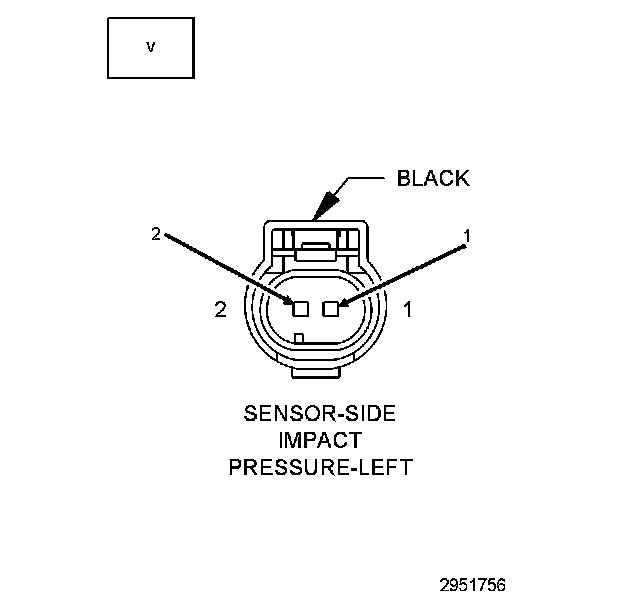

2. CHECK THE (R130), (R150) LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL AND GROUND CIRCUITS FOR A SHORT TO VOLTAGE





WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the Left Side Impact Pressure Sensor harness connector.
2. Disconnect the ORC harness connector.If the vehicle is equipped with the standard key ignition, follow this ignition on warning.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
If the vehicle is equipped with the keyless ignition, follow this ignition on warning.

WARNING: Disconnect the 12-volt battery wait two minutes before proceeding, remove the ORC fuses, connect the 12-volt battery, wait two minutes before proceeding. Cycle the ignition to the On position, then reconnect the ORC fuses. Wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

3. Measure the voltage of the (R130) Left Side Impact Pressure Sensor Signal circuit and (R150) Left Side Impact Pressure Sensor Ground circuit at the Left Side Impact Pressure Sensor harness connector and ground.

Is there any voltage present?

Yes

- Repair the (R130), (R150) Left Side Impact Pressure Sensor circuits for a short to voltage.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Go To 3

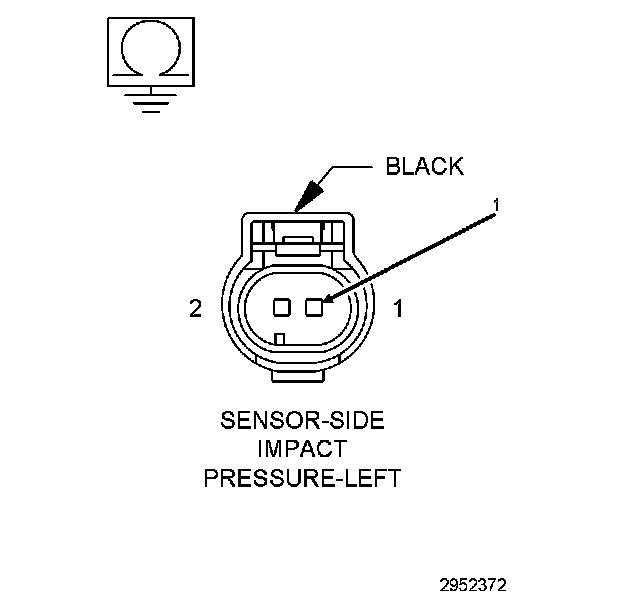

3. CHECK THE (R130) LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND





WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Measure the resistance of the (R130) Left Side Impact Pressure Sensor Signal circuit between the Left Side Impact Pressure Sensor connector and ground.

Is the resistance below 20 Ohms?

Yes

- Repair the (R130) Left Side Impact Pressure Sensor Signal circuit for a short to ground.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Go To 4

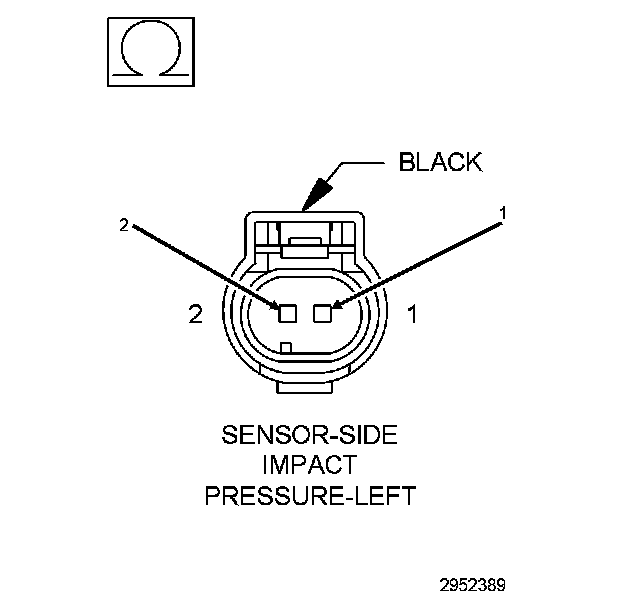

4. CHECK THE (R130), (R150) LEFT SIDE IMPACT PRESSURE SENSOR CIRCUITS FOR A SHORT TOGETHER




1. Measure the resistance between the (R130) Left Side Impact Pressure Sensor Signal and (R150) Left Side Impact Pressure Sensor Ground circuits at the Left Side Impact Pressure Sensor connector.

Is the resistance below 20 Ohms?

Yes

- Repair the (R130), (R150) Left Side Impact Pressure Sensor circuits shorted together.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Go To 5

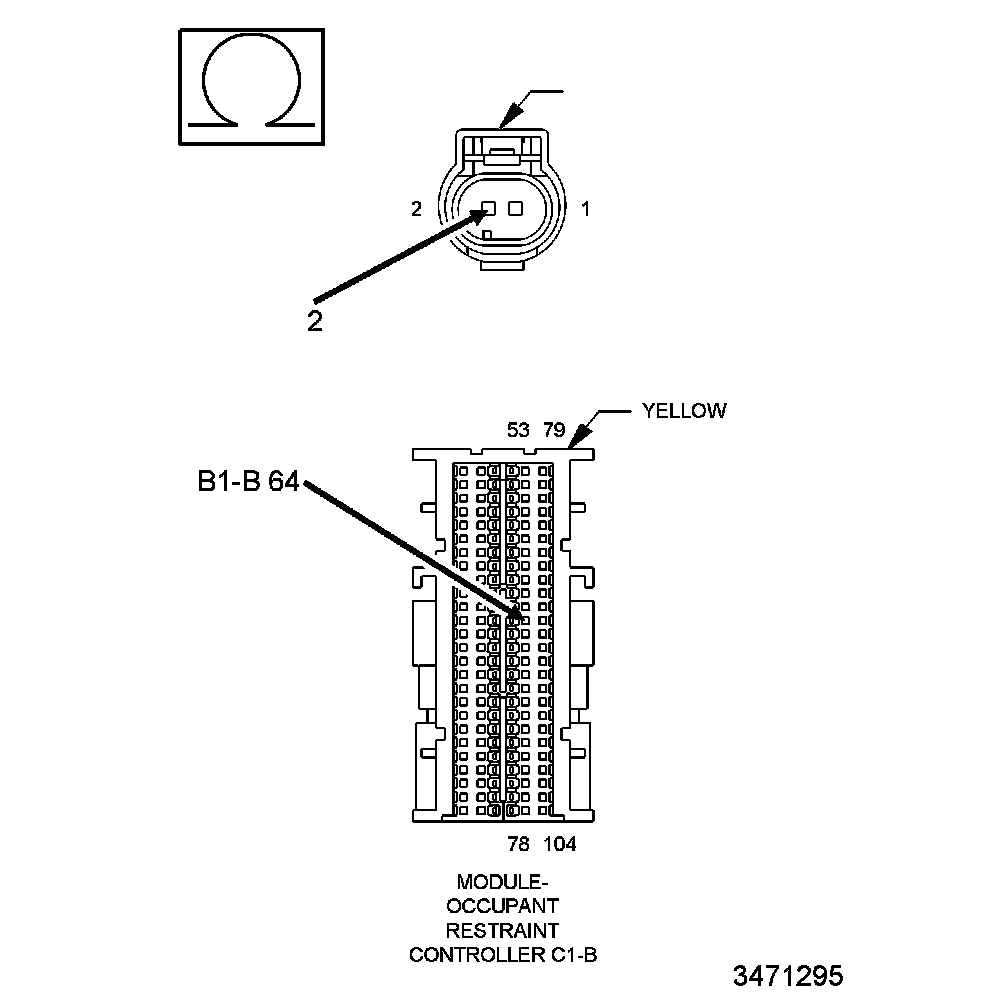

5. CHECK THE (R150) LEFT SIDE IMPACT PRESSURE SENSOR GROUND CIRCUIT FOR AN OPEN OR HIGH RESISTANCE




1. Connect the appropriate test lead to the DVOM.
2. Measure the resistance of the (R150) Left Side Impact Pressure Sensor Ground circuit between the Left Side Impact Pressure Sensor connector terminal 2 and terminal C1-B 64 of the ORC module body harness connector.

Is the resistance below 1 Ohm?

Yes

- Go To 6

No

- Repair the (R150) Left Side Impact Pressure Sensor Ground circuit for an open or high resistance.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

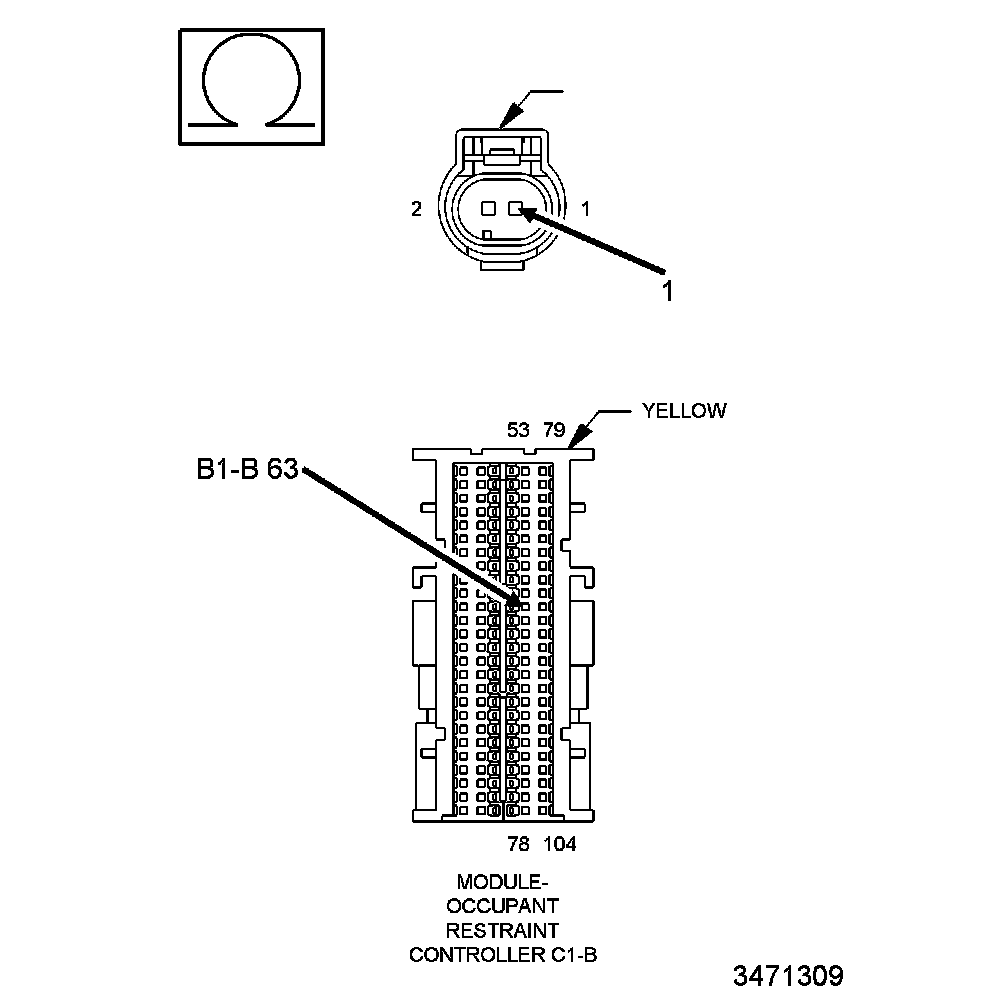

6. CHECK THE (R130) LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL CIRCUIT FOR AN OPEN OR HIGH RESISTANCE




1. Measure the resistance of the (R130) Left Side Impact Pressure Sensor Signal circuit between the Left Side Impact Pressure Sensor harness connector terminal 1 and terminal C1B 63 of the ORC module body harness connector.

Is the resistance below 1 Ohm?

Yes

- Go To 7

No

- Repair the (R130) Left Side Impact Pressure Sensor Signal circuit for an open or high resistance.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

7. CHECK OPERATION OF THE LEFT SIDE IMPACT PRESSURE SENSOR
1. Replace the Left Side Impact Pressure Sensor. Impact Sensor - Removal
2. Reconnect the vehicle body harness to the impact sensor.
3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.If the vehicle is equipped with the standard key ignition, follow this ignition on warning.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
If the vehicle is equipped with the keyless ignition, follow this ignition on warning.

WARNING: Disconnect the 12-volt battery wait two minutes before proceeding, remove the ORC fuses, connect the 12-volt battery, wait two minutes before proceeding. Cycle the ignition to the On position, then reconnect the ORC fuses. Wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

4. Connect the scan tool to the Data Link Connector - use the most current software available.
5. Use the scan tool and erase the stored codes in all airbag system modules.
6. Turn the Ignition Off, and wait five seconds before turning the Ignition On.
7. Wait one minute, and read active codes and if there are none present read the stored codes.

Did the active: B009A-87-LEFT SIDE SATELLITE SENSOR 4 - MISSING MESSAGE DTC return?

Yes

- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the Occupant Restrain Controller (ORC). Occupant Restraint Controller - Removal.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Repair is complete.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
