B0092-9A

B0092-9A-LEFT SIDE ACCELERATION SENSOR 2 - COMPONENT OR SYSTEM OPERATING CONDITIONS

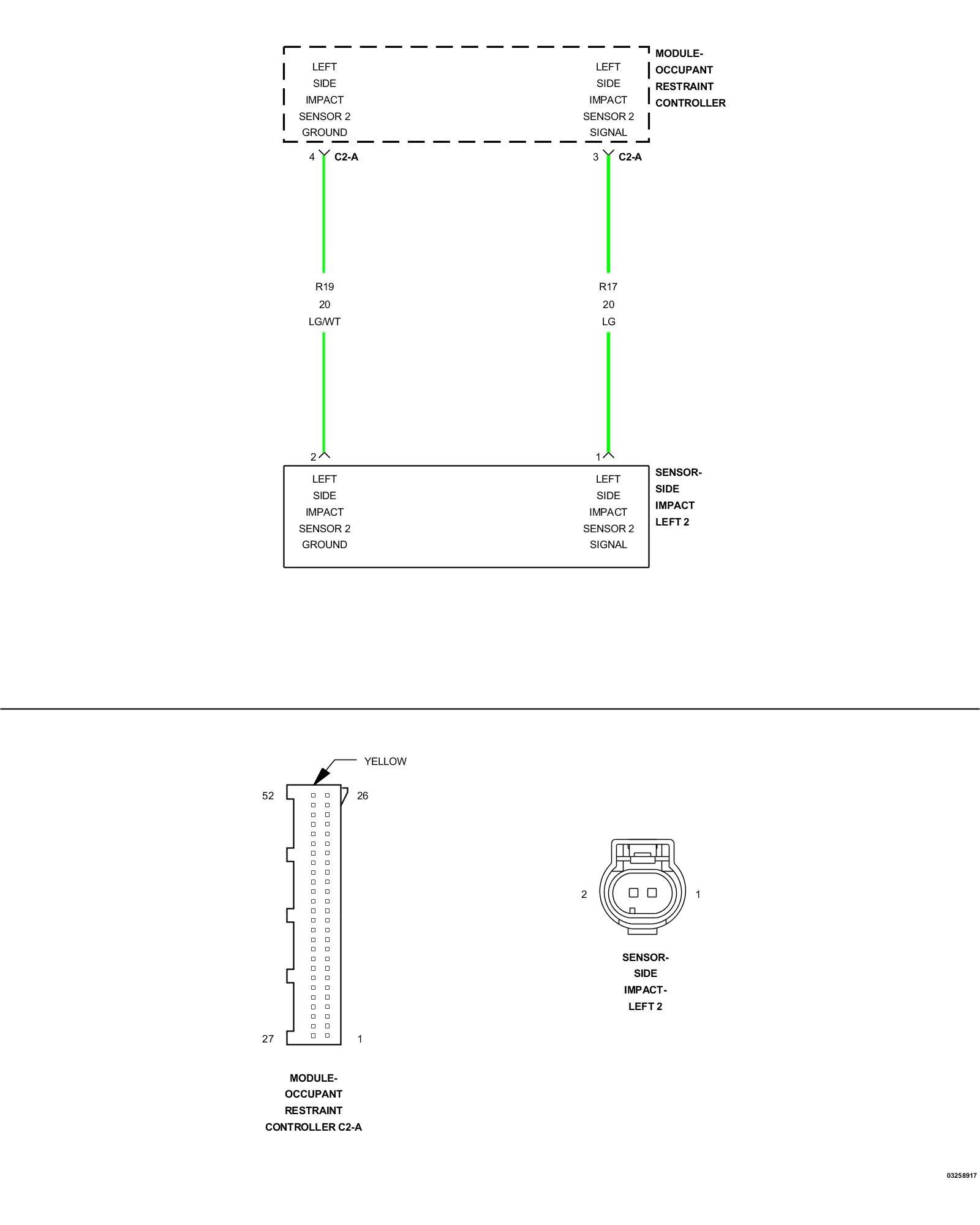

For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

When powered, the Occupant Restraint Controller (ORC) sends a test current to the sensors to verify the integrity of the sensor and wiring. The presence of this code indicates that any two circuits, from two or more sensors, have become shorted or "coupled" together.

- When Monitored:
The ORC checks for the presence of coupled sensor circuits once during the initialization process.

- Set Condition:
This DTC sets when the ORC detects that any two circuits, from two or more sensors, have become shorted or "coupled" together. Once set, this DTC is latched for the entire ignition cycle.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.

Diagnostic Test

1. DETERMINE ACTIVE OR STORED DTC

NOTE: Make sure the battery is fully charged.

1. Turn the ignition on.
2. Perform ORC module reset. Access the Miscellaneous Function menu from the ORC ECU Overview screen on the scan tool to perform this operation.
3. Using the scan tool, read ORC DTCs.

Is the DTC active or stored?

ORC - ACTIVE DIAGNOSTIC TROUBLE CODE (DTC)
- Go To 2

ORC - STORED DTC
- Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. .

2. CHECK FOR ADDITIONAL ACTIVE SQUIB DTCS
1. Using the scan tool, read ORC DTCs.

Are there sensor specific DTCs set as active in addition to B092-9A-LEFT SIDE ACCELERATION SENSOR 2 - COMPONENT OR SYSTEM OPERATING CONDITIONS?

Yes
- Repair all other active sensor specific DTCs before repairing B092-9A-LEFT SIDE ACCELERATION SENSOR 2 - COMPONENT OR SYSTEM OPERATING CONDITIONS.

No
- Go To 3

3. USE THE SCAN TOOL TO IDENTIFY THE COUPLED CIRCUITS
1. Using the scan tool, identify the two or more sensor circuits that read SET.

Are two or more sensor circuit DTCs set?

Yes
- Repair the two or more sensor circuits for a sensor circuit coupling condition.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No
- Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. .
