B0050-13






B0050-13-DRIVER SEATBELT BUCKLE SENSOR - CIRCUIT OPEN

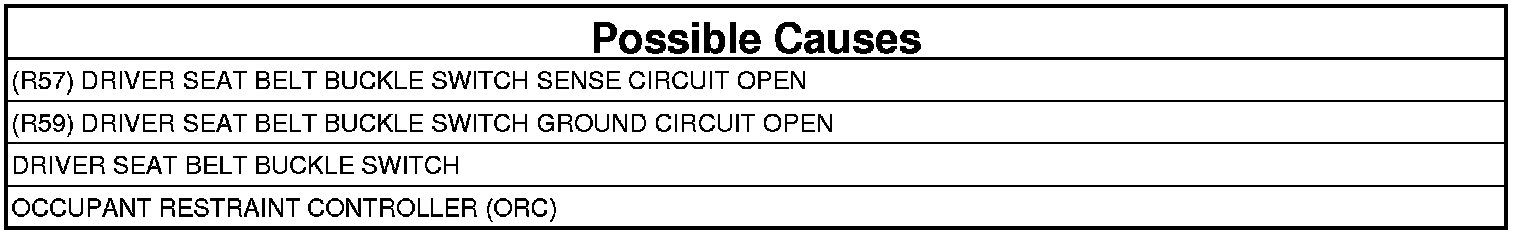

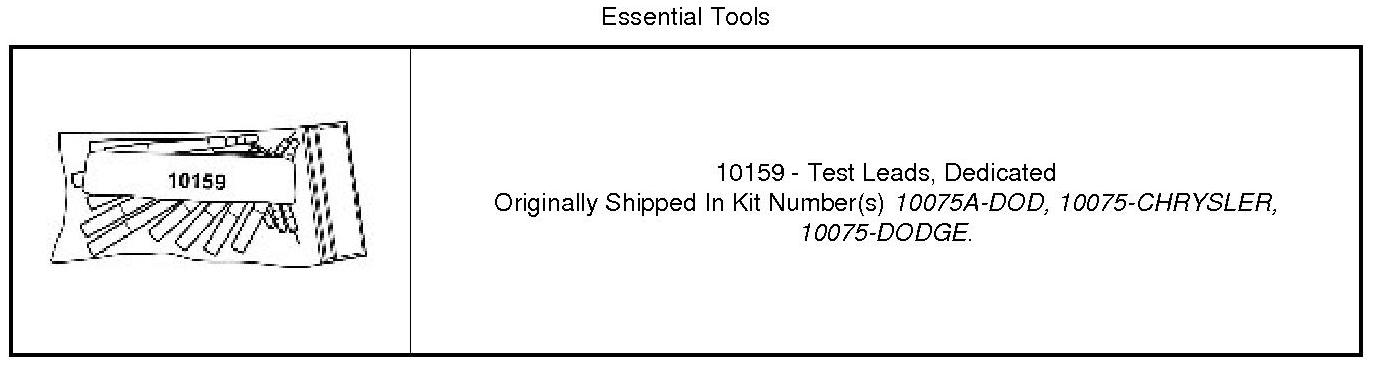

Special Tools:










For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

When powered, the Occupant Restraint Controller (ORC) sends a test current across the Driver Seat Belt Buckle Switch circuits every 100 ms to verify the integrity of the switch and wiring. The front seat belt switches cannot be adjusted or repaired and, if ineffective or damaged, the entire front seat belt buckle-half unit must be replaced. The airbag warning lamp will display in the instrument cluster for this fault.

- When Monitored:
With the ignition on and the Occupant Restraint Controller (ORC) configured for a Driver Seat Belt Buckle Switch. The ORC monitors the switch input current ranges at power up and continuously every 100ms while the ignition is in on.

- Set Condition:
If the ORC detects the driver seat belt buckle switch circuits have been open for 2.5 seconds. The active code will change to stored after the ORC verifies the driver seat belt buckle switch sense circuit voltage has returned to normal voltage range for five seconds.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure.

1. VERIFY ACTIVE DTC

NOTE: The use of a approved special tool or Digital Multimeter such as a Fluke Meter that will not apply more than 20 milliamperes to a circuit are the only measurement tools to be used.

NOTE: Probing of the circuit cavities at the ORC Module C1-A, C1-B, or C2-A body harness connectors is only to be done with a approved test lead from the (10159), test lead 10159-6. Or a comparable test lead to prevent vehicle wiring harness connector damage during diagnostic procedures.

NOTE: Make sure the battery is fully charged.

1. Turn the ignition on.
2. With the scan tool, read ORC DTC.

Does the scan tool display active B0050-13-DRIVER SEATBELT BUCKLE SENSOR - CIRCUIT OPEN DTC?

Yes

- Go To 2

No

- Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. Restraints System Intermittent Condition Test.

2. (R57) DRIVER SEAT BELT BUCKLE SWITCH SENSE CIRCUIT AND (R59) DRIVER SEAT BELT BUCKLE SWITCH GROUND CIRCUIT FOR AN OPEN





WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the Driver Seat Belt Buckle Switch harness connector.
2. Disconnect the ORC harness connectors.

NOTE: Check connectors - Clean and repair as necessary.

3. Connect the test leads to the DVOM.

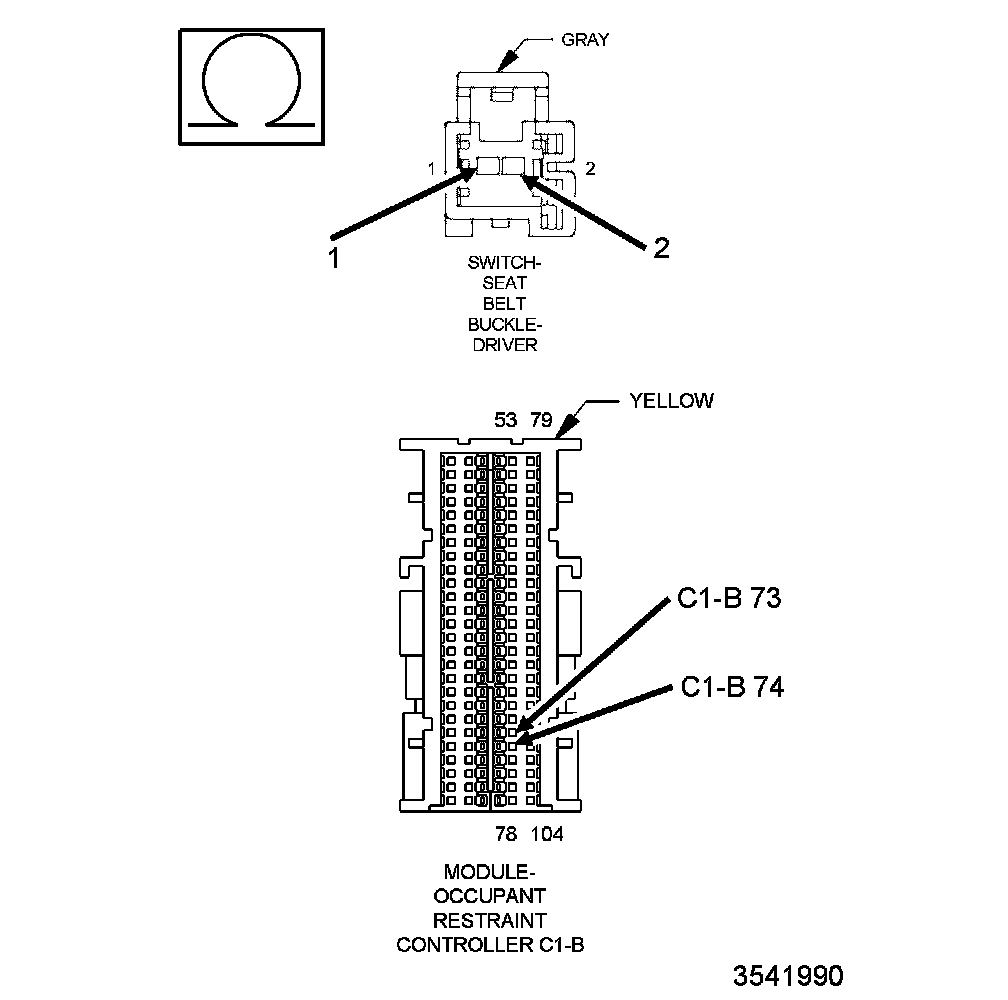

4. Measure the resistance of the (R57) Driver Seat Belt Buckle Switch Sense circuit between the Driver Seat Belt Buckle Switch harness connector cavity 1 and the ORC module body harness connector cavity C1-B 73.
5. Measure the resistance of the (R59) Driver Seat Belt Buckle Switch Ground circuit between the Driver Seat Belt Buckle Switch harness connector cavity 2 and the ORC module body harness connector cavity C1-B 74.

Is the resistance greater than 1.0 Ohm on any of these circuits?

Yes

- Repair the (R57, R59) Driver Seat Belt Buckle Switch circuits for an open.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Go To 3

3. CHECK OPERATION OF THE DRIVER SEAT BELT BUCKLE SWITCH
1. Replace the Driver Seat Belt Buckle Switch.Seat Belt Buckle - Removal.
2. Reconnect the vehicle body harness connector to the Driver Seat Belt Buckle Switch.
3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.If the vehicle is equipped with the standard key ignition, follow this ignition on warning.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
If the vehicle is equipped with the keyless ignition, follow this ignition on warning.

WARNING: Disconnect the 12-volt battery wait two minutes before proceeding, remove the ORC fuses, connect the 12-volt battery, wait two minutes before proceeding. Cycle the ignition to the On position, then reconnect the ORC fuses. Wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

4. Connect the scan tool to the Data Link Connector - use the most current software available.
5. Use the scan tool and erase the stored DTCs.
6. Turn the Ignition OFF, and wait 15 seconds before turning the Ignition ON.
7. Wait one minute, and read active DTCs and if there are none present read the stored DTCs.

Does the scan tool display B0050-13-DRIVER SEATBELT BUCKLE SENSOR - CIRCUIT OPEN as active?

Yes

- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

- WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.

- Replace the Occupant Restrain Controller (ORC). Occupant Restraint Controller - Removal.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.

No

- Repair is complete.
- Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Restraints System Verification Test.
