Valve Guide Seals - Removal

REMOVAL






NOTE: If the springs are to be reused, identify their positions so that they can be reassembled into their original locations. Number 5 cylinder exhaust valve spring shown, all other valve springs similar.

1. Remove the valve spring(s) (2) Valve Springs - Removal.






NOTE: Number 5 cylinder exhaust valve guide seal shown, all other valve guide seals similar.

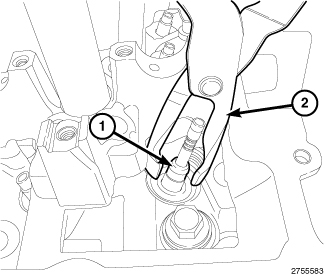

2. Remove the valve guide seal (1) using a valve seal tool (2). Discard the removed seal.






NOTE: Number 5 cylinder exhaust valve spring seat shown, all other valve spring seats similar.

3. If required, remove the valve spring seat (1).
4. If required, remove the valve(s) Intake And Exhaust Valves - Removal.
