Piston Oil Cooler Jet - Installation

INSTALLATION

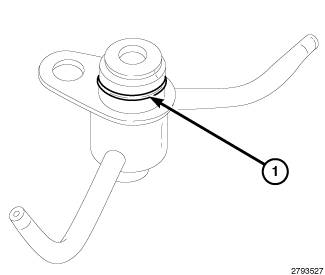

1. Lubricate a new O-ring seal (1) with engine oil and install on the piston oil cooler jet(s).






NOTE: Piston oil cooler jet for cylinders one/two shown. Piston oil cooler jets for cylinders three/four and five/six are similar.

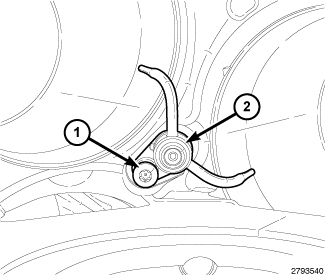

2. Install the piston oil cooler jet(s) (2) into the engine block and tighten the retaining bolt (1) to 6 Nm (53 in. lbs.).
3. Install the crankshaft Crankshaft - Installation.
4. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level Service and Repair
5. Fill the cooling system Service and Repair.
6. Connect the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
7. Run the engine until it reaches normal operating temperature. Check cooling system for correct fluid level Service and Repair
