Engine Oil Cooler - Removal

REMOVAL






NOTE: The oil cooler can not be cleaned out. In the event that the engine requires rebuilding or replacement, replace the oil cooler.

1. Perform the fuel pressure release procedure Service and Repair.
2. Disconnect and isolate the negative battery cable.
3. Drain the cooling system Service and Repair.
4. Remove the air cleaner housing assembly, upper and lower intake manifolds Intake Manifold - Removal

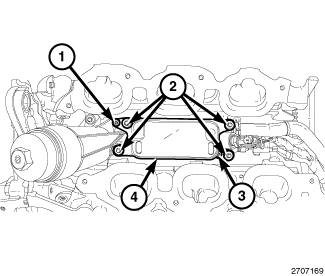

5. Remove four bolts (2) and two screws (1) and (3).
6. Remove the oil cooler (4).

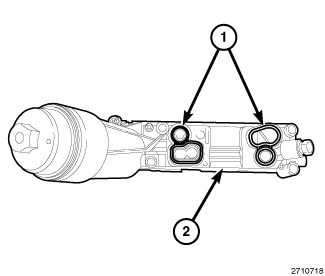

7. Remove and discard the oil cooler seals (1).
