Engine Block Heater - Installation

3.6L





1. Clean block core hole and heater seat.

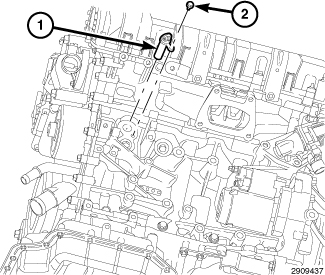

2. Insert heater block (1) assembly.
3. With block heater seated, tighten screw (2) to 12N.M (106 in.lbs.) to assure a positive seal.
4. Install power cord plug to block heater (1).
5. Fill cooling system with coolant to the proper level Service and Repair.





6. Install the A/C compressor A/C Compressor - Installation.
