Engine Coolant Thermostat - Removal

3.6L






WARNING: Do not loosen radiator draincock with system hot and pressurized. Serious burns from coolant can occur.

CAUTION: The Thermostat and housing is serviced as an assembly. Do not remove the thermostat from the housing, damage to the thermostat may occur.

Do not waste reusable coolant. If solution is clean, drain coolant into a clean container for reuse.

If thermostat is being replaced, be sure that replacement is specified thermostat for vehicle model and engine type.

1. Disconnect negative battery cable at battery.
2. Drain cooling system Service and Repair.
3. Remove the coolant recovery bottle and position aside.

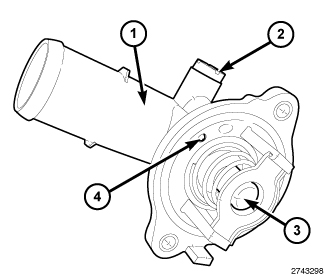

4. Remove upper radiator hose clamp and upper radiator hose at thermostat housing (1).
5. Remove thermostat housing mounting bolts.
6. Remove the thermostat housing (1) from the vehicle and discard the gasket seal.
