P0111






P0111-INTAKE AIR TEMPERATURE SENSOR RATIONALITY





For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

Intake Air Temperature Sensor performance looks at the outputs of three temperature sensors and compares them under cold start conditions. Following a start to run delay time, the outputs of the ambient, engine coolant and intake air temperature sensors will be compared. If the engine coolant and ambient air temperature sensors agree and the intake air temperature does not agree, the Intake Air Temperature Sensor is declared as irrational. If declared irrational a second comparison will be done after a short drive cycle.

- When Monitored:
The engine off time is greater than 480 minutes. Ambient Temperature if greater than -64°C (-83°F).

- Set Condition:
Once the vehicle is soaked for a calibrated engine off time and then driven over calibrated speed and load conditions for some calibrated time, the PCM compares the ambient, engine coolant and intake air temperature sensor values. If engine coolant and ambient air temperature sensors agree with each other but intake air temperature does not agree with them, the intake air temperature sensor is declared as irrational. Two Trip Fault. Three good trips to turn off the MIL.





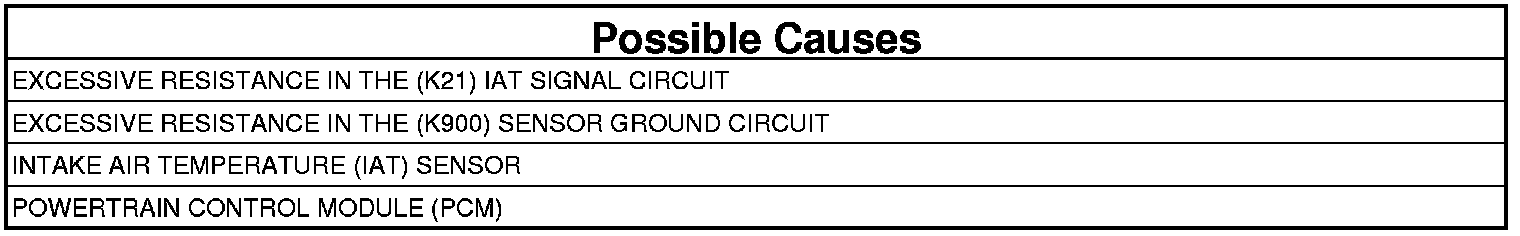

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

1. ACTIVE DTC
1. Turn the ignition off.
2. If possible, allow the vehicle to sit with the ignition off for more than 480 minutes in an environment where the temperature is consistent and above -7°C (19.4°F).
3. Test drive the vehicle. The vehicle must exceed 48 km/h (30 mph) during the test drive. Do not cycle the ignition off when the test drive is completed.
4. With the scan tool, select View DTCs.

Is the DTC Active or Pending at this time?

Yes

- Go To 3

No

- Go To 2

2. INTAKE AIR TEMPERATURE
1. Turn the ignition off.
2. Allow the vehicle to sit with the ignition off in an environment where the temperature is consistent and above -7°C (19.4°F) until the engine coolant temperature is equal to ambient temperature.
3. Turn the ignition on.
4. With the scan tool, compare the AAT, ECT and IAT sensor values.

Is the Intake Air Temperature Sensor value within 10°C (18°F) of the other two sensor values?

Yes

- Perform the INTERMITTENT CONDITION diagnostic procedure. Intermittent Condition Test.

No

- Go To 3

3. IAT SENSOR VOLTAGE
1. Turn the ignition off.
2. Disconnect the Intake Air Temperature Sensor harness connector.
3. Turn the ignition on.
4. With the scan tool, read the Intake Air Temperature Sensor voltage.

NOTE: The sensor voltage should be approximately 5.0 Volts (plus or minus.1 Volt) with the connector disconnected.

Does the scan tool display the voltage as described above?

Yes

- Go To 4

No

- Go To 5

4. IAT SENSOR




1. With the scan tool, read the IAT voltage.

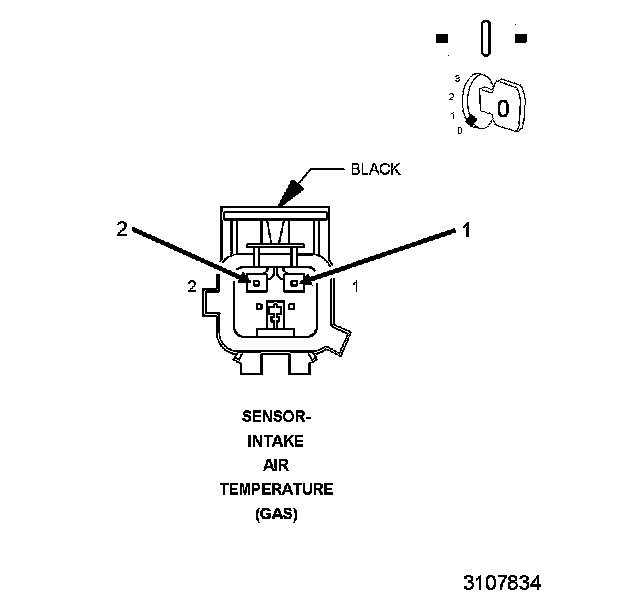

2. Connect a jumper wire between the (K21) IAT Signal circuit and the (K900) Sensor ground circuit in the IAT Sensor harness connector.

NOTE: The sensor voltage should be approximately 0.0 Volts (plus or minus.1 Volt) with the jumper wire in place.

Does the scan tool display the voltage as described above?

Yes

- Verify that there is good pin to terminal contact in the IAT Sensor and Powertrain Control Module connectors. Replace the IAT Sensor if no problems were found with the connectors.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Go To 5
NOTE: Remove the jumper wire before continuing.


5. EXCESSIVE RESISTANCE IN THE (K21) IAT SIGNAL CIRCUIT




1. Turn the ignition off.
2. Disconnect the PCM C2 harness connector.

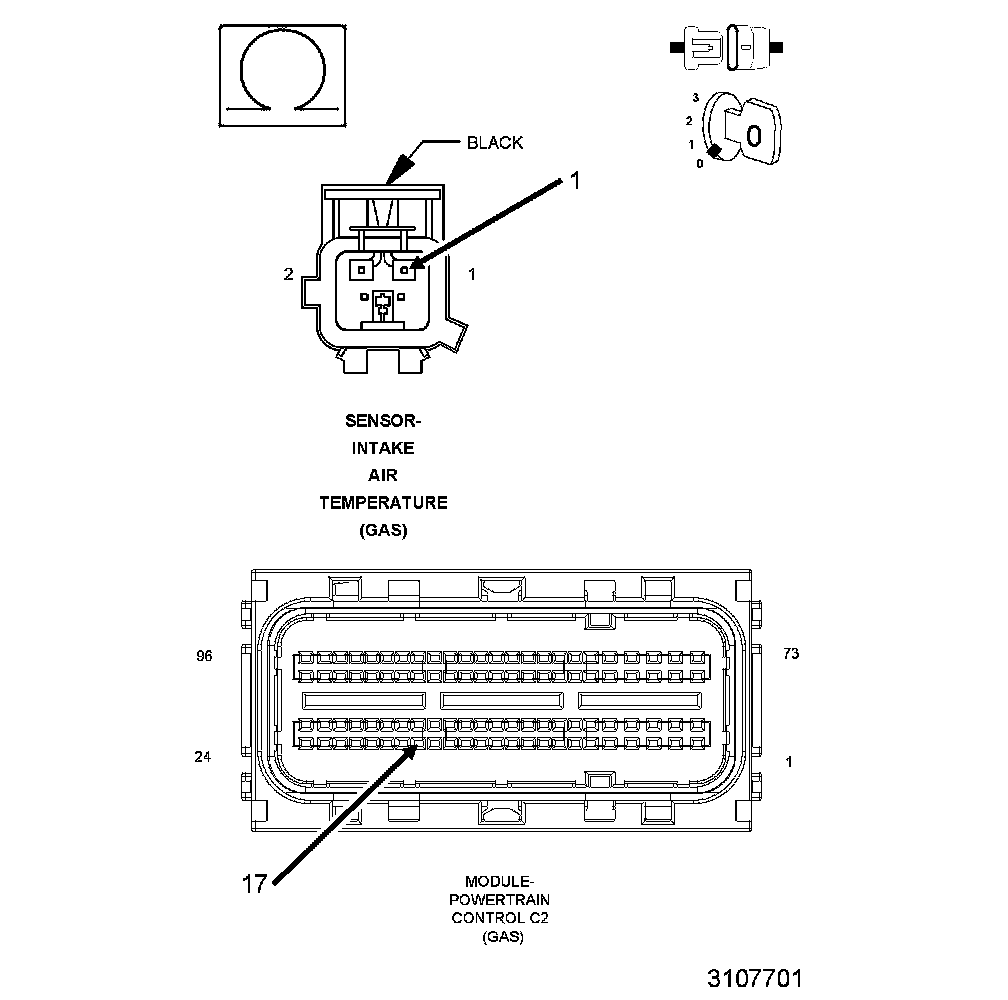

3. Measure the resistance of the (K21) IAT Signal circuit between the IAT Sensor harness connector and the PCM C2 harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Go To 6

No

- Repair the open or excessive resistance in the (K21) IAT Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

6. EXCESSIVE RESISTANCE IN THE (K900) SENSOR GROUND CIRCUIT




1. Measure the resistance of the (K900) Sensor Ground circuit between the IAT Sensor harness connector and the PCM C2 harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Go To 7

No

- Repair the open or excessive resistance in the (K900) Sensor ground circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

7. POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the IAT Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the Intake Air Temperature Sensor and Powertrain Control Module connectors.
4. Perform any Technical Service Bulletins that may apply.

Were there any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Replace and program the Powertrain Control Module. Powertrain Control Module - Removal.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.
