Front Wiper Arm - Installation
INSTALLATION

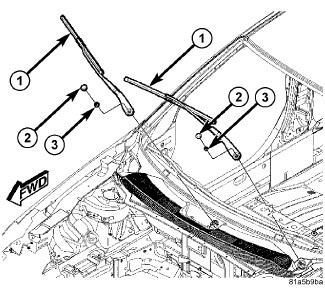

1. Place arm (1) on pivot shaft and align blade with wiper location made on windshield
2. Install retaining nut (3). Tighten nut to 25 Nm (18.5 ft. lbs.).
3. Install arm nut cover (2)
.
INSTALLATION
1. Place arm (1) on pivot shaft and align blade with wiper location made on windshield
2. Install retaining nut (3). Tighten nut to 25 Nm (18.5 ft. lbs.).
3. Install arm nut cover (2)
.
