Transmission Solenoid And Pressure Switch Assembly - Removal

REMOVAL

1. Remove valve body Valve Body - Removal.

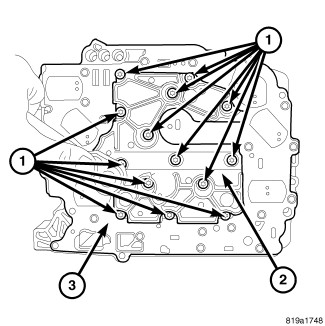

2. Remove the clamp plate bolts and clamp plate.

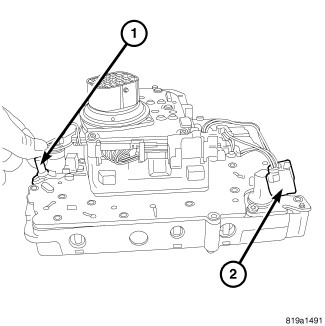

3. Remove the electrical connectors to the pressure control solenoid and line pressure sensors.
4. Remove the solenoid/pressure switch assembly.
