Input Clutch Assembly - Disassembly

DISASSEMBLY

Special Tools:















1. Mount input clutch assembly (3)(Figure 1) to Input Clutch Pressure Fixture Tool.
2. Tap down reverse clutch reaction plate (4) to release pressure from snap ring (2).

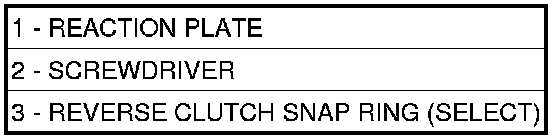

3. Remove reverse clutch snap ring (3)(Figure 2).

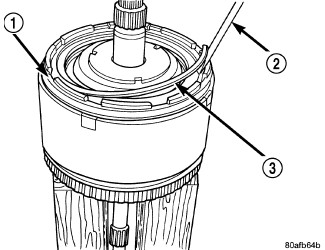

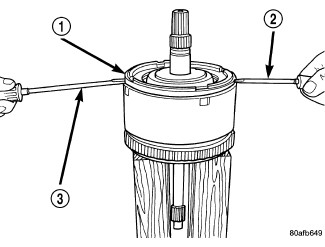

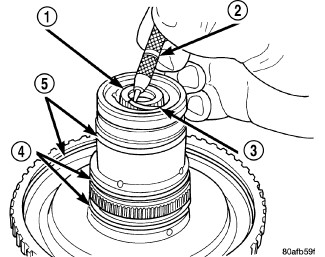

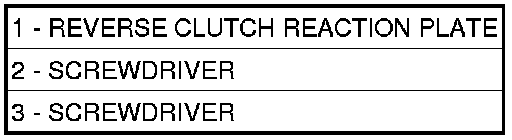

4. Pry up and remove reverse clutch reaction plate (1)(Figure 3).

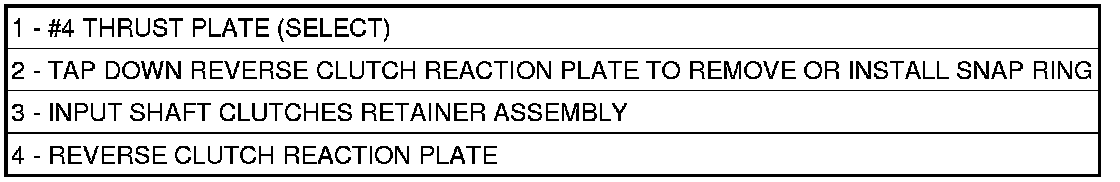

5. Remove reverse clutch pack (3,4)(Figure 4). Tag components for assembly identification.

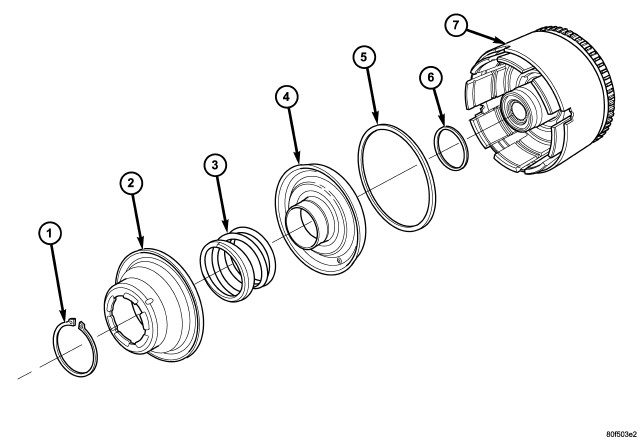

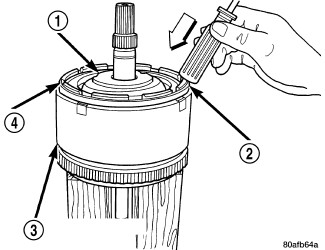

6. Remove the OD/Reverse pressure plate snap ring (1)(Figure 5).
7. Remove OD/Reverse pressure plate (2).
8. Remove OD/Reverse pressure plate wave snap ring (3).
9. Remove OD clutch pack (4,5). Tag components for assembly identification.

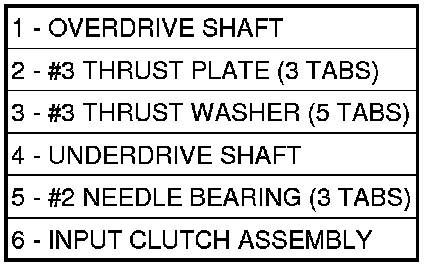

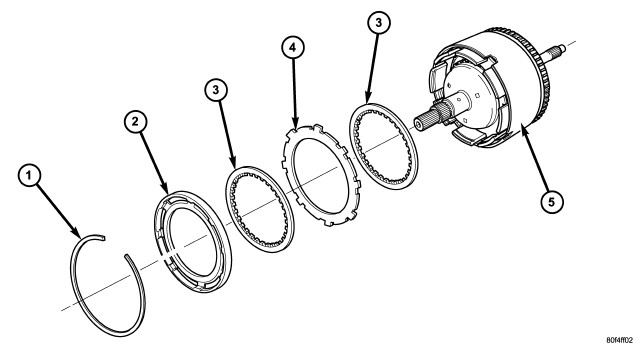

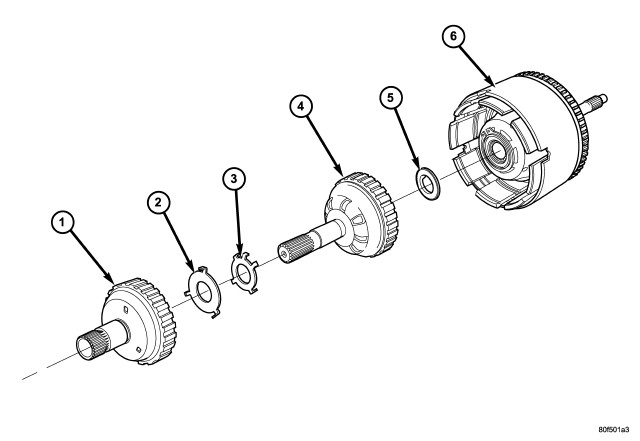

10. Remove and inspect OD (1)(Figure 6) and UD Shafts (4), as well as number three thrust washer and plate (2, 3), and number two needle bearing (5).

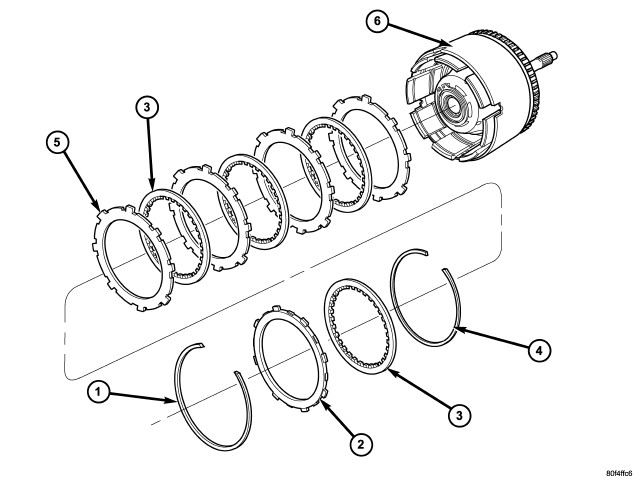

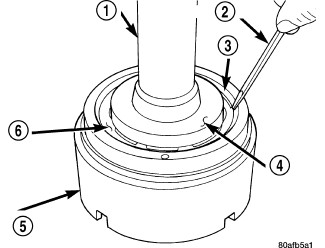

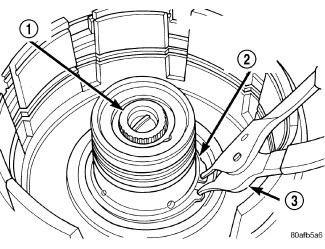

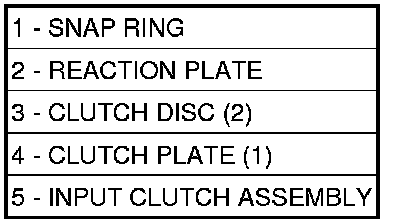

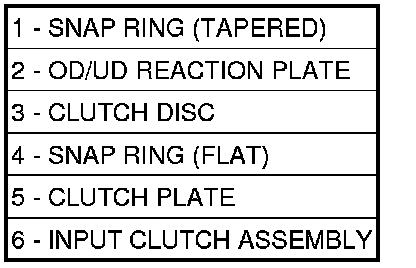

11. Remove the OD/UD reaction plate tapered snap ring (1)(Figure 7), clutch plate (5), and first clutch disc (3).
12. Remove the UD clutch flat snap ring (4) and rest of the input clutch assembly (6). Tag clutch pack for assembly identification.










CAUTION: Compress return spring just enough to remove or install snap ring.

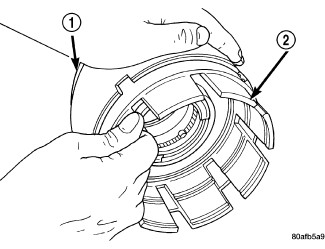

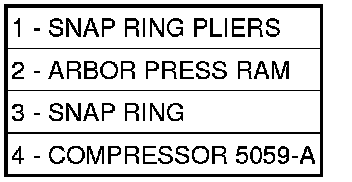

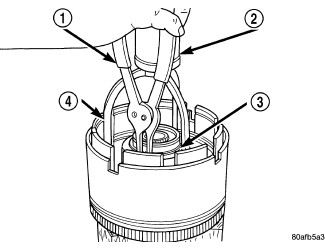

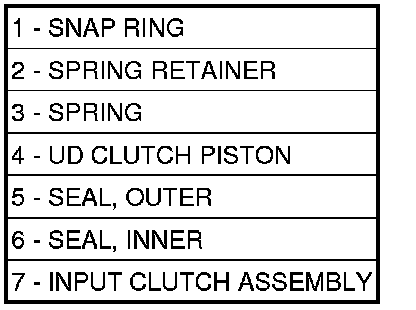

13. Using Compressor (4)(Figure 8) and an arbor press (2), compress UD clutch piston/spring enough to remove snap ring (3).

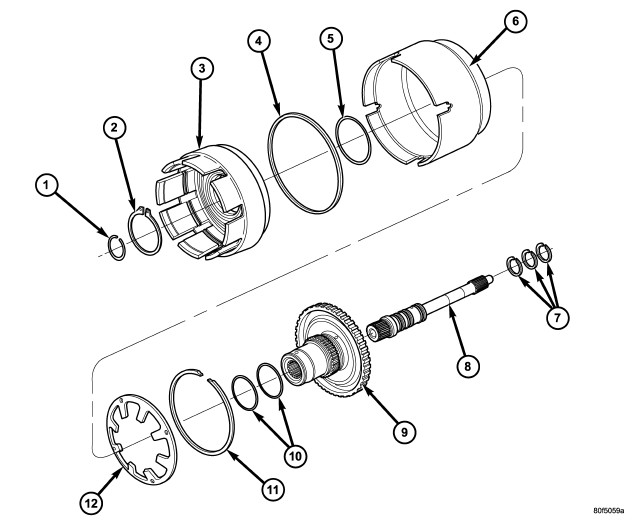

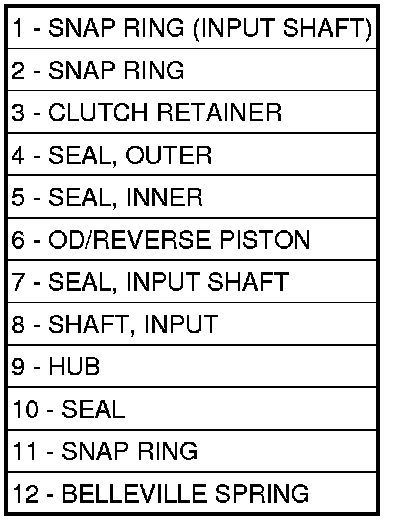

14. Refer to the exploded view as necessary when performing the following steps
15. Remove spring retainer (2)(Figure 9), spring (3), and UD clutch piston (4).










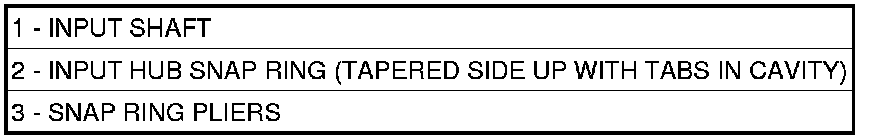

16. Remove input hub tapered snap ring (2)(Figure 10).

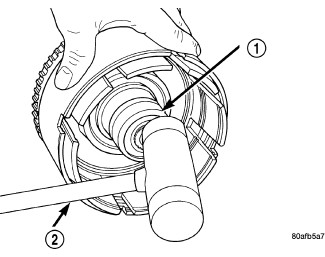

17. Tap on input hub with soft faced hammer (2)(Figure 11) and separate input hub from OD/Reverse piston and clutch retainer.










18. Separate clutch retainer (2)(Figure 12) from OD/Reverse piston (1).

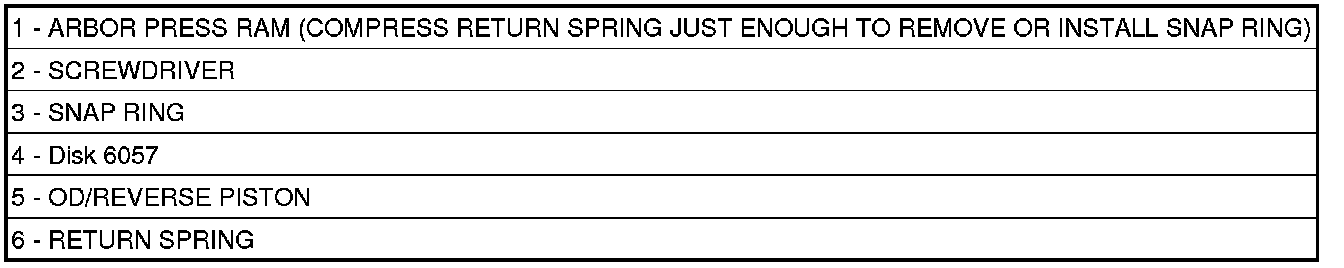

19. Using Disk (4)(Figure 13) and an arbor press (1), compress return OD/Reverse piston return spring just enough to remove snap ring (3).

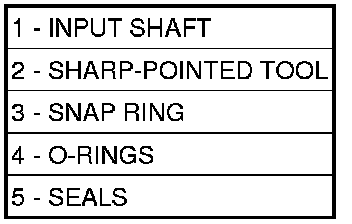

20. Remove input shaft to input clutch hub snap ring (3)(Figure 14).

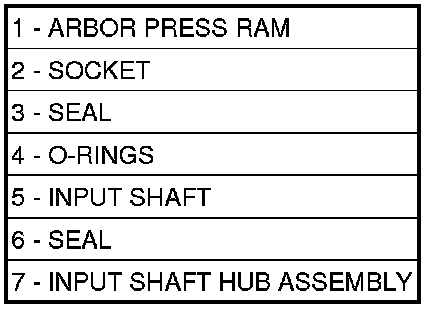

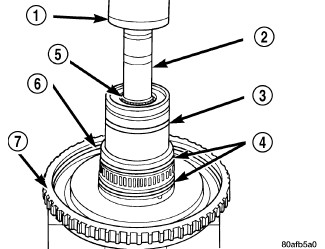

21. Using a suitably sized socket (2)(Figure 15) and an arbor press (1), remove input shaft (5) from input shaft hub (7).










22. Refer to the exploded view as necessary when performing the above steps
