Final Drive - Assembly

ASSEMBLY

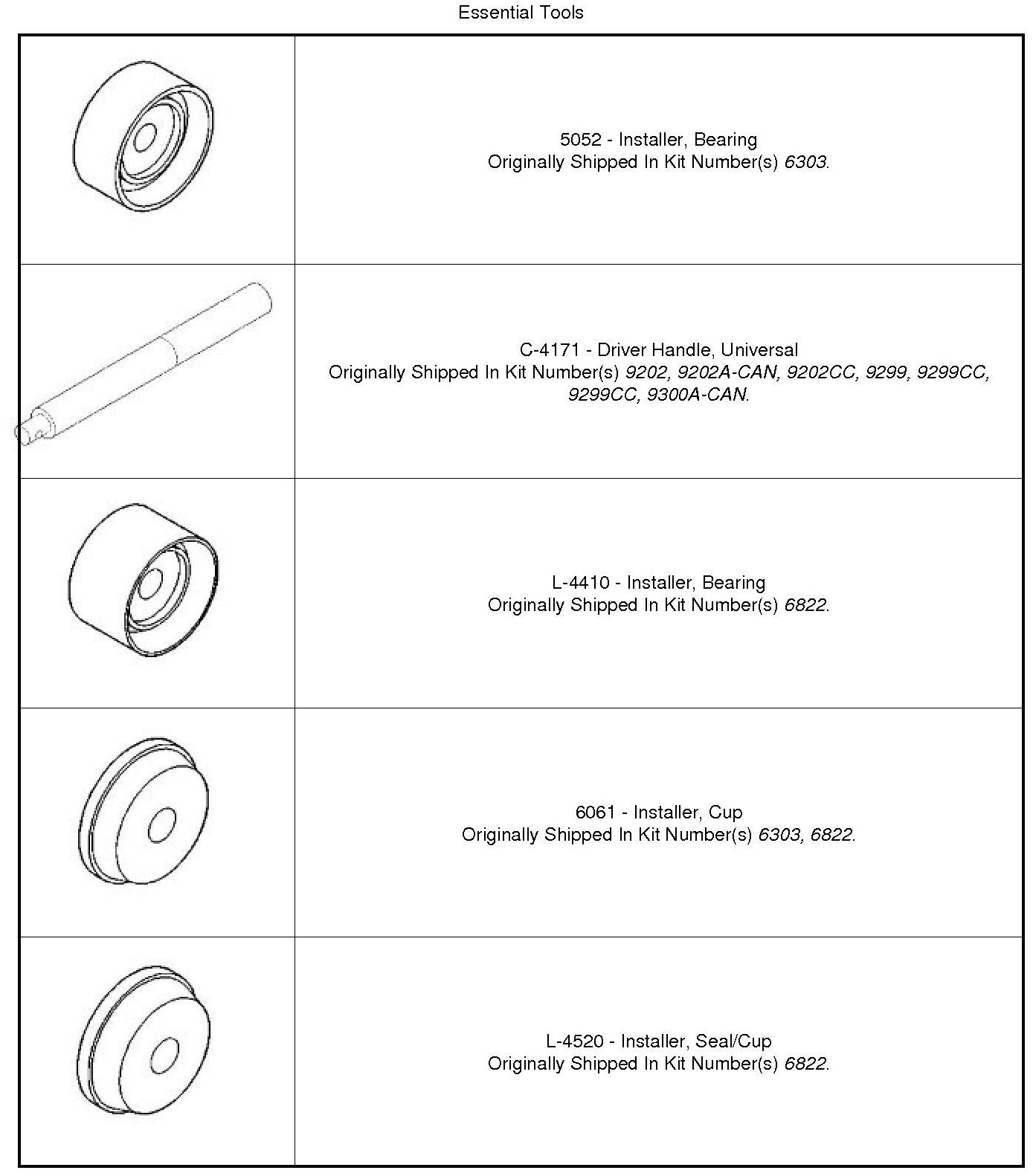

Special Tools:















NOTE: Use Mopar(R) Silicone Rubber Adhesive Sealant, or equivalent, on retainer and extension housing/adapter plate to seal to transaxle case.

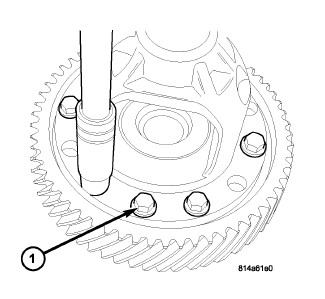

1. Position differential case to ring gear. Install ring gear-to-differential case bolts (1)(Figure 1) and draw ring gear into position. Torque bolts to 95 Nm (70 ft. lbs.).

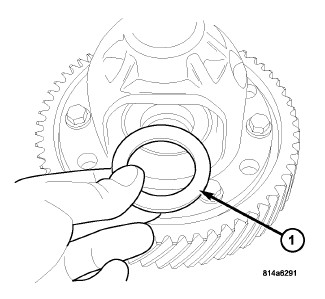

2. Install side gear thrust washers (1)(Figure 2).










3. Install differential side gears (1)(Figure 3).

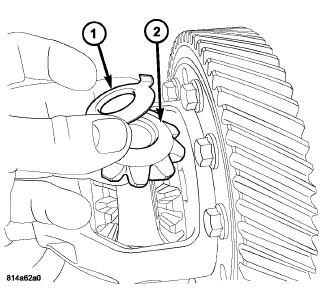

4. Install pinion gears (2)(Figure 4) and thrust washers (1) 180° apart.

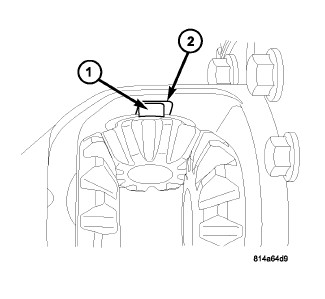

5. Rotate pinion gears into position, ensuring the anti-rotate tabs (1)(Figure 5) are located into the differential case (2).

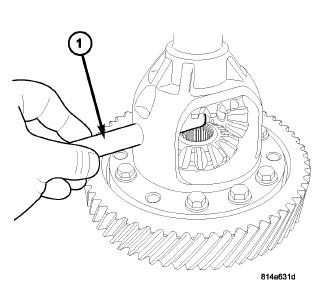

6. Install pinion shaft (1)(Figure 6).

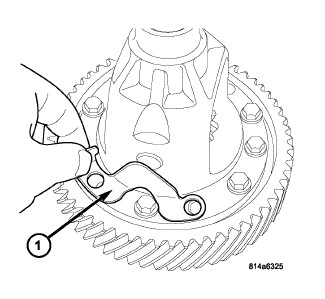

7. Install pinion shaft retainer (1)(Figure 7).

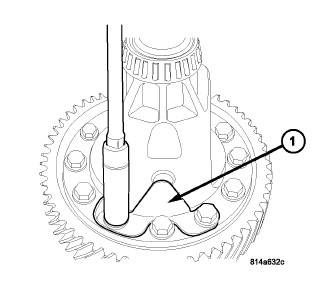

8. Install pinion shaft retainer/ring (1)(Figure 8) gear-to-differential case bolts and torque to 95 Nm (70 ft. lbs.).

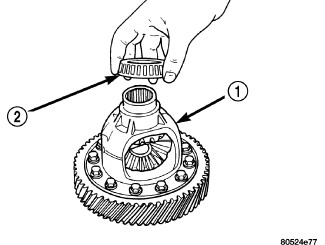

9. Position differential side bearing cone (2)(Figure 9) onto differential.

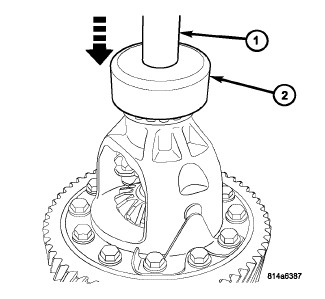

10. Using Installer (2)(Figure 10) and Handle (1), install differential bearing to differential (ring gear side).

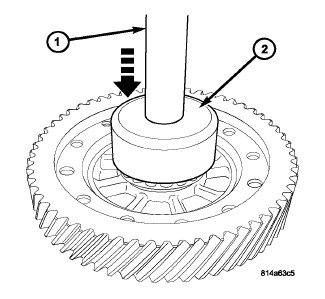

11. Using Bearing Installer (2)(Figure 11) and Handle (1), install differential bearing to differential (ring gear side).

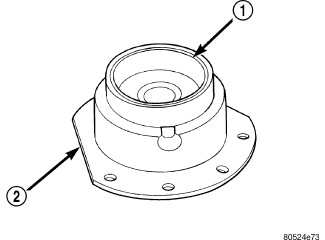

12. Using Installer and Handle , install differential bearing race to bearing retainer (2)(Figure 12).










13. Using Installer and Handle , install differential bearing cup to extension housing.
14. Measure and adjust differential bearing preload Adjustments.
15. Install differential assembly to case. Install extension housing/adapter plate and bearing retainer.

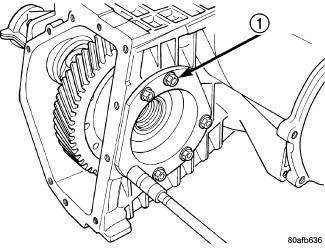

16. Install bearing retainer with a bead of Mopar(R) Silicone Rubber Adhesive Sealant and torque bolts (1)(Figure 13) to 28 Nm (250 in. lbs.).










17. Install extension housing/adapter plate with a bead of Mopar(R) Silicone Rubber Adhesive Sealant and torque bolts to 28 Nm (250 in. lbs.).

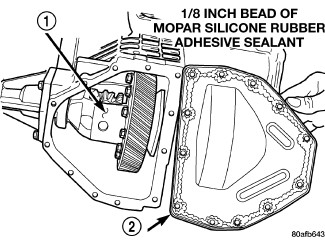

18. Install differential cover (2)(Figure 14) with a bead of Mopar(R) Silicone Rubber Adhesive Sealant and torque bolts to 28 Nm (250 in. lbs.).
