DISASSEMBLY

66. Using a suitable punch, drive out park guide bracket pivot shaft (2) plug(Figure 62).

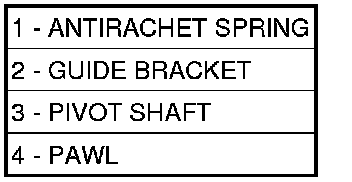

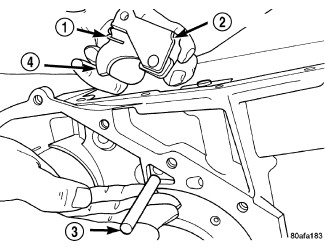

67. Using ordinary pliers, remove pivot shaft (3)(Figure 63) and guide bracket assembly (2).

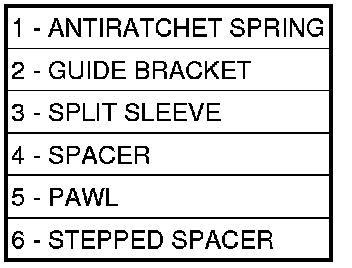

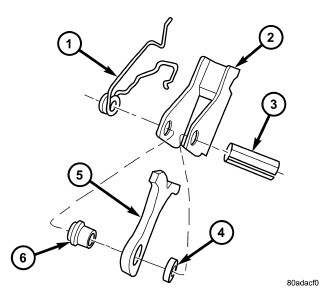

68. Inspect guide bracket (2) components for excessive wear and replace if necessary(Figure 64).

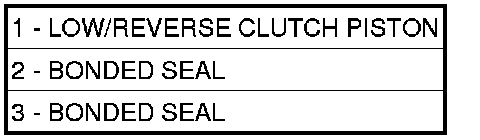

NOTE: The Low/Reverse Clutch Piston has bonded seals which are not individually serviceable. Seal replacement requires replacement of the piston assembly.

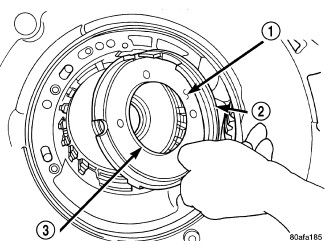

69. Remove low/reverse clutch piston (1)(Figure 65).

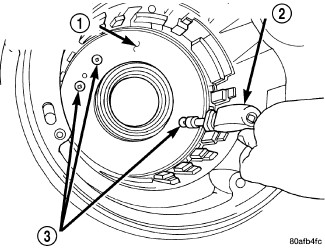

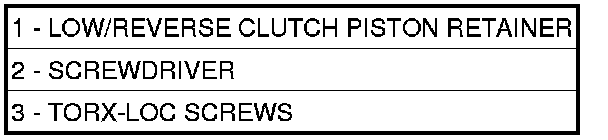

70. Remove low/reverse piston retainer-to-case screws (3)(Figure 66).

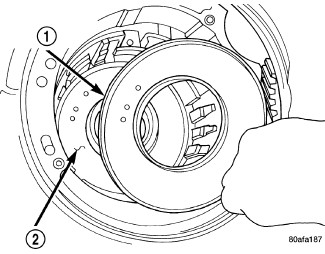

71. Remove low/reverse piston retainer (1)(Figure 67).

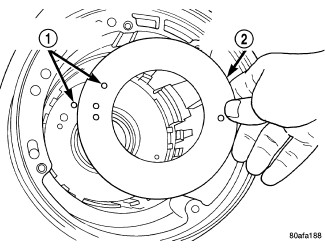

72. Remove low/reverse piston retainer-to-case gasket (2)(Figure 68).

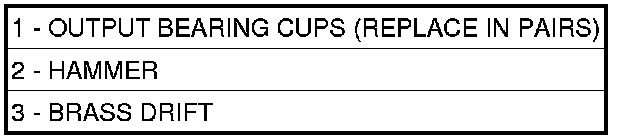

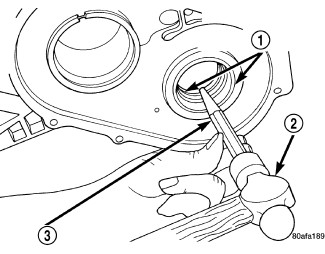

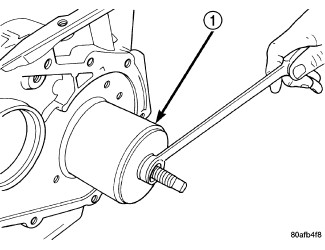

73. Using a hammer (2)(Figure 69) and suitable drift (3), drive out inner output bearing cup (1).










74. Using Remover (1)(Figure 70), remove outer output bearing cup.
