Part 2

DISASSEMBLY

35. Remove low/reverse reaction plate (1)(Figure 32).

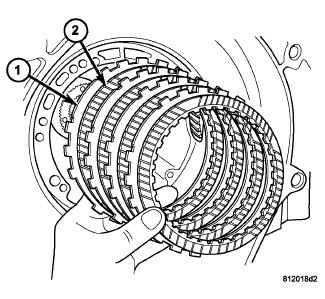

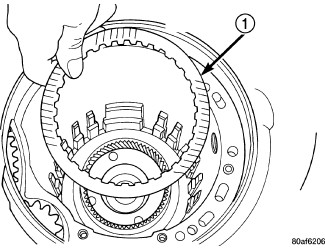

36. Remove one low/reverse clutch disc (1)(Figure 33).










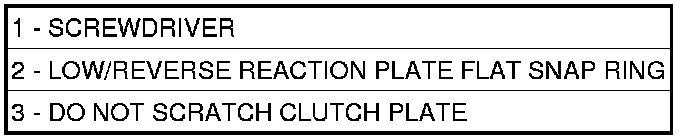

37. Remove low/reverse reaction plate snap ring (2)(Figure 34).

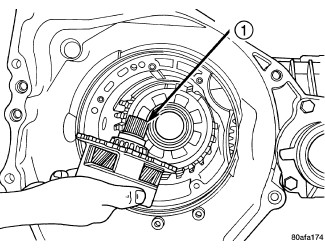

38. Remove low/reverse clutch pack(Figure 35).

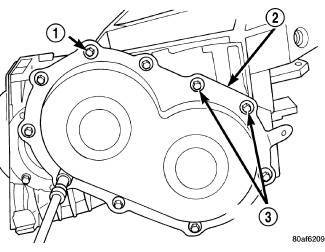

39. Remove transfer gear cover-to-case bolts (1)(Figure 36).

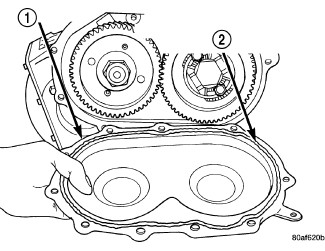

40. Remove transfer gear cover (1)(Figure 37).










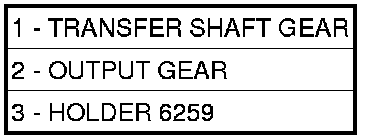

41. Install Holder (3)(Figure 38).

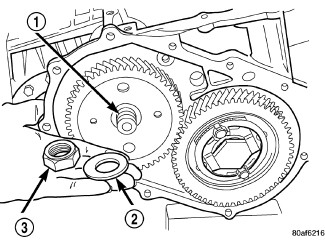

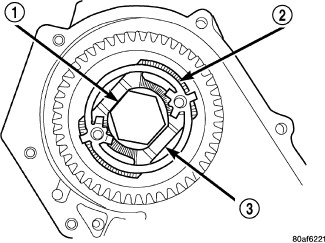

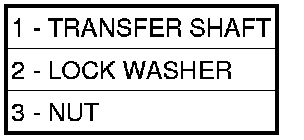

42. Remove transfer shaft gear-to-shaft nut (3)(Figure 39) and coned washer (2).

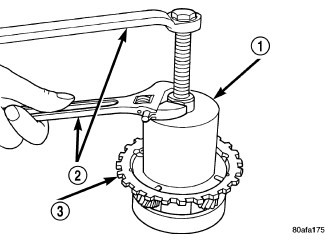

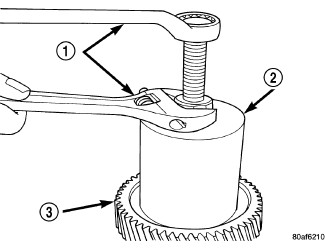

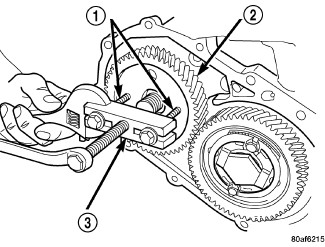

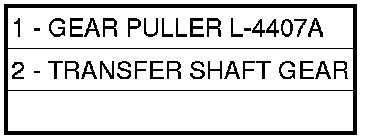

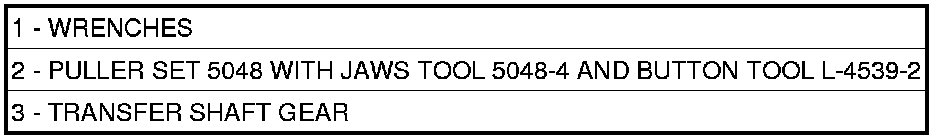

43. Using Gear Puller (1, 3)(Figure 40), remove transfer shaft gear.










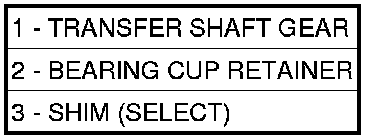

44. Remove transfer gear shim (select) (3)(Figure 41).

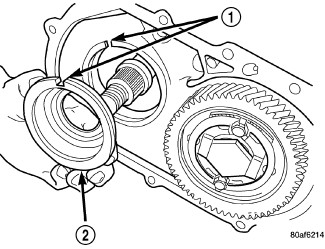

45. Remove bearing cup retainer (2)(Figure 42).










46. Remove transfer gear bearing cone using Puller Set with Jaws and Button (Figure 43).

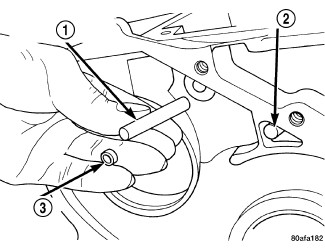

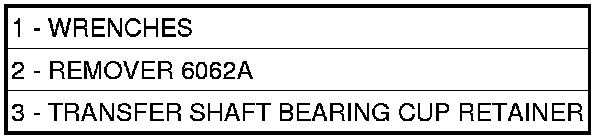

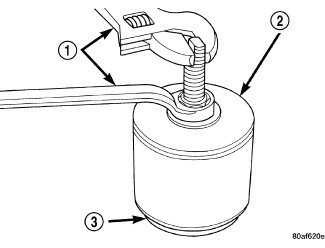

47. Remove transfer shaft bearing cup from retainer using Remover (2)(Figure 44).

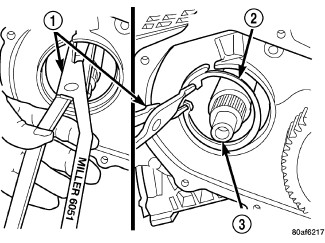

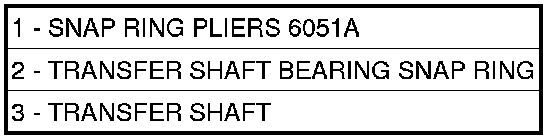

48. Using Snap Ring Pliers (1)(Figure 45), remove transfer shaft bearing snap ring (2).










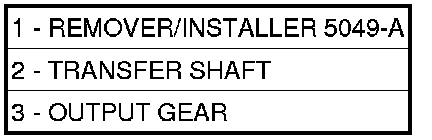

49. Using Remover/Installer (1)(Figure 46), remove transfer shaft (2) from transaxle.

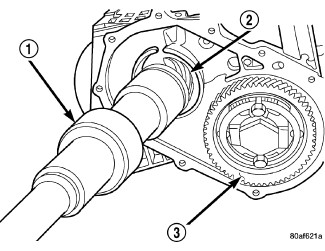

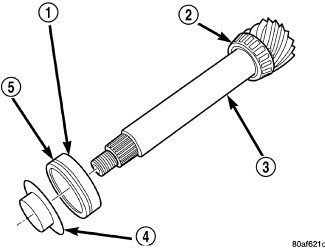

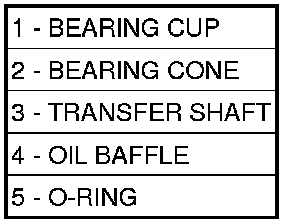

50. Slip bearing cup (1) and oil baffle (4) off of shaft (3)(Figure 47).

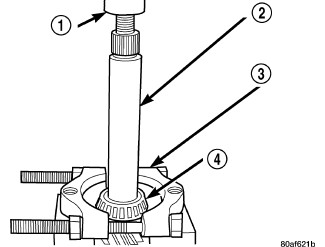

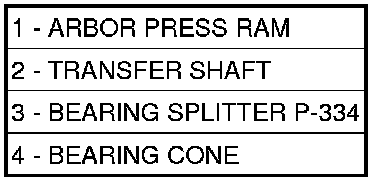

51. Using Bearing Splitter (3)(Figure 48), press transfer shaft bearing cone (4) off of shaft (2).

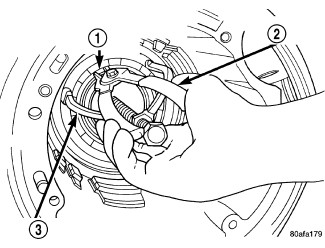

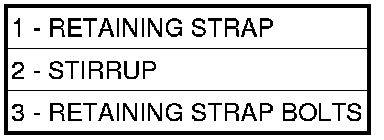

52. Bend output gear retaining strap (1)(Figure 49) ears flat to allow bolt removal.
53. Remove output shaft stirrup strap bolts (3).

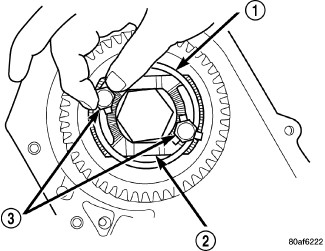

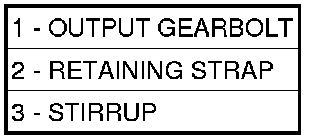

54. Remove stirrup (3)(Figure 50) and strap (2).










55. Install Holder (2)(Figure 51).

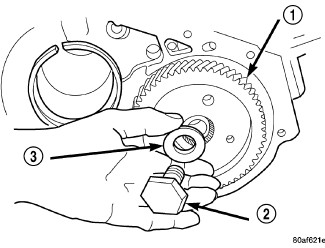

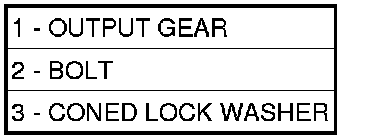

56. Remove output shaft gear-to-shaft bolt (2)(Figure 52) and washer (3).

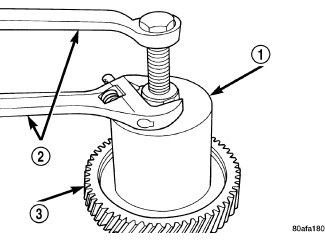

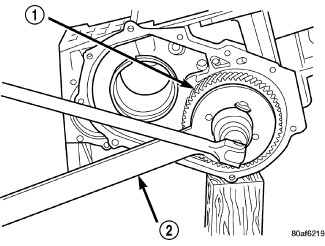

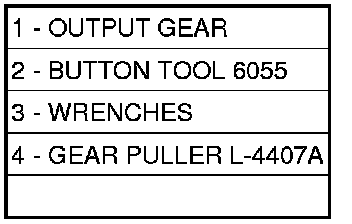

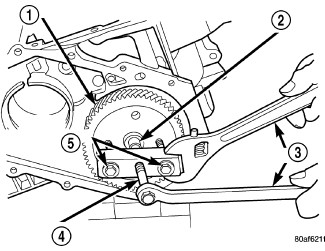

57. Using Gear Puller (4)(Figure 53), and Button (2), remove output gear (1) from shaft.

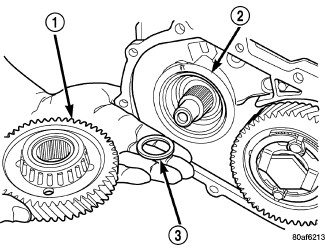

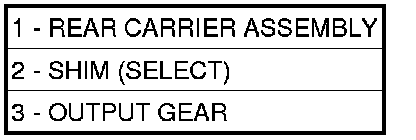

58. Remove output gear bearing shim (select) (2)(Figure 54).

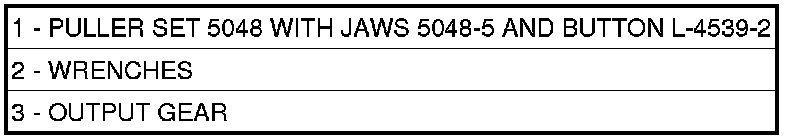

59. Using Puller Set with Jaws and Button (1)(Figure 55), remove output gear bearing cone.










60. Remove rear carrier assembly (1)(Figure 56) from transaxle.










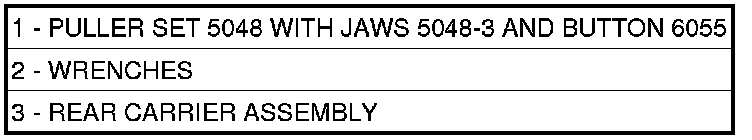

61. Remove rear carrier assembly (3) bearing cone using Puller Set with Jaws and Button (Figure 57).

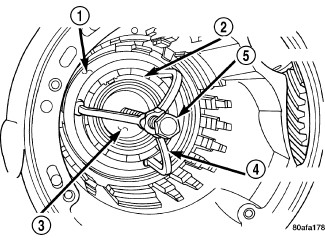

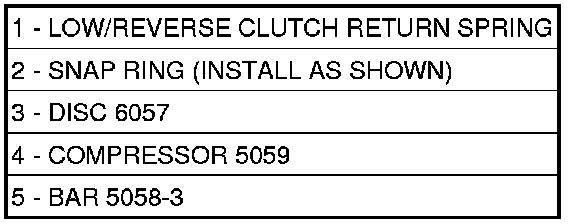

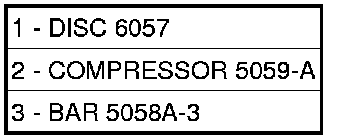

62. Assemble Low/reverse spring Disc (1)(Figure 58), Compressor (2) and Bar (3).










63. Install low/reverse spring compressor Disc (1)(Figure 59), Compressor (2) and Bar (3).










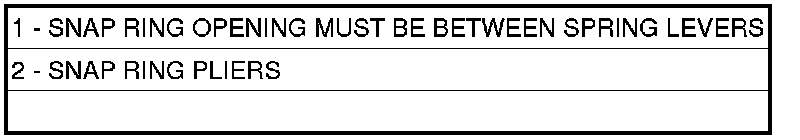

64. Compress low/reverse piston return spring and remove snap ring (1)(Figure 60).










65. Remove low/reverse Spring Compressor and low reverse piston return spring (1)(Figure 61).
