Oil Pump Seal - Installation






INSTALLATION

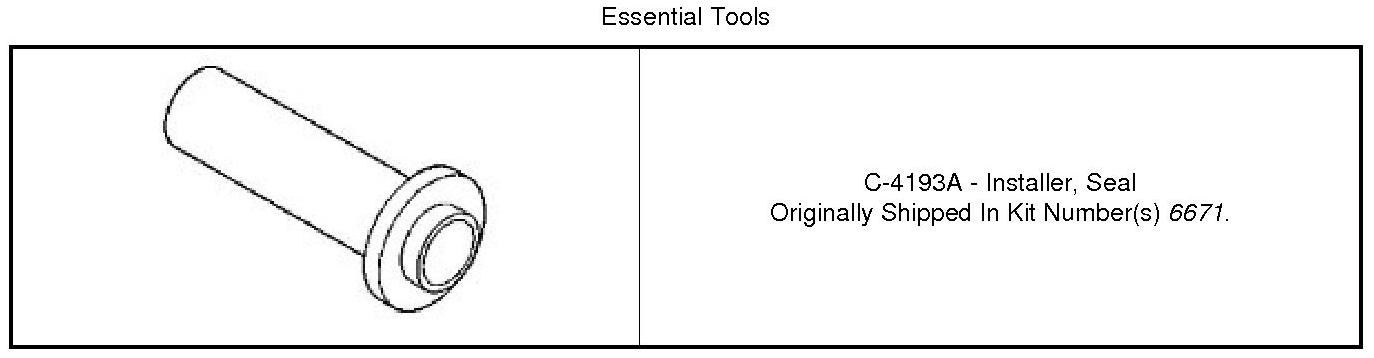

Special Tools:

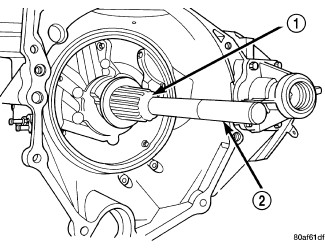

1. Using Seal Installer (1)(Figure 1), install oil pump seal.
2. Install transaxle to vehicleInstallation.
