Outer Tie Rod End

OUTER TIE ROD END

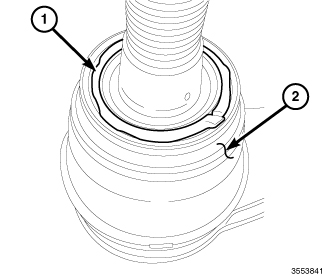

NOTE: If a new tie rod end is to be installed, make sure the boot (2) is properly lubricated.

1. Clean all old grease and debris from the boot (2) with a clean cloth.
2. Apply outer tie rod grease P/N 68088623AA (1) to the tie rod end boot (2).





3. If it is not already installed, install the jam nut on the inner tie rod threads. Thread the jam nut down the inner tie rod far enough to allow for outer tie rod installation.
4. Thread the outer tie rod onto the inner tie rod approximately the same amount of revolutions as the original was installed. Do not tighten the jam nut at this time.
5. Install the outer tie rod end (6) into the hole in the knuckle (2) arm. Start a NEW tie rod mounting nut (3) onto the stud. While holding the tie rod end stud with a wrench, tighten the nut with a wrench or crowfoot wrench. Tighten the nut to 85 Nm (63 ft. lbs.).





6. Install the tire and wheel assembly (1). Tires And Wheels - Installation Install and tighten wheel mounting nuts (3) to 135 Nm (100 ft. lbs.).
7. Lower the vehicle.
8. Adjust the front wheel toe setting. Wheel Alignment Procedures.
9. Tighten the tie rod jam nut to 75 Nm (55 ft. lbs.) once wheel toe is set.
