Driver Air Bag - Disassembly
DISASSEMBLY
CHRYSLER
WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
WARNING: To avoid serious or fatal injury, service of this unit should be performed only by Chrysler-trained and authorized dealer service technicians. Failure to take the proper precautions or to follow the proper procedures could result in accidental, incomplete, or improper airbag deployment and possible occupant injuries.
WARNING: To avoid serious or fatal injury, use extreme care to prevent any foreign material from entering the Driver AirBag (DAB), or becoming entrapped between the DAB cushion and the DAB trim cover. Failure to observe this warning could result in occupant injuries upon airbag deployment.
WARNING: To avoid serious or fatal injury, the Driver AirBag (DAB) trim cover must never be painted. Replacement trim covers are serviced in the original colors. Paint may change the way in which the material of the trim cover responds to an airbag deployment. Failure to observe this warning could result in occupant injuries upon airbag deployment.
NOTE: The following procedures can be used to replace the Driver AirBag (DAB) trim cover for service of cosmetic damage issues. If the DAB is ineffective or deployed, the entire DAB and trim cover must be replaced as a unit. The trim cover will be irreparably damaged if it is removed from the DAB housing and MUST be replaced with a new trim cover.
1. Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge before further service.
2. Remove the Driver AirBag (DAB) from the steering wheel. Driver Air Bag - Removal.
3. Place the DAB on a suitable clean and dry work surface.

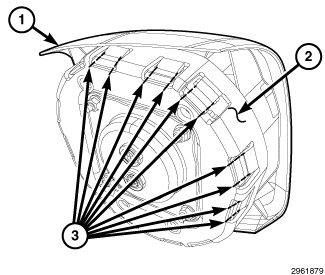

4. Using a sharp utility knife, carefully cut through the lower edge of each of the twelve trim cover (1) windows at the cut lines (3) on each side of the twelve inward pointing hooks of the airbag housing (2). Use extreme care to prevent any scraps from entering and becoming lost within the airbag housing or cushion.
5. With all of the windows cut open, separate the remainder of the trim cover from the DAB housing by pulling it away from the top of the housing around the perimeter. Discard the removed trim cover.
DODGE
WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
WARNING: To avoid serious or fatal injury, service of this unit should be performed only by Chrysler-trained and authorized dealer service technicians. Failure to take the proper precautions or to follow the proper procedures could result in accidental, incomplete, or improper airbag deployment and possible occupant injuries.
WARNING: To avoid serious or fatal injury, use extreme care to prevent any foreign material from entering the Driver AirBag (DAB), or becoming entrapped between the DAB cushion and the DAB trim cover. Failure to observe this warning could result in occupant injuries upon airbag deployment.
WARNING: To avoid serious or fatal injury, the Driver AirBag (DAB) trim cover must never be painted. Replacement trim covers are serviced in the original colors. Paint may change the way in which the material of the trim cover responds to an airbag deployment. Failure to observe this warning could result in occupant injuries upon airbag deployment.
NOTE: The following procedures can be used to replace the Driver AirBag (DAB) trim cover for service of cosmetic damage issues. If the DAB is ineffective or deployed, the entire DAB and trim cover must be replaced as a unit.
1. Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge before further service.
2. Remove the Driver AirBag (DAB) from the steering wheel. Driver Air Bag - Removal.
3. Place the driver airbag on a suitable clean and dry work surface with the trim cover (2) facing down. If the trim cover will be reused, be certain to take the proper precautions to prevent the trim cover from receiving cosmetic damage during the following procedures.

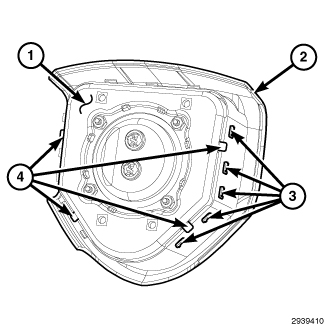

4. Disengage each of the thirteen hooks (3) of the airbag housing (1) from the thirteen windows in the vertical walls of the trim cover receptacle, one wall at a time. Start by disengaging the upper wall, then do each of the two side walls, and finish with the lower wall. To disengage the hooks, use hand pressure to push outward on the upper edge of the receptacle wall far enough to clear the locating tab (4) on the airbag housing, at the same time push the adjacent edge of the airbag housing firmly and evenly downward into the trim cover receptacle.
5. With all of the hooks disengaged, lift the housing, inflator, and cushion as a unit from the receptacle on the back of the driver airbag trim cover.
