Door Module - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the trim panel from the inside of the front door. Front Door Trim Panel - Removal.

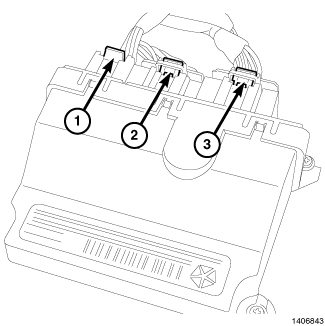

3. Beginning with the black 10-way electrical connector (1), then the brown 20-way electrical connector (2) followed by, if the vehicle is so equipped, the black 12-way electrical connector (3) from the connector receptacles of the door control module.
4. Remove the four screws that secure the door control module to the front door hardware module carrier.
5. Remove the door control module from the door hardware module carrier.
