Throttle Body - Installation

2.4L

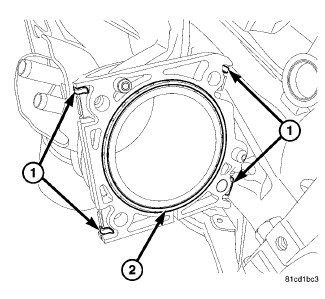

1. Install a new intake manifold to throttle body gasket (2), if replacement was necessary.
2. Install four new j-nuts (1), if replacement was necessary.






CAUTION: DO NOT OVER TORQUE. Over tightening can cause damage to the throttle body, gaskets, bolts and/or the intake manifold.

3. Install throttle body (4) to intake manifold.
4. Install throttle body support bracket (3), bolt (2) and hand tighten.
5. Install four bolts (1) and hand tighten.

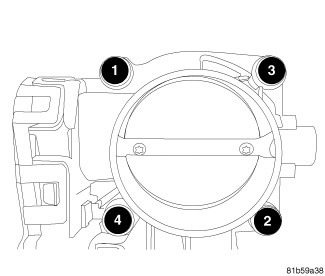

CAUTION: The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.

6. Tighten the bolts in a mandatory torque criss - cross pattern sequence to 7.5 Nm (65 in. lbs.).
7. Tighten the bracket bolt to 25 Nm (18 ft. lbs.).

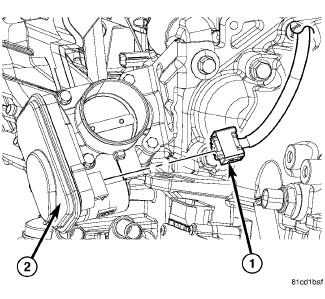

8. Connect the electrical connector (1) to the throttle body (2).
9. Install the clean air hose and tighten the clamps to 4 Nm (35 in. lbs.).
10. Install the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
11. Use a scan tool and clear all fault codes then perform the ETC RELEARN function.
