Fuel Injector - Removal

2.4L

WARNING: Risk of injury to eyes and skin from contact with fuel. Wear protective clothing and eye protection. Risk of poisoning from inhaling and swallowing fuel. Pour fuel only into appropriately marked and approved containers. Failure to follow these instructions may result in possible serious or fatal injury.





1. Release the fuel pressure, refer to the fuel pressure release procedure.
2. Disconnect and isolate the negative battery cable.
3. Disconnect the electrical connectors from the fuel injectors.

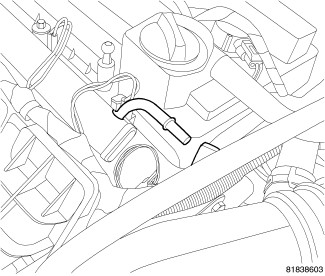

4. Fuel line connection at fuel rail.





5. Remove the fuel line from the fuel rail.





6. Remove the wire harness from the fuel rail mounting studs.





7. Remove the two bolts from the fuel rail at the lower manifold.





8. Remove the fuel rail.

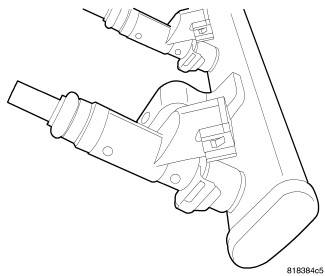

9. Remove the clip holding the fuel injector to the fuel rail.





10. Remove the fuel injector clip and fuel injector from the fuel rail.
