Positive Crankcase Ventilation (PCV) Valve - Installation

2.4L





1. Lubricate the O-ring on the valve.

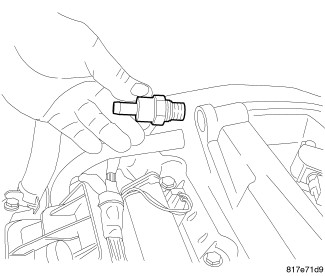

2. Install the PCV valve and tighten the valve to 8.1 Nm (72 in. lbs.).

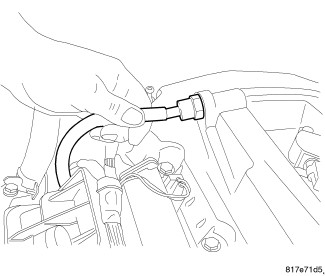

3. Install the hose.
4. Install engine cover.
