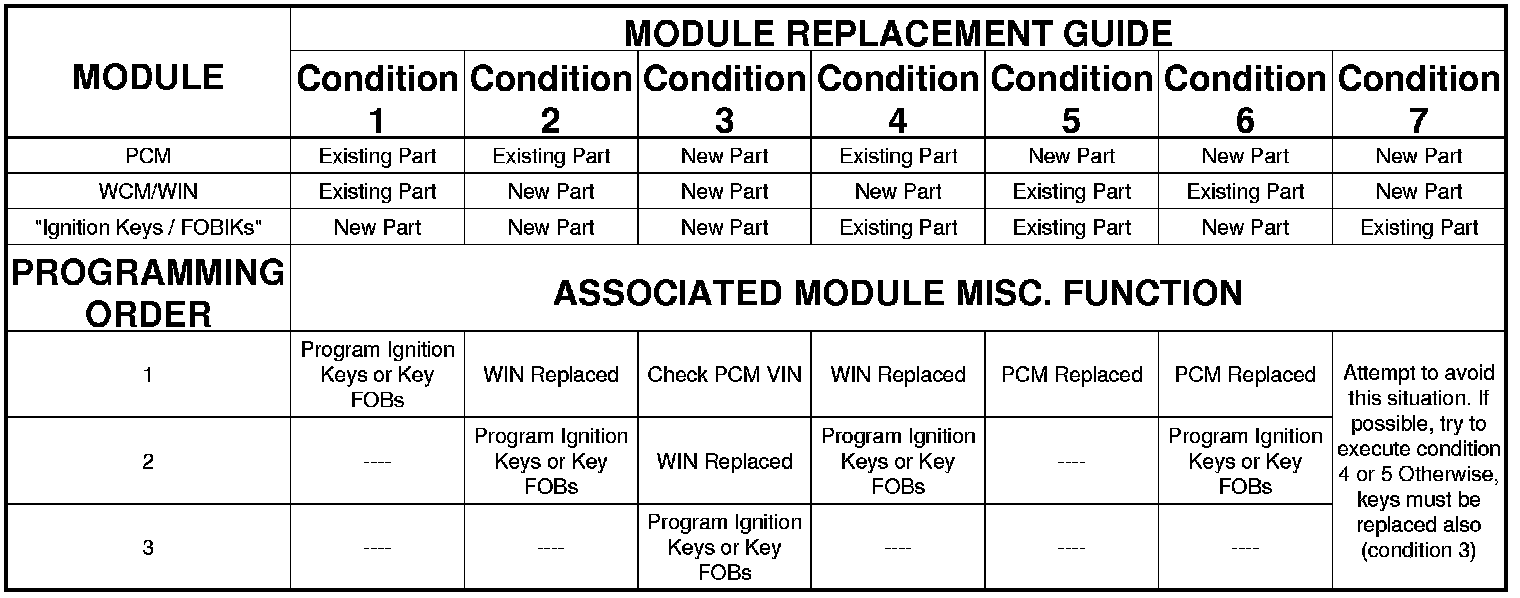

MODULE/PROGRAMMING ORDER REPLACEMENT GUIDE
Match the module row with the condition that applies, after module replacement follow the chart down and program the modules in the chart order.
