License Plate Lamp Bulb - Installation

BULB

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

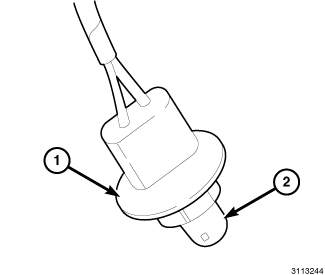

1. Align the base of the license plate lamp bulb (2) with the socket (1).
2. Push the bulb straight into the socket until the base is firmly seated.
3. On Chrysler models, reinstall the license plate lamp into the deck lid handle and light bar. . License Plate Lamp - Installation
4. On Dodge models, reinstall the license plate lamp into the rear fascia. . License Plate Lamp - Installation
5. Reconnect the battery negative cable.
