Fog Lamp Bulb - Installation

BULB

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

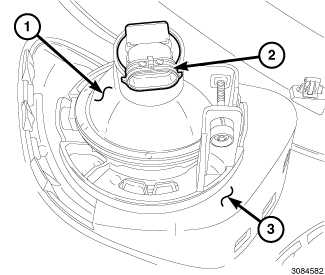

1. From behind the front fascia fog lamp bezel (3), align the front fog lamp bulb with the keyed opening on the back of the front fog lamp housing (1).
2. Insert the bulb into the housing until the base is firmly seated.
3. Rotate the bulb clockwise about 30 degrees to lock it into place. The bulb connector receptacle (2) should be pointed straight downward.
4. Reconnect the engine compartment wire harness connector to the bulb connector receptacle.
5. Reinstall the front lower fascia closeout panel. Front Lower Fascia Closeout - Installation.
6. Lower the vehicle.
7. Reconnect the battery negative cable.
