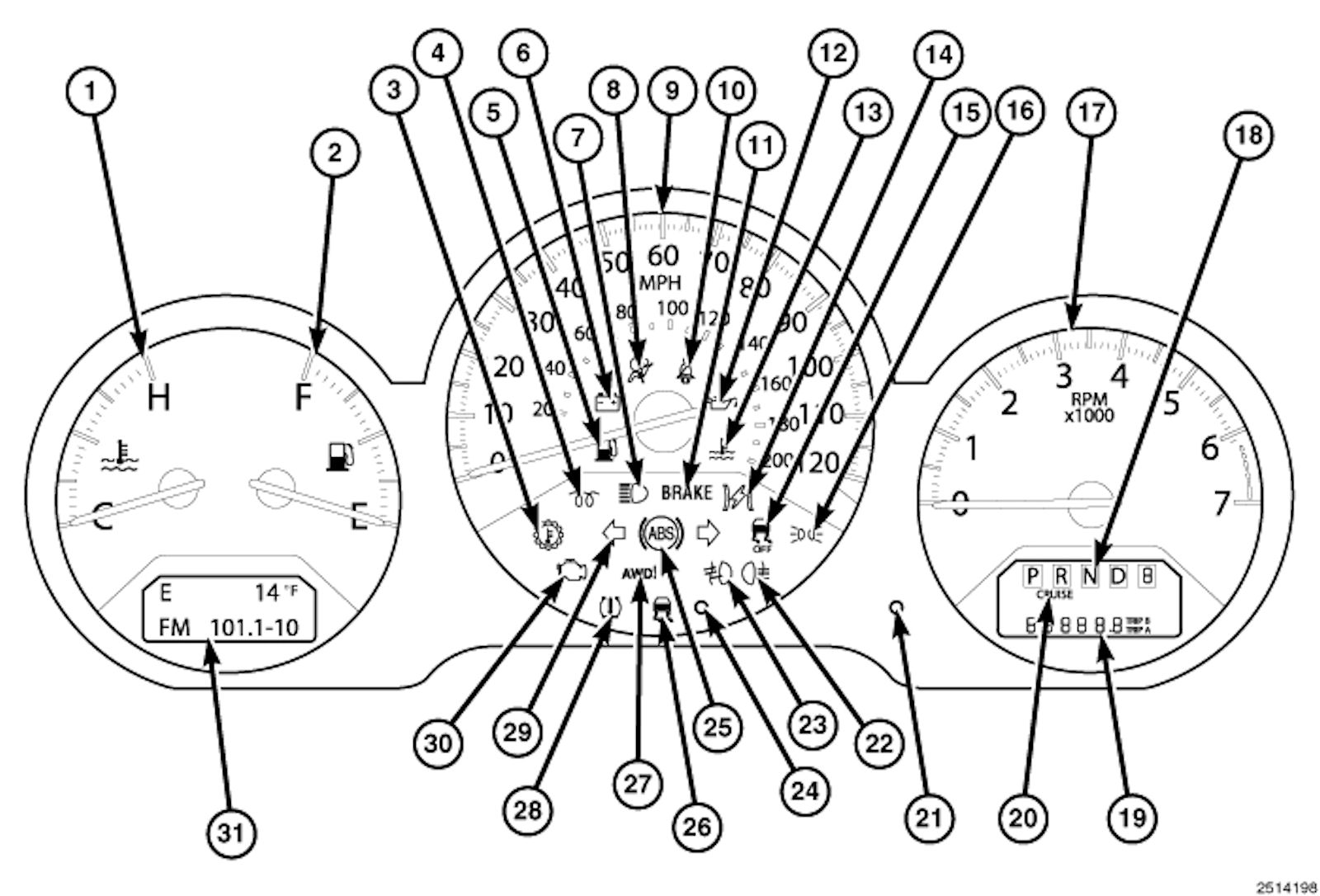

Instrument Cluster / Carrier: Locations

The CCN includes provisions for the following indicators:

Airbag Warning Indicator (8)
Antilock Brake System (ABS) Warning Indicator (25)
Park Brake/Brake Indicator (11)
Charging System Warning Indicator (6)
Cruise Indicator (20)
Electronic Stability Control (ESC) System OFF Indicator (15)
Electronic Throttle Control (ETC) Indicator (14)
High Beam Indicator (7)
High Engine Temperature Warning Indicator (13)
Low Fuel Indicator (5)
Malfunction Indicator Lamp (MIL) (30)
Odometer/Trip Odometer A/B Select Button (21)
Oil Pressure Warning Indicator (12)
Seatbelt Indicator (10)
Security Indicator (24)
Tire Pressure Monitor System Indicator (28)
Electronic Stability Control (ESC) System Activation Indicator Light (26)
Transmission Over Temperature Indicator (3)
Turn Signal (Right and Left) Indicators (29)
