A/C Condenser - Description

DESCRIPTION

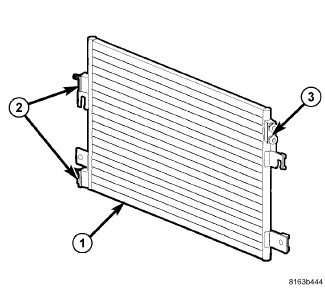

The A/C condenser (1) is located in the front of the engine compartment behind the grille. The A/C condenser is a heat exchanger that allows the high-pressure refrigerant gas being discharged by the A/C compressor to give up its heat to the air passing over the condenser fins, which causes the refrigerant to cool and change to a liquid state.

The A/C condenser is equipped with tapping blocks for the A/C discharge and liquid lines (2), and the integral automatic transmission cooler (3).
