Instrument Panel

INSTRUMENT PANEL

Special Tools:






WARNING: Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE: Take the proper precautions to protect the instrument panel cover and the center bezel from cosmetic damage while performing these procedures.

NOTE: Dodge model shown. Chrysler model similar.





1. If servicing a center air outlet (1 and 3):
- Remove the center bezel Instrument Panel Console Bezel - Removal.
- Using Trim Stick or equivalent, disengage the four retaining clips (4 and 5) that secure each air outlet to the center bezel (2) and remove the outlet.

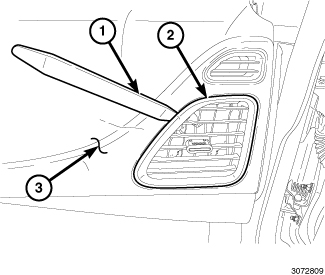

2. If servicing an outboard air outlet (2), use Trim Stick (1) or equivalent to disengage the five retaining clips that secure each air outlet to the instrument panel cover (3) and remove the outlet.
