Instrument Panel

INSTRUMENT PANEL

NOTE: Take the proper precautions to protect the instrument panel cover and the center bezel from cosmetic damage while performing these procedures.

NOTE: Dodge model shown. Chrysler model similar.

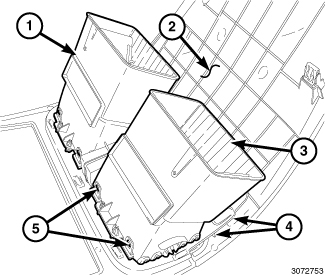

1. If servicing a center air outlet (1 and 3):
- Position the outlet to the center bezel (2) and engage the four plastic retaining clips (4 and 5).
- Install the center bezel Instrument Panel Console Bezel - Installation.

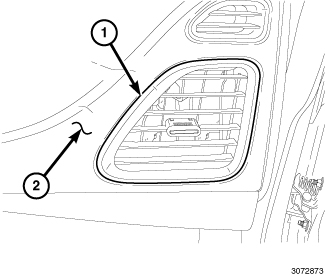

2. If servicing an outboard air outlet (1), position the outlet to the instrument panel cover (2) and engage the five metal retaining clips.
