Front Crankshaft Oil Seal - Removal

REMOVAL

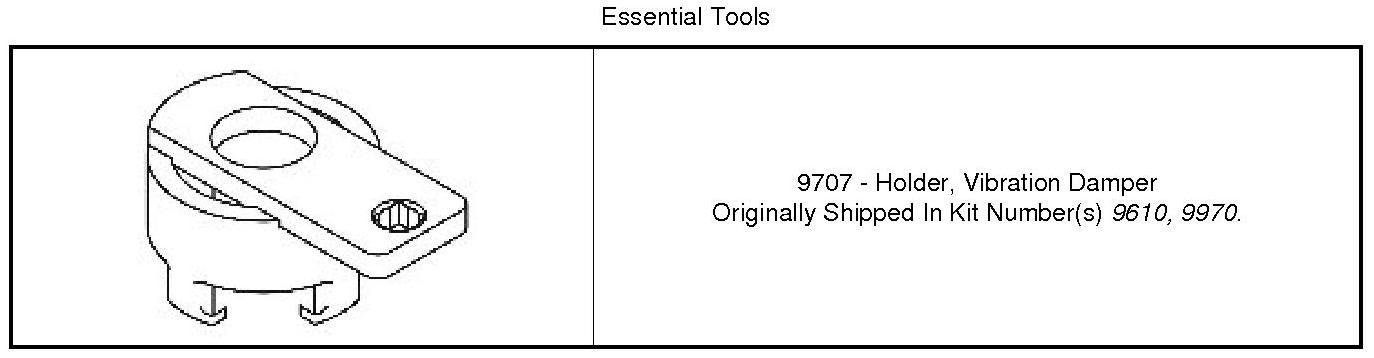

Special Tools:










1. Remove accessory drive belt.

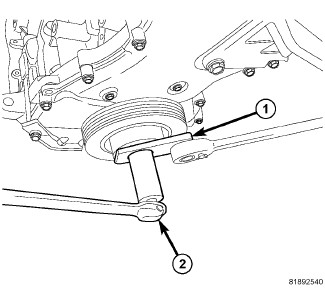

2. Install damper holder (1) and remove damper retaining bolt.
3. Pull damper off crankshaft.

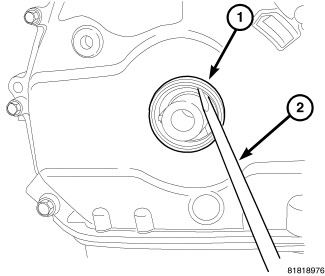

4. Remove front crankshaft oil seal (1) by prying out with a screw driver (2). Be careful not to damage the cover seal surface.
