Left

REMOVAL





1. Remove the air cleaner body (1) Air Cleaner Body - Removal.
2. Disconnect and isolate the negative battery cable.
3. Remove the PCM and PCM mounting bracket Powertrain Control Module - Removal.





4. Support the transaxle with a suitable jack.

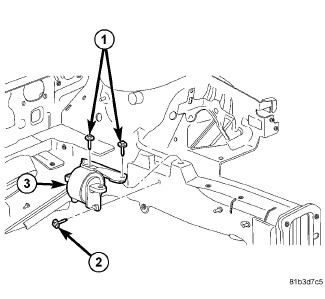

5. Remove the mount to transaxle bolts (2).
6. Remove the left mount to frame rail fasteners (4).





7. Lower the transaxle to gain access to the mount to frame rail fastener (2).
8. Remove the mount isolator (3).
