Accessory Drive Belt Tensioner - Installation






2.4L

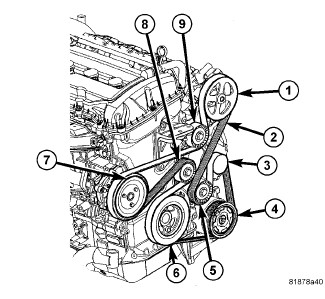

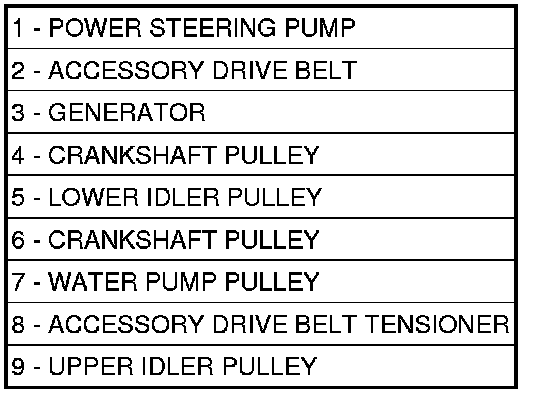

1. Position accessory drive belt tensioner (8) and install mounting bolt (1). Tighten bolt (1) to 24 Nm (212 in. lbs.).
2. Install accessory drive belt Serpentine Accessory Drive Belt - Installation.
3. Install belt splash shield
4. Lower vehicle.
