Engine Cooling Radiator - Removal

REMOVAL

1. Disconnect negative cable from auxiliary jumper terminal.
2. Remove engine cover.
3. Remove air box assembly Air Cleaner Body - Removal.
4. Recover A/C system Refrigerant System Recovery.

WARNING: Do not remove pressure cap or any hose with the system hot and under pressure because serious burns from coolant can occur.

5. Drain cooling system Service and Repair.
6. Remove the front bumper facia Front Bumper Fascia - Removal.
7. Remove under belly pan.
8. Remove front bottom splash shield.

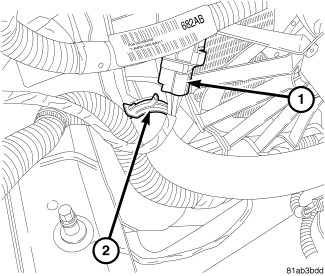

9. Remove upper (2) and lower radiator hoses at radiator.
10. Disconnect radiator fan electrical connector (1).










11. Remove the cooling fan assembly Cooling Fan - Removal.
12. Disconnect both A/C lines at condenser/cooler.
13. Remove transmission oil cooler tubes support bracket bolt at left side of radiator (2).

CAUTION: Plastic tanks, while stronger than brass are subject to damage by impact, such as wrenches.

14. Remove the two torx screws located on the upper radiator support that hold the upper radiator mounting brackets.
15. Tilt the top of the radiator rearward so the mounting brackets slide out of the upper core support.
16. Remove radiator/condenser assembly by lifting the assembly out of the vehicle between the engine and the core support.
17. Separate the A/C condenser from the radiator.
