Cooling System - Description

DESCRIPTION

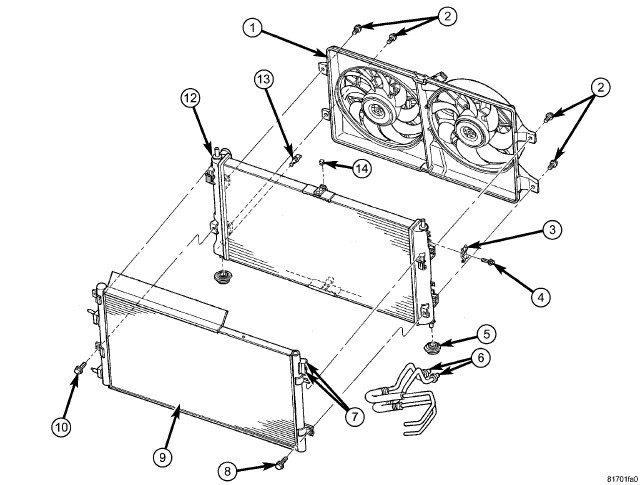

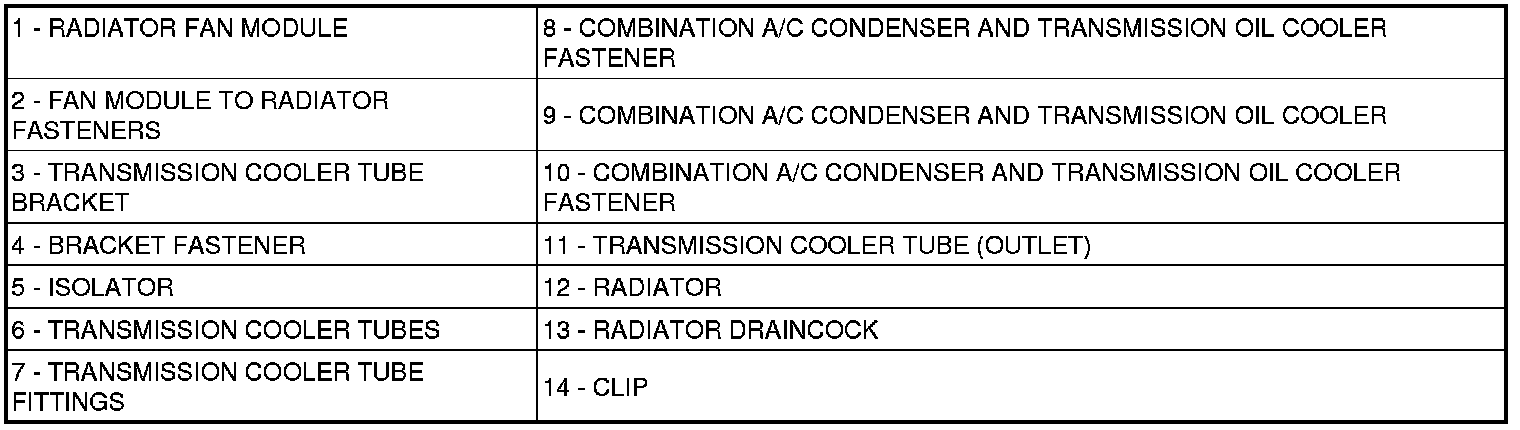

Figure 1 - Cooling Module - Exploded View





The cooling system consists of an engine cooling module, thermostat, non-pressure coolant recovery container or pressurized coolant recovery container (3.6L), coolant, hoses, and a water pump to circulate the coolant. The engine cooling module consists of a radiator, electric fans, shroud, transmission oil cooler, and air conditioning condenser.
