Heated Seat Switch - Description

DESCRIPTION

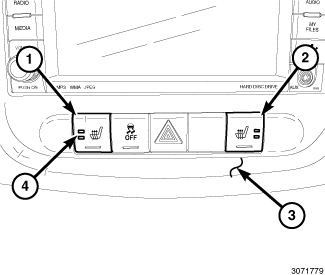

The front heated seat switches (1 and 2) are momentary contact push button type switches located in the accessory switchbank, in the instrument panel center bezel (3). These switches allow the driver and front seat passenger to select from two different levels of electrical seat heating (high and low). Amber Light Emitting Diodes (LEDs) indicator lamps (4) in each switch illuminate to indicate the level of heat in use: Two LEDs illuminate for high, one for low, and none for off. Pressing a heated seat switch once will select high-level heating. Pressing the same switch a second time will select low-level heating. Pressing the switch a third time will shut off the heating elements in the seat.
