Sedan

INSTALLATION

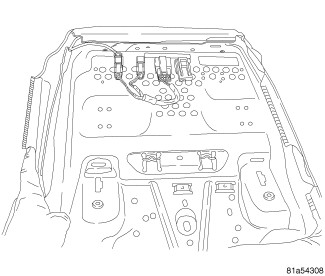

1. Position the seat cover (3) on the cushion foam while being careful not to damage the heating element (2) and connector (1), if equipped.
2. Align the seat cover with foam alignment indentations
3. Install the hog rings to secure the cover to the seat cushion foam.





4. Install the seat cushion foam and cover to the pan.
5. Engage the J-hook attaching the seat cover to the seat cushion pan.
6. Install the seat wiring harness to the seat pan.
7. Connect the heated seat connector, if equipped.

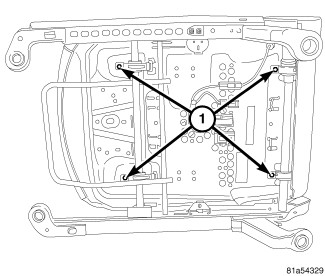

8. Install the seat cushion bolts (1). Tighten to 11 Nm (8 ft.lbs.).
9. Install the seat back to the seat frame.Seat Back Cover - Installation.
10. Install the seat to the vehicle.Seat - Installation.
