Headrest Sleeve - Installation

INSTALLATION

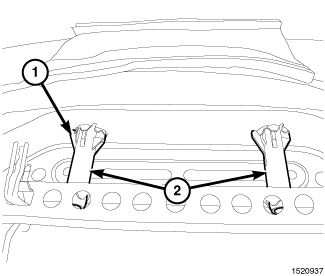

1. Install the headrest sleeves ensuring proper alignment.
2. Install the black foam under the seat back cover.
3. Engage the J-hooks securing the seat back cover to the frame.
4. Install the two lower push-pins securing the seat cover.





5. Remove the spring retainers from the seat back frame and install to the seat back cover panel.
6. Install the seat back cover panel engaging the spring clip retainers.
7. Install the seat back to the seat frame. Front Seat Back Recliner - Installation.
8. Install the seat to the vehicle.Seat - Installation.
