Sedan Front Seats
DESCRIPTION
WARNING: Discard and replace the seat back bolts with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

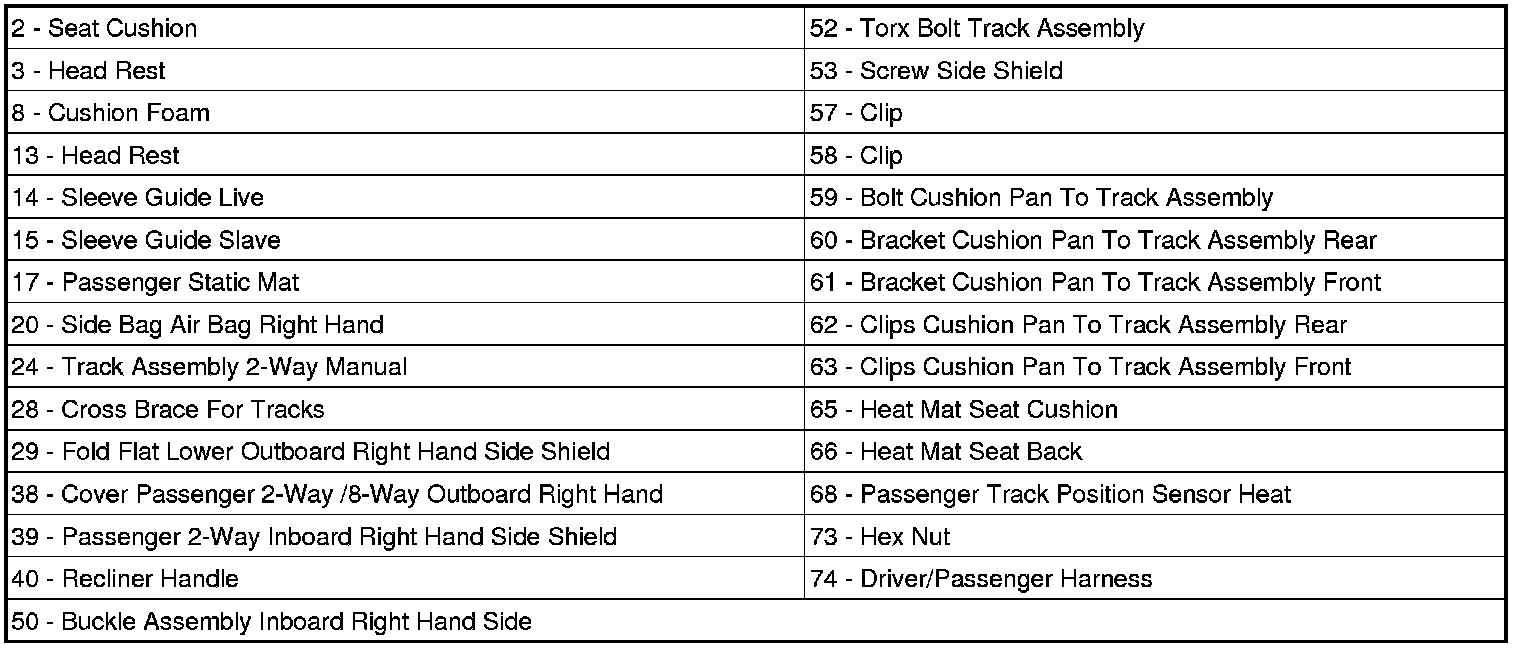

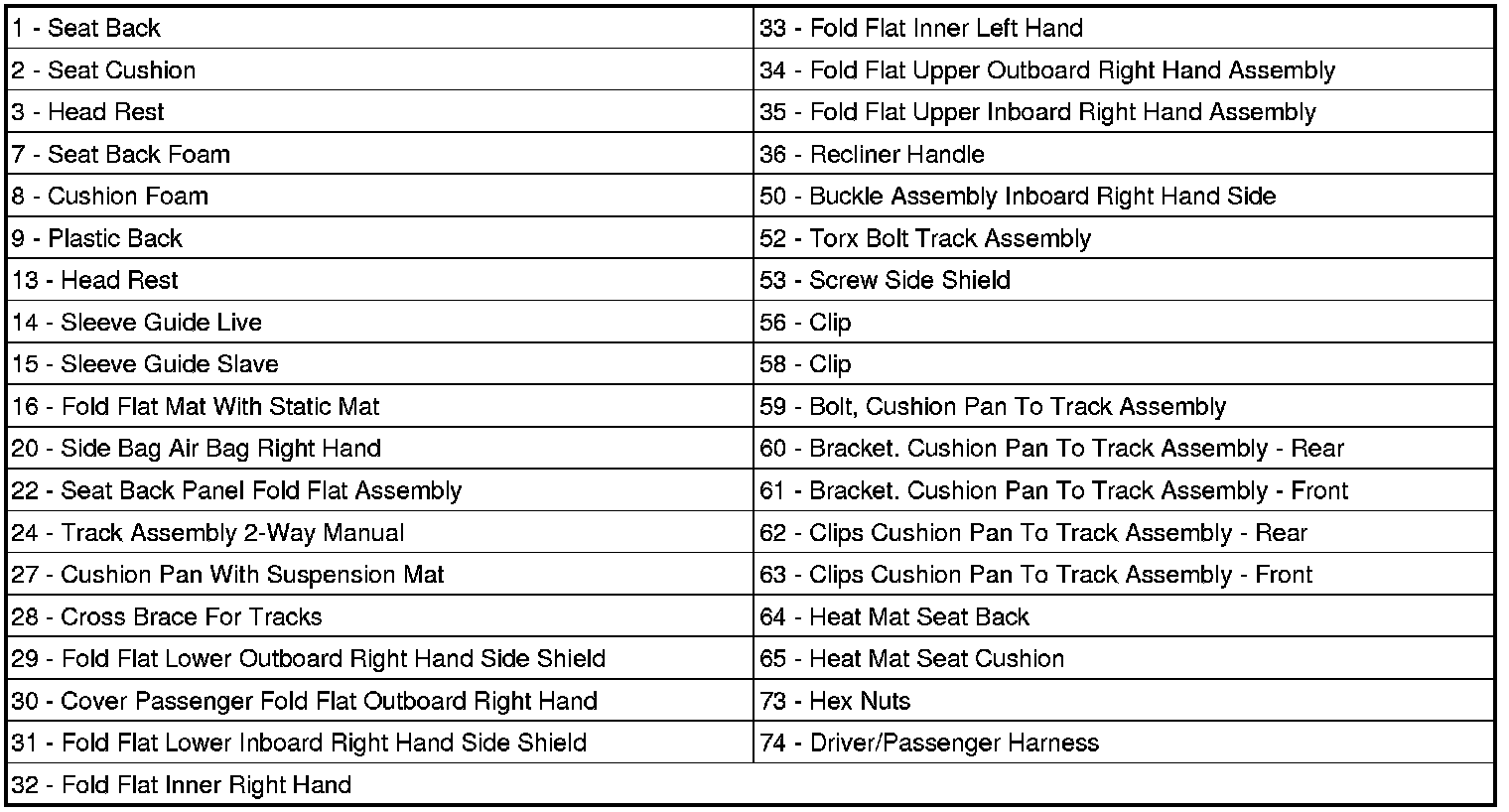

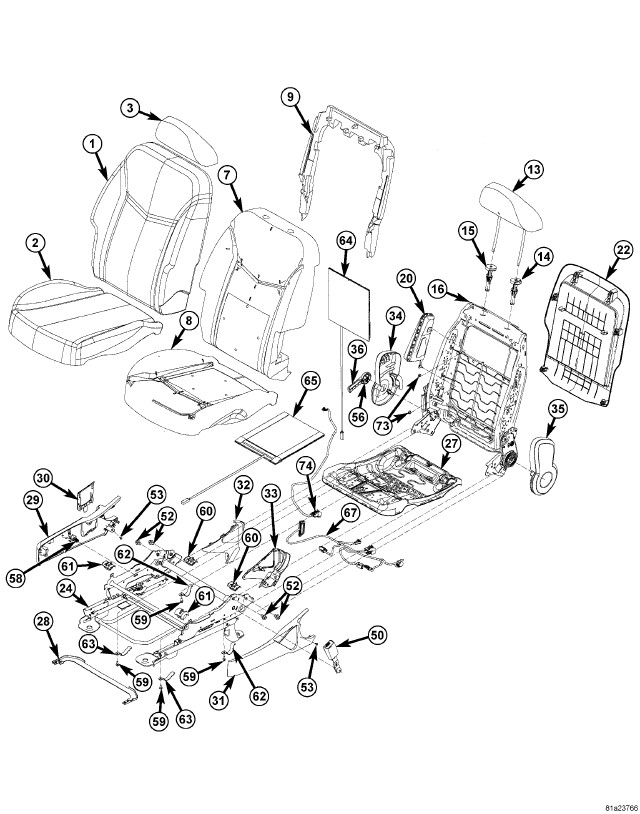

PASSENGER 2-WAY FOLD FLAT SEAT BREAKDOWN
WARNING: Discard and replace the seat back bolts with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

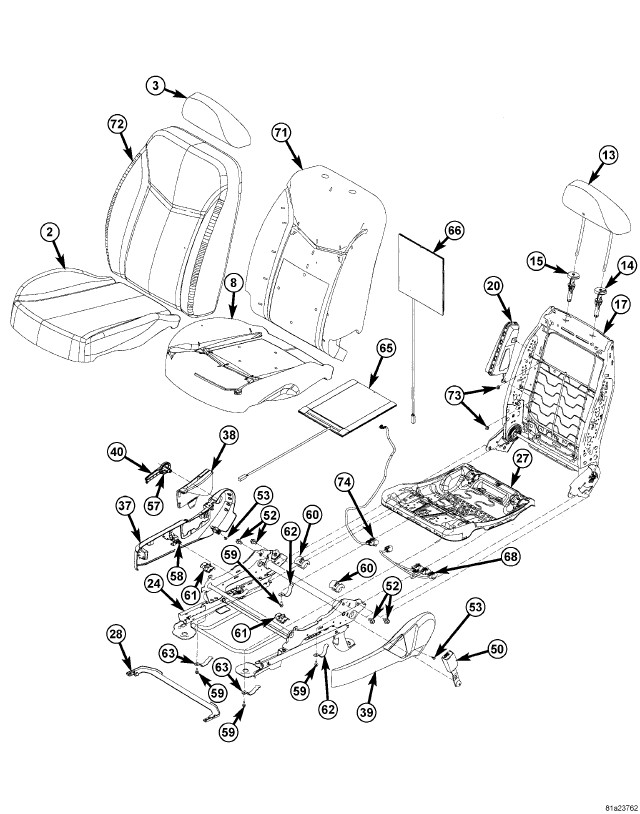

PASSENGER 2-WAY SEAT BREAKDOWN
WARNING: Discard and replace the seat back bolts with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

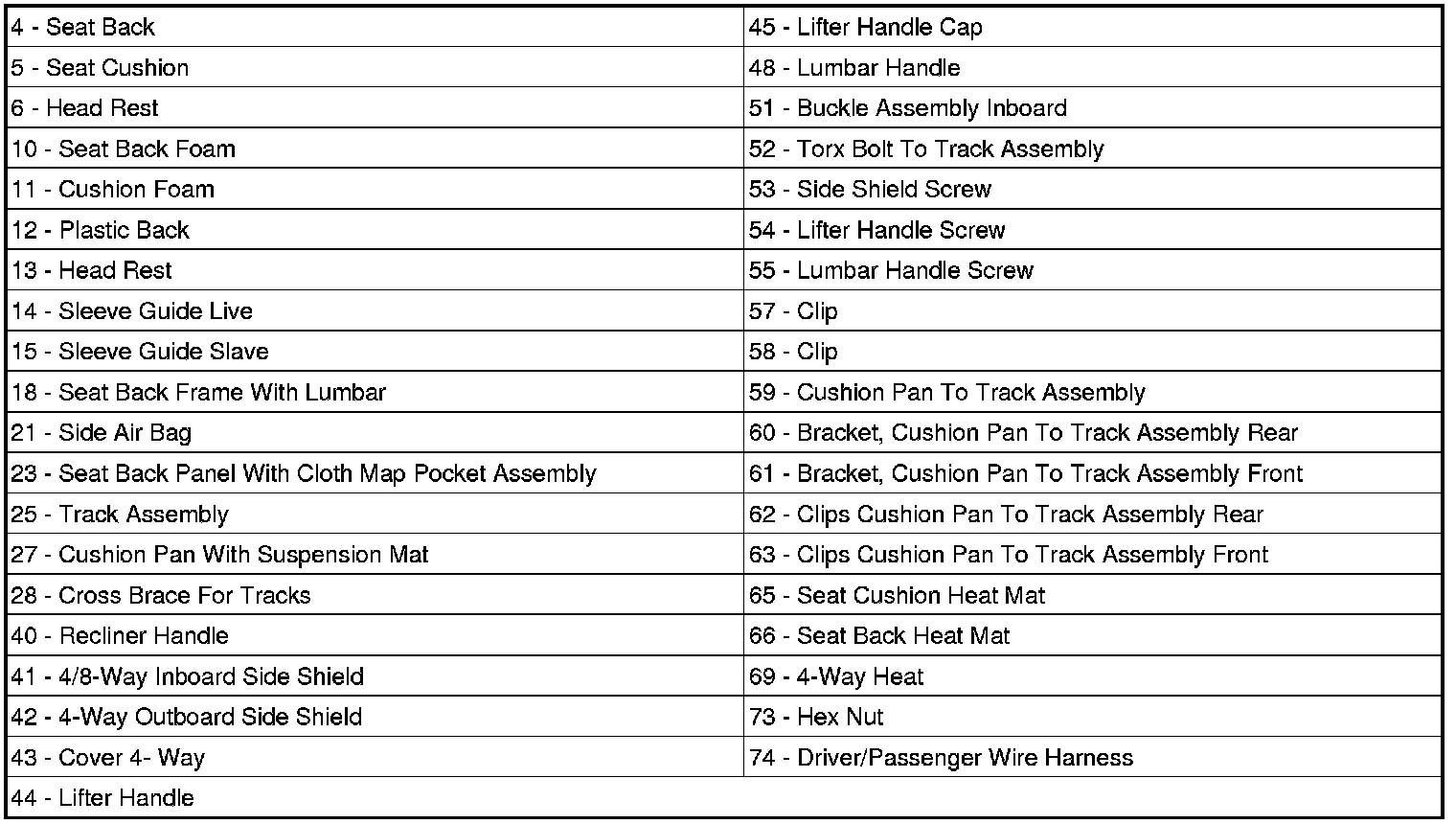

4-WAY POWER DRIVER SEAT BREAKDOWN
WARNING: Discard and replace the seat back bolts (18) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

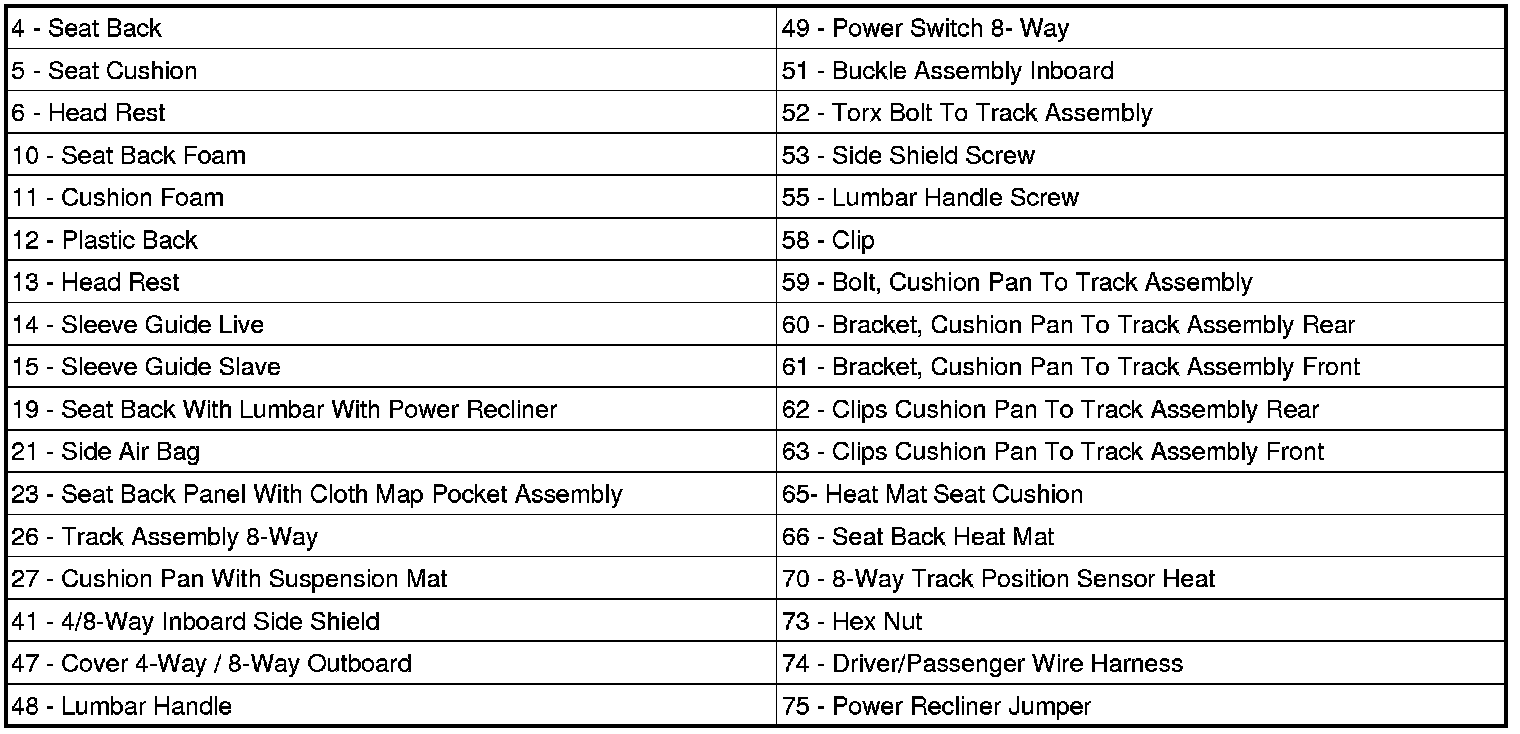

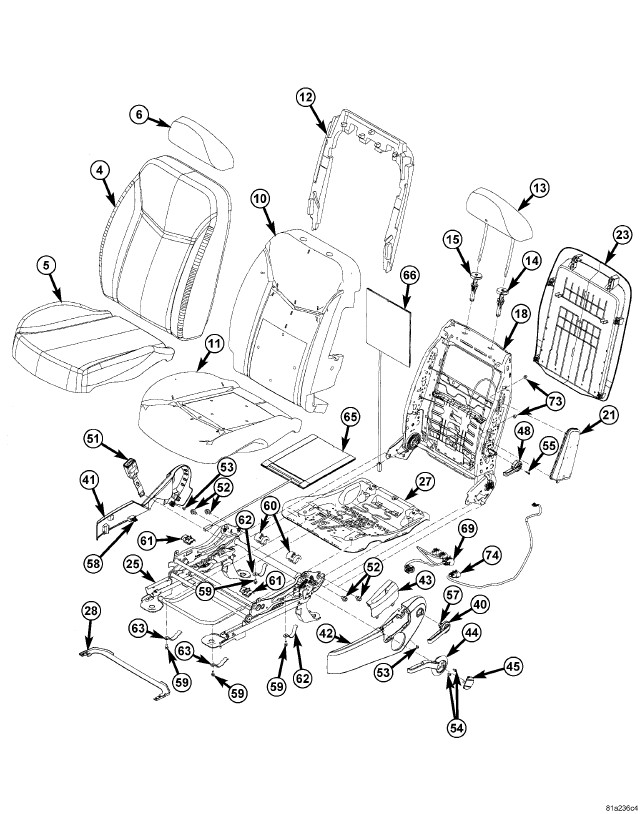

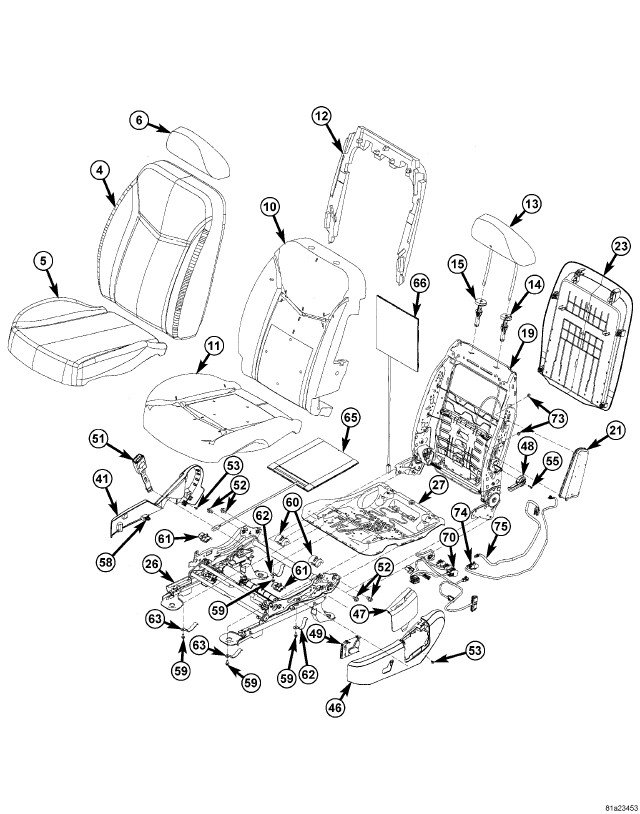

8-WAY POWER DRIVER SEAT BREAKDOWN
