Retractable Hard Top Unique Components





DESCRIPTION

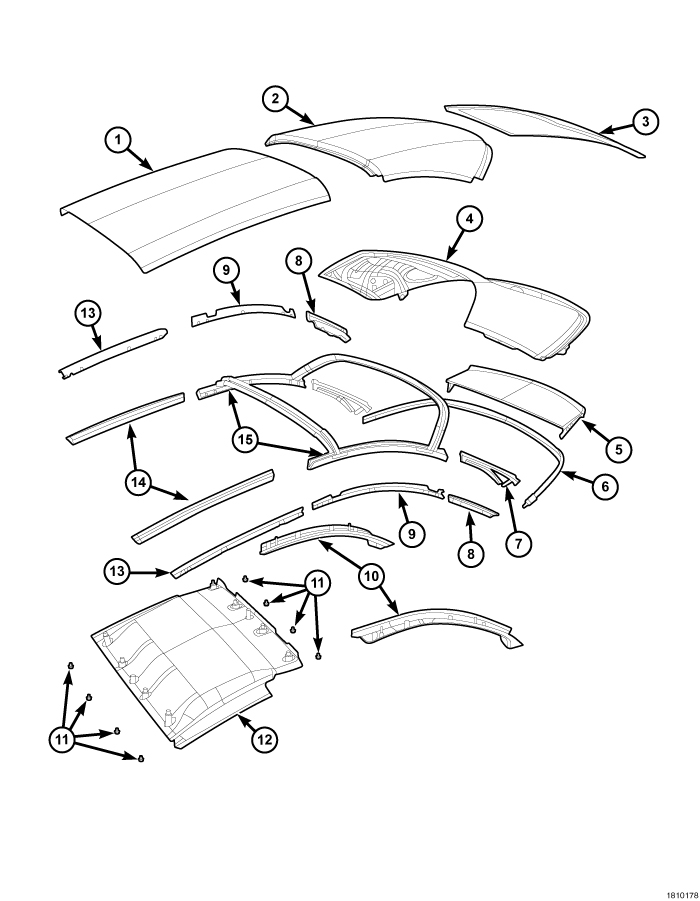

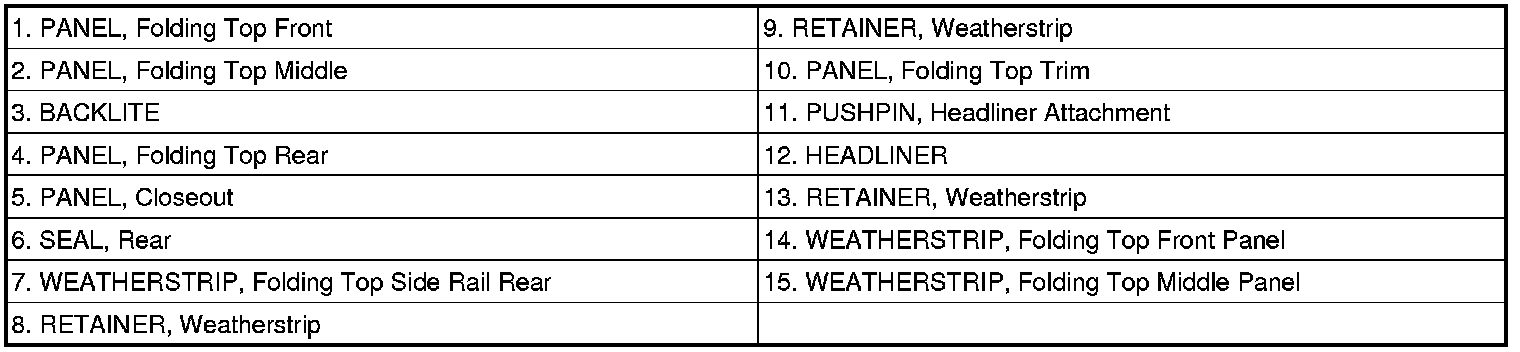

Figure 1 - Retractable Hard Top (RHT) Panels and Weatherstrips

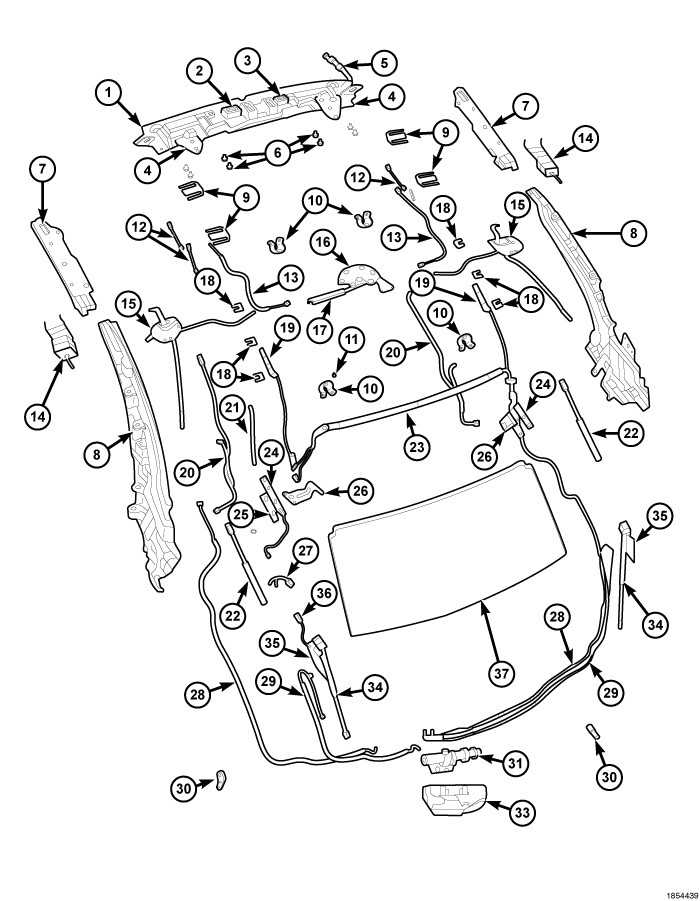

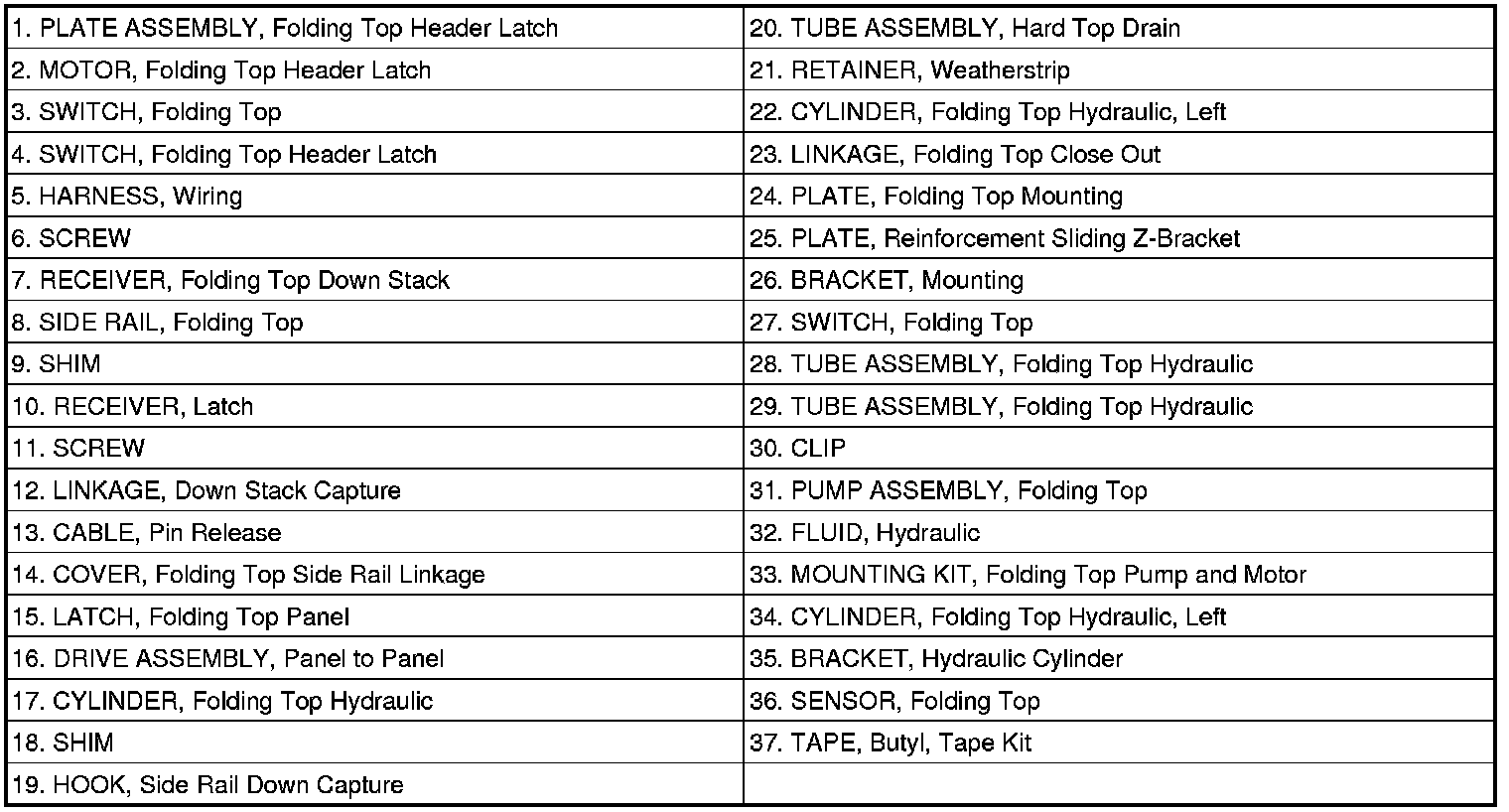

Figure 2 - Retractable Hard Top (RHT) Attaching Parts
