Sedan

INSTALLATION





1. Position decklid on vehicle.

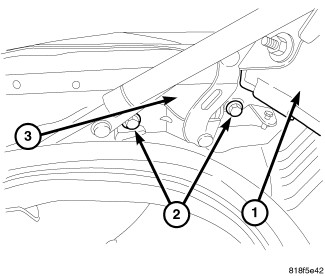

2. With aid of a helper, loosely install nuts attaching decklid (1) to decklid hinge (3).
3. Align marks made on decklid previously to decklid hinge.
4. Tighten nuts attaching decklid (1) to decklid hinge (3) to 22.5 Nm (200 in. lbs.).
5. Connect all wire connectors to decklid latch and install wire harness to decklid.
6. Verify fit of decklid to deck panel. Adjust as necessary.
