Front Door: Description and Operation






DESCRIPTION

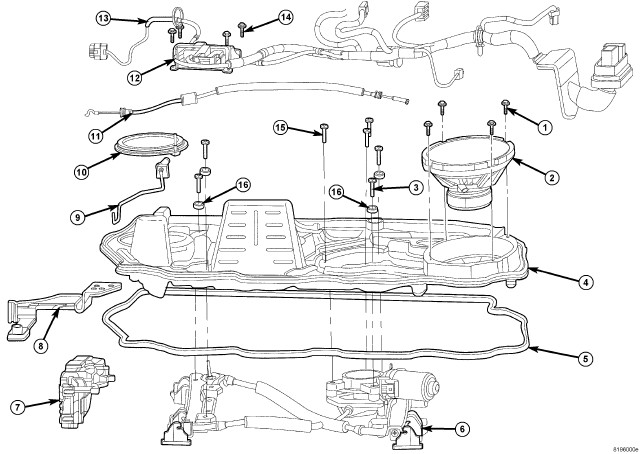

Figure 1 - CARRIER PLATE- JS41

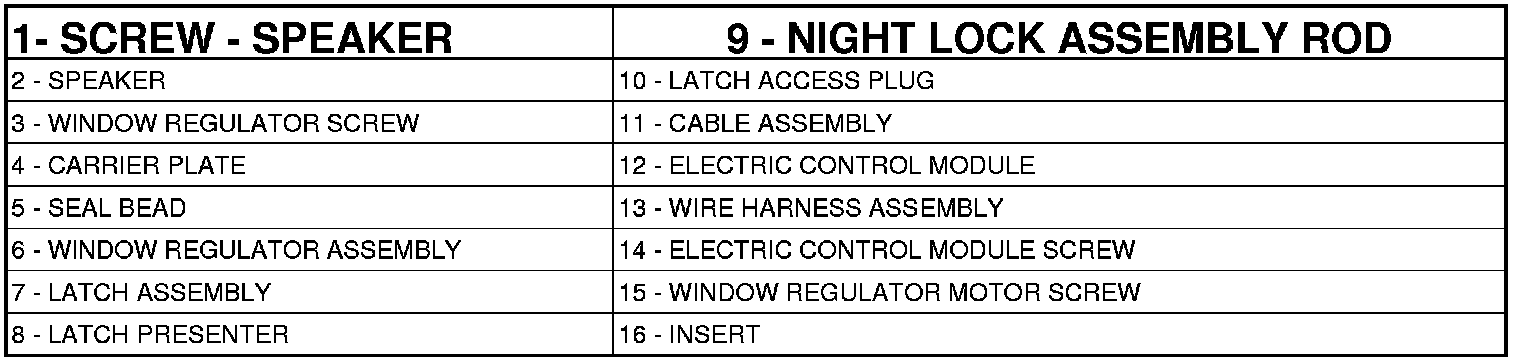

CARRIER PLATE BREAKDOWN - SEDAN









Figure 2 - CARRIER PLATE- JS27

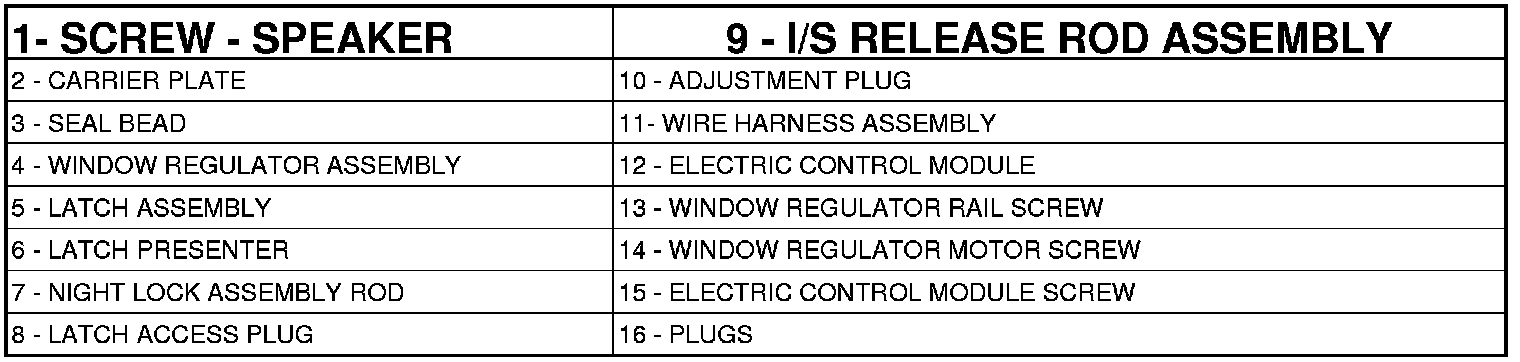

CARRIER PLATE BREAKDOWN - CONVERTIBLE
