Passenger Door Module (PDM)

U0199-LOST COMMUNICATION WITH DRIVER DOOR MODULE

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Continuously when the ignition is on.

Battery voltage between 10 and 16 volts.

Ignition Off Draw (IOD) fuse installed.

Totally Integrated Power Module (TIPM) is configured correctly.

- Set Condition:
Bus messages not received from the Driver Door Module (DDM) for approximately two to five seconds.





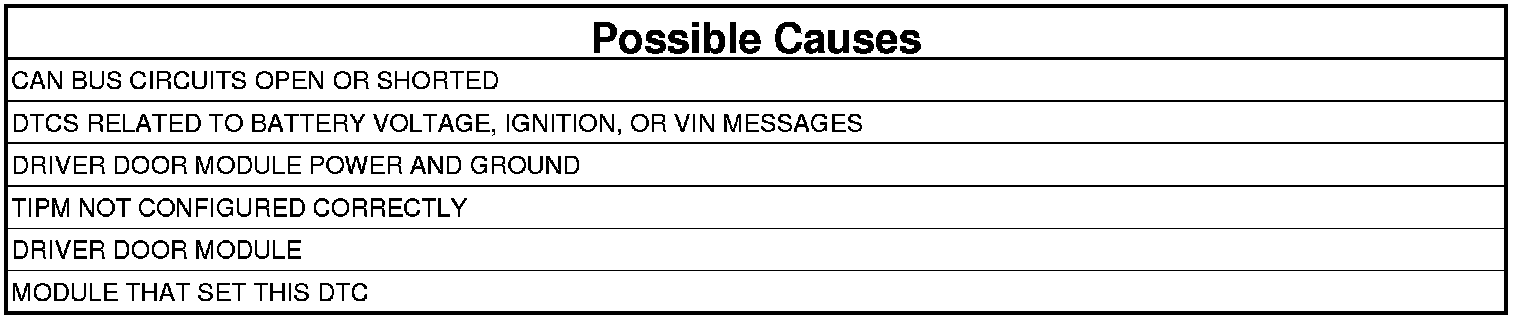

VERIFY DTC IS ACTIVE

NOTE: Make sure the IOD fuse is installed and the battery is fully charged before proceeding.

1. Turn the ignition on.
2. With the scan tool, read the active DTCs.

Is this DTC active?

Yes

- Testing and Inspection and perform the U0199-Lost Communication with Drive Door Module diagnostic procedure.

No

- Stored Lost Communication DTCs and perform the Stored Lost Communication DTCs diagnostic procedure.
