Totally Integrated Power Module (TIPM)

U0184-LOST COMMUNICATION WITH RADIO

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

Battery voltage between 10 and 16 volts.

Ignition Off Draw (IOD) fuse installed.

Totally Integrated Power Module (TIPM) is configured correctly.

- Set Condition:
Bus messages not received from the Radio for approximately two to five seconds.





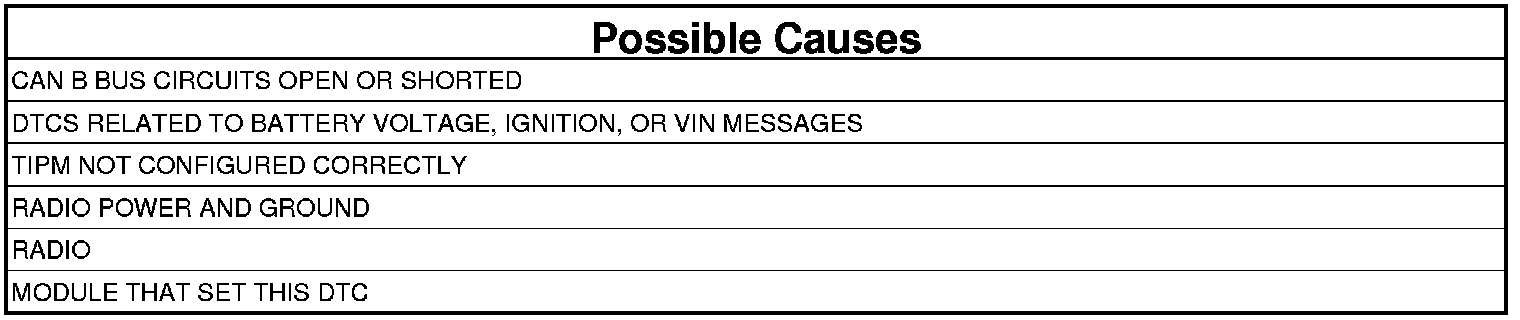

1. VERIFY THE DIAGNOSTIC TROUBLE CODE (DTC) IS ACTIVE

NOTE: Make sure the IOD fuse is installed and battery voltage is between 10 and 16 volts before proceeding.

NOTE: Check for any Technical Service Bulletins (TSBs) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.

1. With the scan tool, read active DTCs.

Is this DTC active?

Yes

- Go To 2

No

- Stored Lost Communication DTCs and perform the Stored Lost Communication DTCs diagnostic procedure.

2. CHECK FOR ANY OF THE FOLLOWING ACTIVE DTCS
1. With the scan tool, read active DTCs from all modules.

NOTE: Check for TIPM configuration, CAN B or C hardware electrical, VIN Missing/Mismatch, battery or ignition related DTCs.

Does the scan tool display any active DTCs to the conditions listed above?

Yes

- Perform the appropriate diagnostic procedure.

No

- Go To 3

3. VERIFY THE RADIO IS ACTIVE ON THE BUS
1. Turn the ignition on.
2. With the scan tool, select ECU View.
3. Verify the Radio is active on the bus.

Is the Radio active on the bus?

Yes

- Go To 4

No

- Stored Lost Communication DTCs and perform the No Response from Radio diagnostic procedure.

4. CHECK FOR ADDITIONAL COMMUNICATION RELATED DTCS
1. With the scan tool, read active DTCs from all modules.

Is there more than one module with active DTCs "Logged Against" the Radio?

Yes

- Replace/update the Radio.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace/update the module that set this DTC.
- Perform the appropriate verification test for the module being replaced. If there is no verification test for the associated module perform the BODY VERIFICATION TEST. Body Verification Test.
