P0072-AMBIENT AIR TEMPERATURE SENSOR CIRCUIT LOW

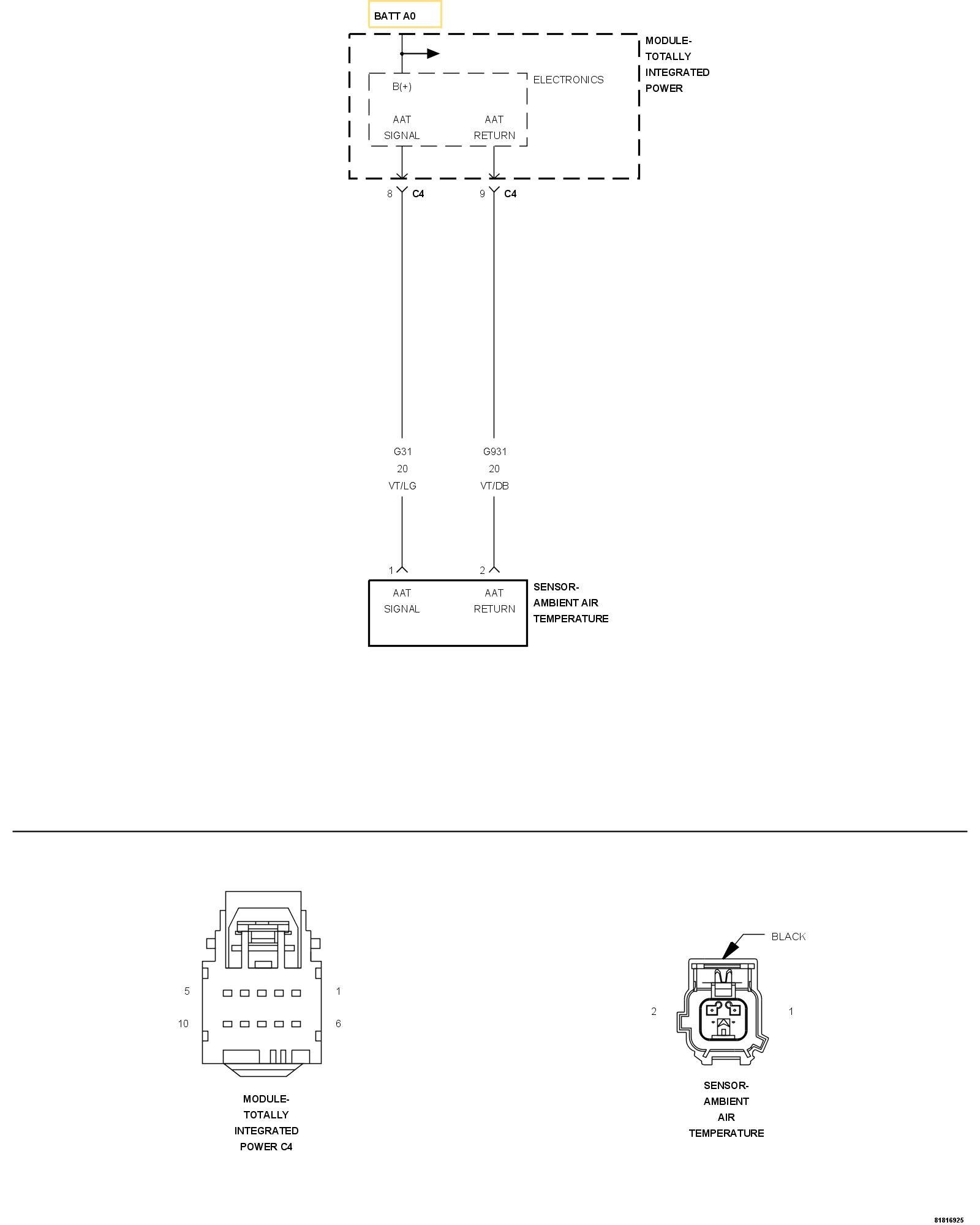

For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

Ambient Air Temperature (AAT) sensor performance looks at the outputs of three temperature sensors and compares them under cold start conditions. The AAT reading is a bussed message from the Totally Integrated Power Module (TIPM) to the Powertrain Control Module (PCM). Following a start to run delay time, the outputs of the ambient, engine coolant and intake air temperature sensors are compared. The AAT sensor is a variable resistor that measures the ambient air temperature. The TIPM supplies a 5 Volt reference and a ground to the sensors low reference signal circuit. When the AAT is low, the sensor resistance is high. When the AAT is high, the sensor resistance is low.

- When Monitored:
With the ignition on and battery voltage greater than 10.4 volts.

- Set Condition:
The PCM detects that the Ambient Air Temperature Sensor input voltage is below the minimum acceptable value.





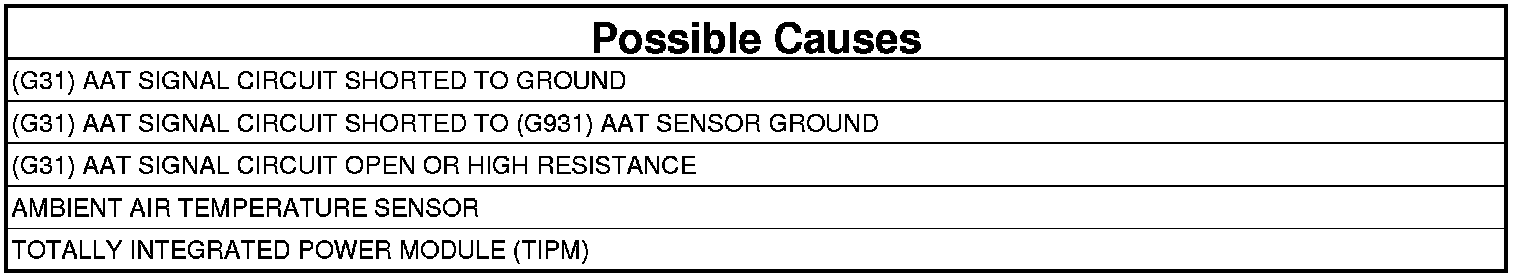

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

1. DTC IS ACTIVE

NOTE: Diagnose any CAN - C Communication DTCs before continuing.

NOTE: Diagnose and repair any system voltage DTCs before continuing with this test.

1. Start the engine and allow it to reach normal operating temperature.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.

2. With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Go To 2

No

- Perform the INTERMITTENT CONDITION diagnostic procedure. Intermittent Condition Test.

2. (G31) AAT SIGNAL CIRCUIT SHORTED TO GROUND




1. Turn the ignition off.
2. Disconnect the Ambient Air Temperature Sensor harness connector.
3. Disconnect the Totally Integrated Power Module (TIPM) C4 harness connector.

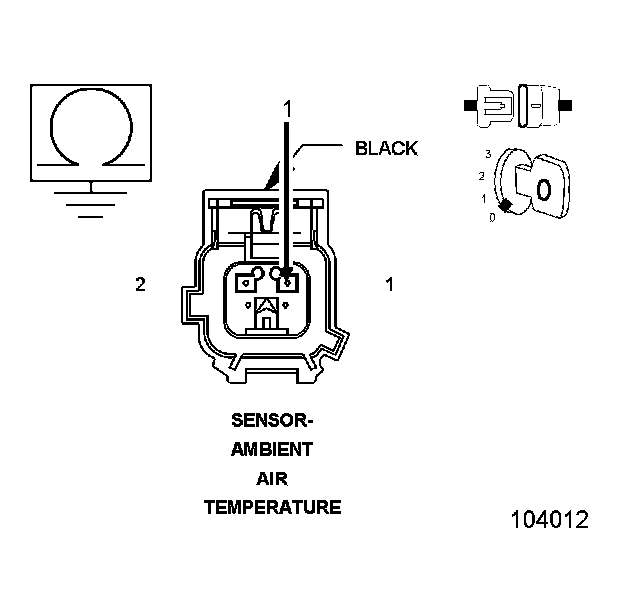

4. Measure the resistance between ground and the (G31) AAT Signal circuit in the Ambient Air Temperature Sensor harness connector.

Is the resistance above 100 Ohms?

Yes

- Go To 3

No

- Repair the (G31) AAT Signal circuit for a short to ground.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

3. (G31) AAT SIGNAL CIRCUIT SHORTED TO THE (G931) AAT SENSOR GROUND CIRCUIT

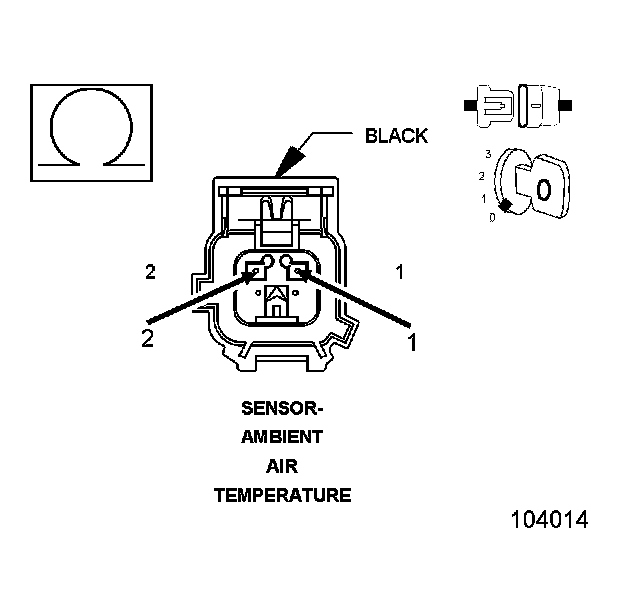

1. Measure the resistance between the (G31) AAT Signal circuit and the (G931) AAT Sensor Ground circuit in the Ambient Air Temperature Sensor harness connector.

Is the resistance above 100 Ohms?

Yes

- Go To 4

No

- Repair the (G31) AAT Signal circuit for a short to the (G931) AAT Sensor Ground circuit.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

4. (G31) AAT SIGNAL CIRCUIT OPEN CIRCUIT OR HIGH RESISTANCE

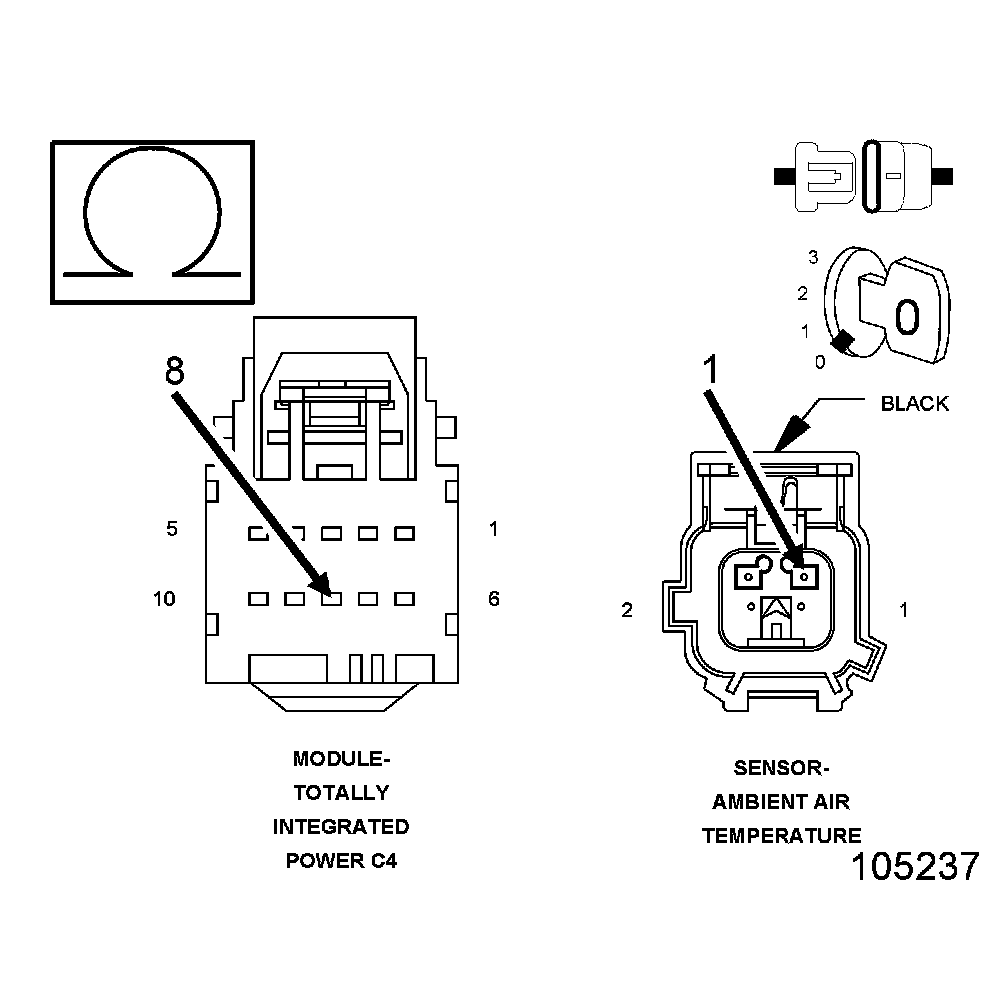

1. Measure the resistance of the (G31) AAT Signal circuit between the Ambient Air Temperature Sensor harness connector and the Totally Integrated Power Module (TIPM) C4 harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Go To 5

No

- Repair the (G31) AAT Signal circuit for an open circuit or high resistance.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

5. AMBIENT AIR TEMPERATURE SENSOR
1. Turn the ignition off.
2. Connect the Totally Integrated Power Module (TIPM) C4 harness connector.
3. Turn the ignition on.
4. With the scan tool, read the Ambient Air Temperature Sensor signal voltage.

Is the voltage above 4.5 volts with the Ambient Air Temperature Sensor harness disconnected?

Yes

- Replace the Ambient Air Temperature Sensor.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Go To 6

6. TOTALLY INTEGRATED POWER MODULE (TIPM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Ambient Air Temperature Sensor and the Totally Integrated Power Module (TIPM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Perform any Technical Service Bulletins that may apply.

Were any problems found?

Yes

- Repair as necessary.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace and program the Totally Integrated Power Module (TIPM).
- Perform the BODY VERIFICATION TEST. Body Verification Test.
