P0017






P0017-CRANKSHAFT-CAMSHAFT TIMING MISALIGNMENT - BANK 1 SENSOR 2

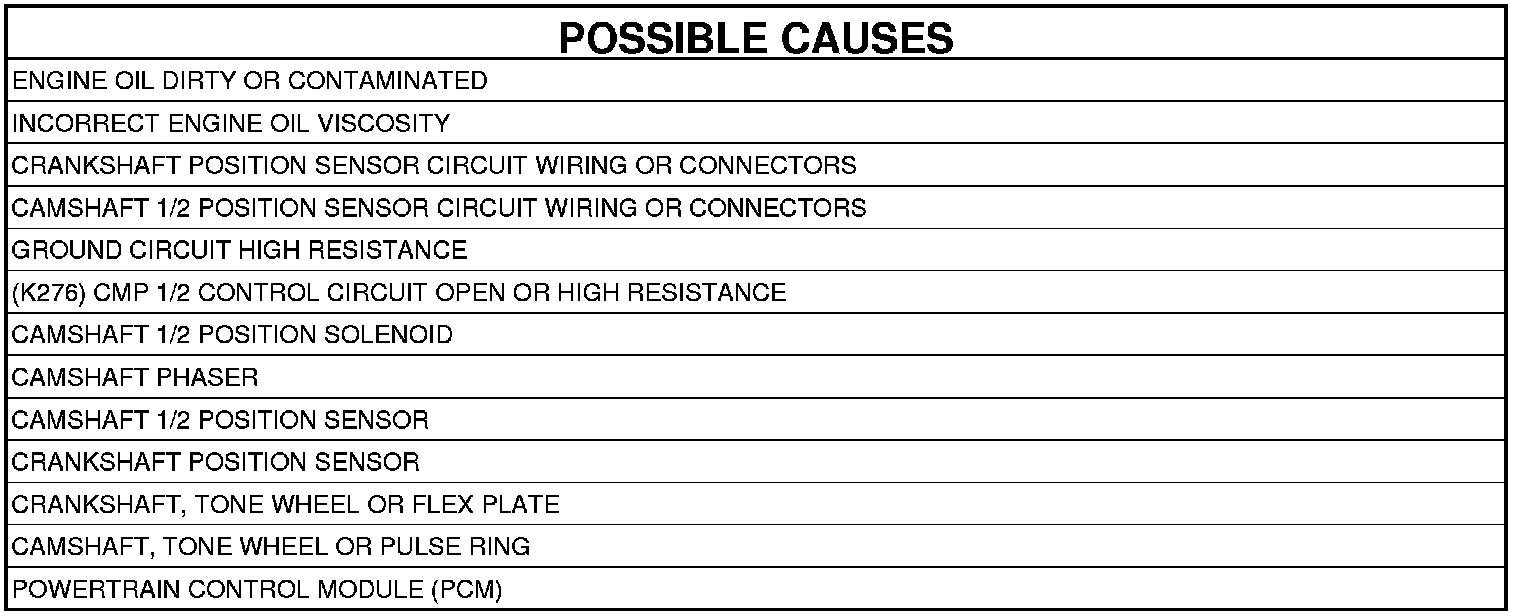

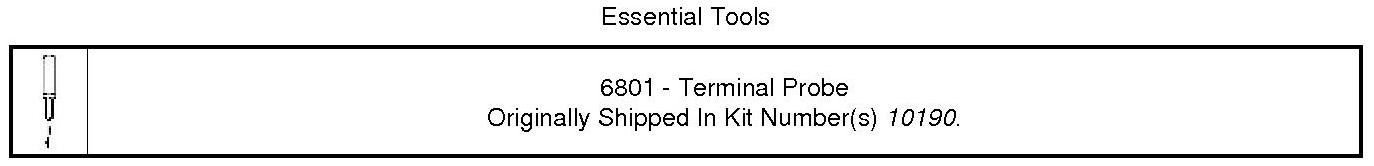

Special Tools:










For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the engine speed present and within a calibrated amount.

- Set Condition:
The Powertrain Control Module (PCM) detects that the camshaft position is out of phase with the crankshaft position. One Trip Fault. Three good trips to turn off the MIL.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

1. DTC IS ACTIVE
1. Turn the ignition on.
2. With the scan tool select View DTCs.
3. Record the related Freeze Frame data.
4. Start the engine and allow it to reach operating temperature.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.

NOTE: If the DTC does not reset it may be necessary to test drive the vehicle.

Is the status Active for this DTC?

Yes

- Go To 2

No

- Perform the INTERMITTENT CONDITION diagnostic procedure. Intermittent Condition Test.

2. CRANKSHAFT POSITION SENSOR CIRCUIT WIRING OR CONNECTORS
1. Turn the ignition off.
2. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Crankshaft Position Sensor and the Powertrain Control Module (PCM).
3. Look for any chafed, pierced, pinched or partially broken wires.
4. Look for broken, bent, pushed out or corroded terminals.
5. Inspect the Crankshaft Position Sensor for conditions such as loose mounting screws, damage, or cracks.

Were any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Go To 3

3. CAMSHAFT 1/2 POSITION SENSOR CIRCUIT WIRING OR CONNECTORS
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Camshaft 1/2 Position Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Inspect the Camshaft 1/2 Position Sensor for conditions such as loose mounting screws, damage, or cracks.

Were any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Go To 4

4. CRANKSHAFT POSITION SENSOR IRREGULAR SIGNAL

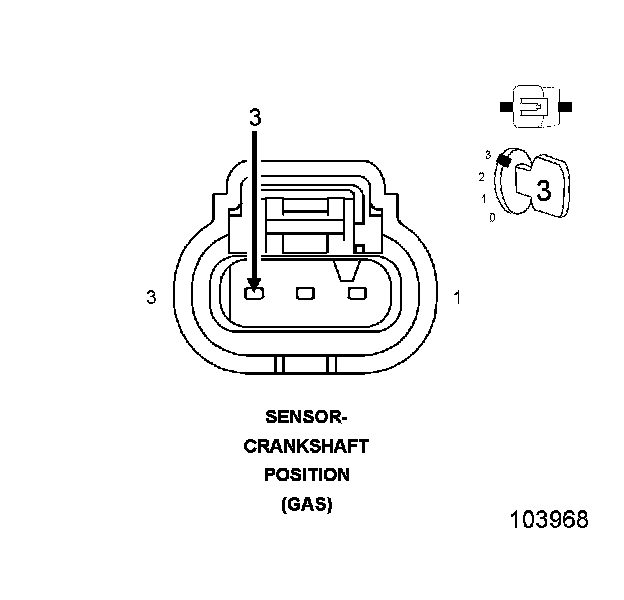

1. Using a lab scope and the back probe tool , backprobe the (K24) CKP Signal circuit in the Crankshaft Position Sensor harness connector.
2. Turn the ignition on.
3. Wiggle the related wire harness and lightly tap on the Crankshaft Position Sensor while monitoring the lab scope screen.
4. Start the engine.
5. Monitor the Crankshaft Position Sensor signal on the lab scope screen.

Were any Crankshaft Position Sensor signals irregular or missing?

Yes

- Go To 6

No

- Go To 5

5. CAMSHAFT 1/2 POSITION SENSOR IRREGULAR SIGNAL




1. Turn the ignition off.
2. Using a lab scope and the back probe tool , backprobe the (K441) CMP 1/2 Signal circuit in the Camshaft 1/2 Position Sensor harness connector.
3. Turn the ignition on.
4. Wiggle the related wire harness and lightly tap on the Camshaft 1/2 Position Sensor while monitoring the lab scope screen.
5. Start the engine.
6. Monitor the Camshaft 1/2 Position Sensor signal on the lab scope screen.

Were any Camshaft 1/2 Position Sensor signals irregular or missing?

Yes

- Go To 7

No

- Go To 10

6. CRANKSHAFT, TONE WHEEL OR FLEX PLATE
1. Turn the ignition off.
2. Remove the Crankshaft Position Sensor.
3. Inspect the Crankshaft Position Sensor and mounting area for any condition that would result in an incorrect signal, such as damage, foreign material or excessive movement.

Were any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Go To 8

7. CAMSHAFT, TONE WHEEL OR PULSE RING
1. Turn the ignition off.
2. Remove the Camshaft 1/2 Position Sensor.
3. Inspect the Camshaft 1/2 Position Sensor and mounting area for any condition that would result in an incorrect signal, such as damage, foreign material or excessive movement.

Were any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Go To 9

8. CRANKSHAFT POSITION SENSOR
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Crankshaft Position Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.

Were any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Replace the Crankshaft Position Sensor. Crankshaft Position Sensor - Removal.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

9. CAMSHAFT 1/2 POSITION SENSOR
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Camshaft 1/2 Position Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.

Were any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Replace the Camshaft 1/2 Position Sensor. Camshaft Position Sensor - Removal.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

10. CAMSHAFT 1/2 POSITION SOLENOID/OIL CONTROL VALVE INSPECTION
1. Turn the ignition off.
2. Remove the Camshaft 1/2 Position Solenoid/Oil Control Valve. Do not disconnect the harness connector.
3. Perform a visual inspection of the open part of the solenoid (spool valve) for the presence of any debris (metallic or non-metallic).

NOTE: If contamination is observed, the Camshaft 1/2 Position Solenoid/Oil Control Valve must be replaced. After replacing the valve, verify that the engine oil has been replaced with the appropriate oil.

Were any problems found?

Yes

- Replace the Camshaft 1/2 Position Solenoid/Oil Control Valve. Oil Intake Control Valve - Removal.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Go To 11

11. CAMSHAFT 1/2 POSITION SOLENOID/OIL CONTROL VALVE ACTUATION
1. Turn the ignition on.
2. With the scan tool, actuate the Camshaft 1/2 Position Solenoid/Oil Control Valve.
3. Perform a visual inspection of the spool valve for erratic movement or sticking during the forward and reverse stroke.

NOTE: If sticking or erratic movement is observed, the Camshaft 1/2 Position Solenoid/Oil Control Valve must be replaced. After replacing the valve, verify that the engine oil has been replaced with the appropriate oil.

Select the appropriate response from the choices below:

Normal operation. No sticking or erratic movement is observed

- Go To 12

No movement is observed

- Go To 14

Sticking or erratic movement is observed

- Replace the Camshaft 1/2 Position Solenoid/Oil Control Valve. Oil Intake Control Valve - Removal.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

12. INCORRECT ENGINE OIL VISCOSITY
1. Review the vehicle service history to determine if the correct viscosity engine oil was used.

Were any problems found?

Yes

- Change the engine oil and retest.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Go To 13

13. ENGINE OIL DIRTY OR CONTAMINATED
1. Turn the ignition off.
2. Inspect engine oil for signs of contamination, sludge or foreign material.

Were any problems found?

Yes

- Clean the engine oil system, including oil passages, and retest.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Go To 19

14. CAMSHAFT 1/2 POSITION SOLENOID/OIL CONTROL VALVE WIRING AND CONNECTORS
1. Turn the ignition off.
2. Inspect the wiring and connectors between the Camshaft 1/2 Position Solenoid/Oil Control Valve and the Powertrain Control Module (PCM).
3. Look for any chafed, pierced, pinched or partially broken wires.
4. Look for broken, bent, pushed out or corroded terminals.

Were any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Go To 15

15. GROUND CIRCUIT HIGH RESISTANCE

NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

1. Turn the ignition off.
2. Disconnect the Camshaft 1/2 Position Solenoid/Oil Control Valve harness connector.
3. Turn the ignition on.
4. Using a 12-volt test light connected to B (+), check the Ground circuit in the Camshaft 1/2 Position Solenoid/Oil Control Valve harness connector.

NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

Is the test light illuminated and bright?

Yes

- Go To 16

No

- Repair the Ground circuit for high resistance.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

16. (K276) CMP 1/2 CONTROL CIRCUIT ACTUATION




1. With the scan tool, actuate the Camshaft 1/2 Position Solenoid/Oil Control Valve to the ON (maximum percentage) position.
2. Using a 12-volt test light connected to ground, check the (K276) CMP 1/2 Control circuit in the Camshaft 1/2 Position Solenoid harness connector.

NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

Is the test light illuminated and bright?

Yes

- Go To 18

No

- Go To 17

17. (K276) CMP 1/2 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE




1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) C2 harness connector.

NOTE: When checking circuits at the Powertrain Control Module (PCM), be careful not to damage or distort the connector terminals. Improper measurement technique could result in poor pin to terminal contact.

3. Measure the resistance of the (K276) CMP 1/2 Control circuit between the Camshaft 1/2 Position Solenoid harness connector and the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Go To 20

No

- Repair the (K276) CMP 1/2 Control circuit for an open circuit or high resistance.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

18. CAMSHAFT 1/2 POSITION SOLENOID/OIL CONTROL VALVE
1. Turn the ignition off.
2. Inspect the wiring and connectors between the Camshaft 1/2 Position Solenoid/Oil Control Valve and the Powertrain Control Module (PCM).
3. Look for any chafed, pierced, pinched or partially broken wires.
4. Look for broken, bent, pushed out or corroded terminals.

Were any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Replace the Camshaft 1/2 Position Solenoid/Oil Control Valve. Oil Intake Control Valve - Removal.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

19. CAMSHAFT PHASER
1. Turn the ignition off.
2. Remove the appropriate Camshaft Phaser.
3. Inspect the Phaser for contamination, foreign material or any condition that would restrict operation of the Phaser.
4. Inspect the Phaser oil passages for signs of sludge or foreign material.

NOTE: The Phaser should not be disassembled. If the Phaser is damaged, it must be replaced.

Were any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Perform the INTERMITTENT CONDITION diagnostic procedure. Intermittent Condition Test.

20. POWERTRAIN CONTROL MODULE (PCM)
1. Turn the ignition off.
2. Inspect the wiring and connectors between the Camshaft 1/2 Position Solenoid/Oil Control Valve and the Powertrain Control Module (PCM).
3. Look for any chafed, pierced, pinched or partially broken wires.
4. Look for broken, bent, pushed out or corroded terminals.
5. Perform any Technical Service Bulletins (TSBs) that apply.

Were any problems found?

Yes

- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Replace and program the Powertrain Control Module (PCM). Powertrain Control Module - Removal.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.
