B2184

B2184-IGNITION UNLOCK RUN/START CONTROL CIRCUIT LOW

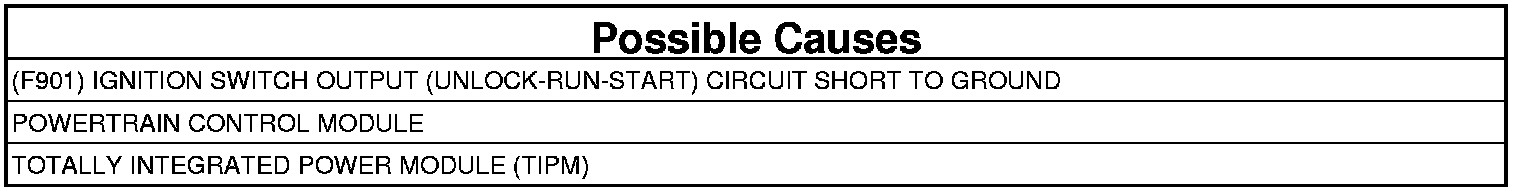

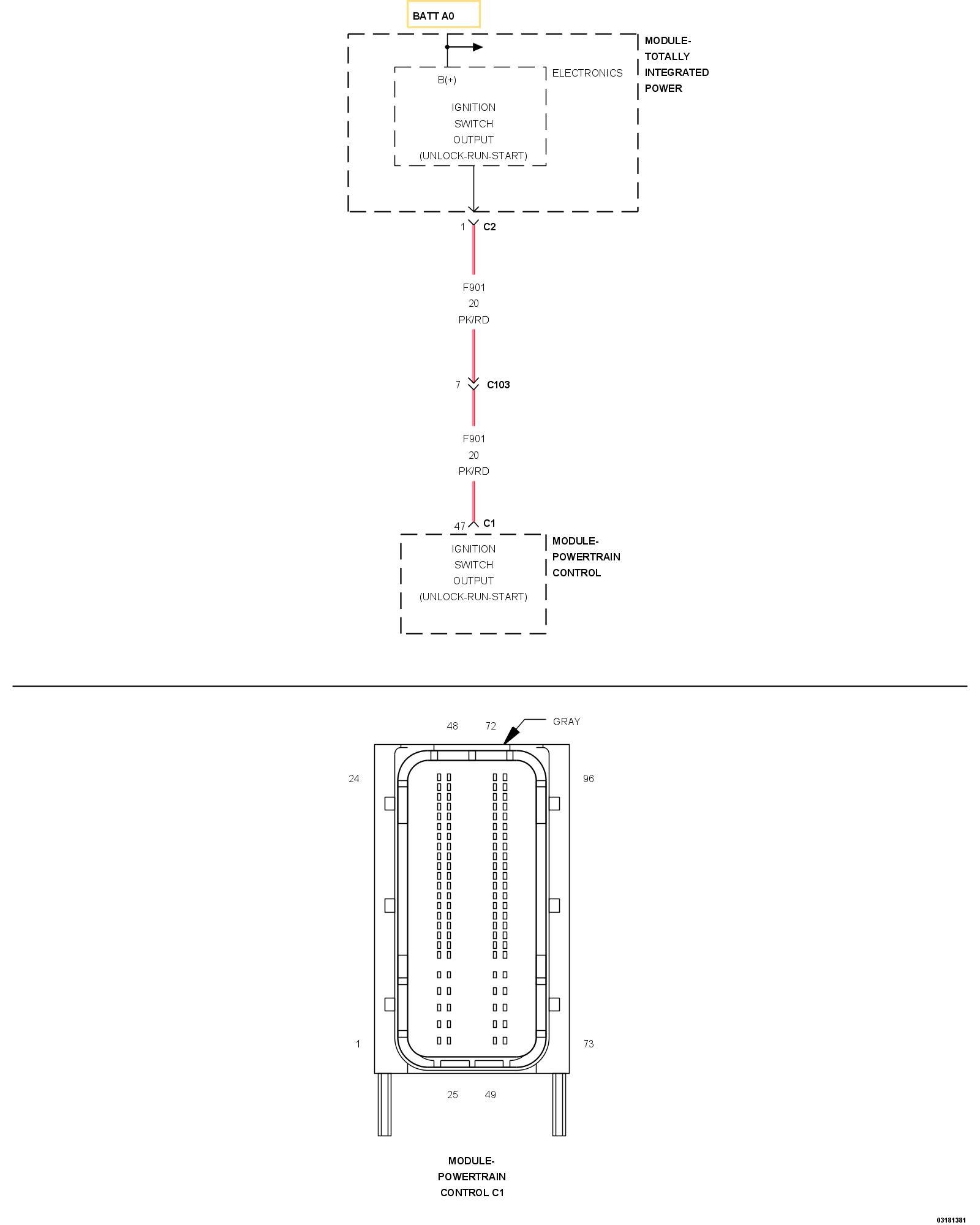

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
(F901) Fused Ignition Switch Output (Unlock-Run-Start) circuit low.





1. CHECK FOR ACTIVE DIAGNOSTIC TROUBLE CODE (DTC)
1. With the scan tool, read the DTCs.
2. Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 10 seconds.
3. With the scan tool, read the DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- If the DTC is stored, check for an intermittent condition. Using the wiring diagram/schematic as a guide, visually inspect the related wiring harness connectors. Look for broken, bent, pushed out or corroded terminals.

2. POWERTRAIN CONTROL MODULE
1. Turn the ignition off.
2. Disconnect the PCM C1 harness connector.
3. Turn the ignition on.
4. Using a 12-volt test light connected to ground, check the (F901) Ignition Switch Output (Unlock/Run/Start) circuit.

Does the test light illuminate?

Yes

- Replace the PCM.
- Perform POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Go To 3

3. CHECK THE (F901) IGNITION SWITCH OUTPUT (UNLOCK-RUN-START) CIRCUIT FOR A SHORT TO GROUND
1. Turn the ignition off.
2. Disconnect the TIPM C2 harness connector.
3. Using a 12-volt test light connected to 12-volts, check for a short to ground on the (F901) Ignition Switch Output (Unlock/Run/Start) circuit.

Does the test light illuminate?

Yes

- Repair the (F901) Ignition Switch Output (Unlock/Run/Start) circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the TIPM.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
