B16D8

B16D8-LEFT TAILLAMP 1 CONTROL CIRCUIT LOW

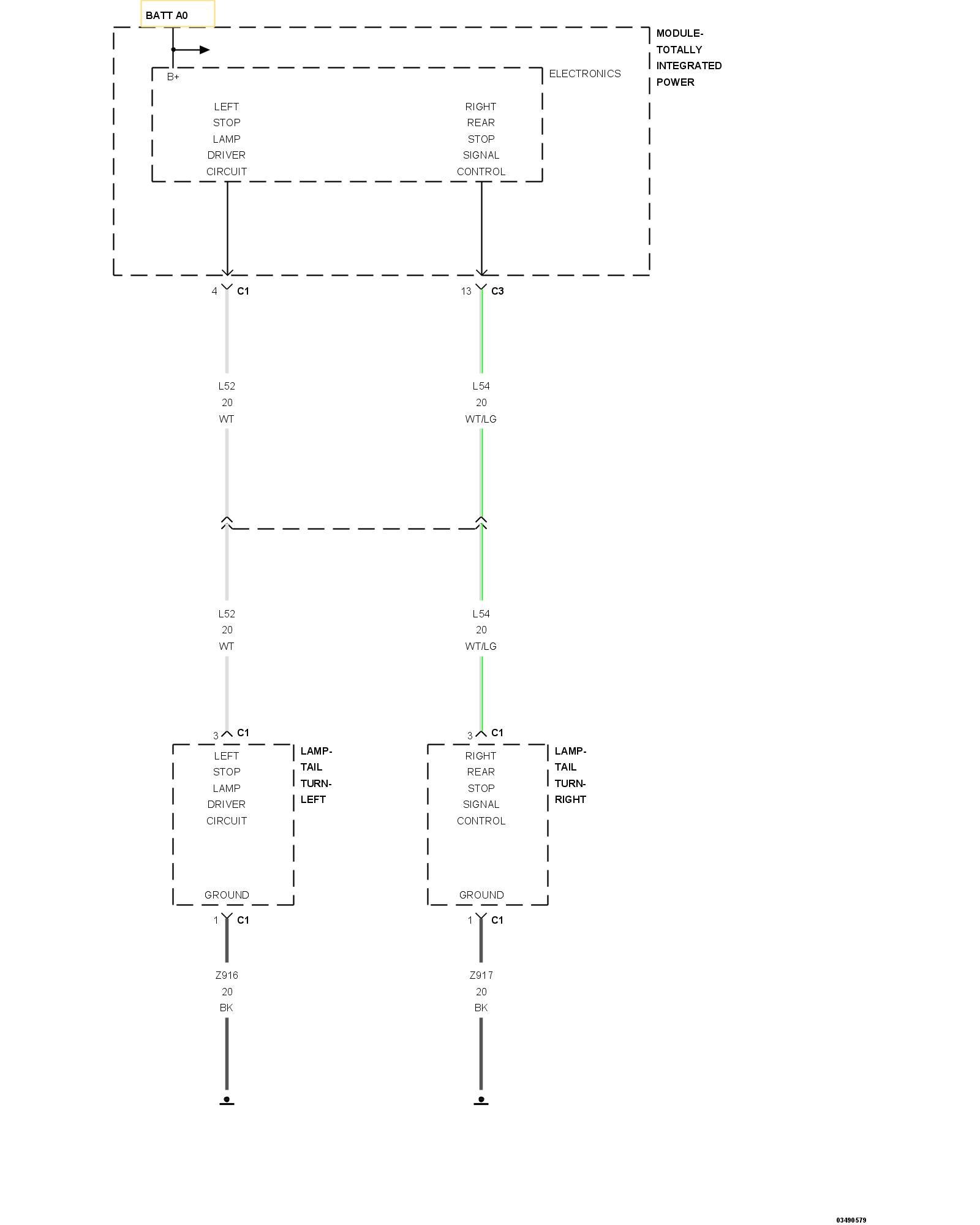

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the Stop Lamps activated.

- Set Condition:
When the TIPM detects a low condition.





1. INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all TIPM DTCs.
3. Turn the Stop Lamps on.
4. With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

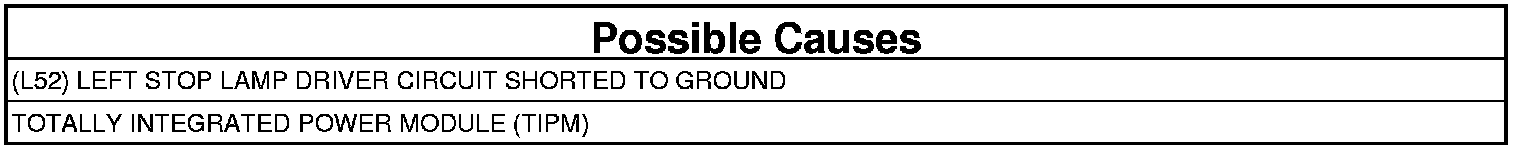

2. (L52) LEFT STOP LAMP DRIVER CIRCUIT SHORTED TO GROUND
1. Turn the ignition off.
2. Disconnect the TIPM C1 connector.
3. Disconnect the Left Tail Turn Lamp harness connector.
4. Measure the resistance between ground and the (L52) Left Stop Lamp Driver circuit.

Is the resistance below 5.0 Ohms?

Yes

- Repair the (L52) Left Stop Lamp Driver circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Totally Integrated Power Module (TIPM).
- Perform the BODY VERIFICATION TEST. Body Verification Test.
