B163B

B163B-FRONT LEFT TURN CONTROL CIRCUIT LOW

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the Turn Signal activated.

- Set Condition:
When the Totally Integrated Power Module (TIPM) detects a low condition.





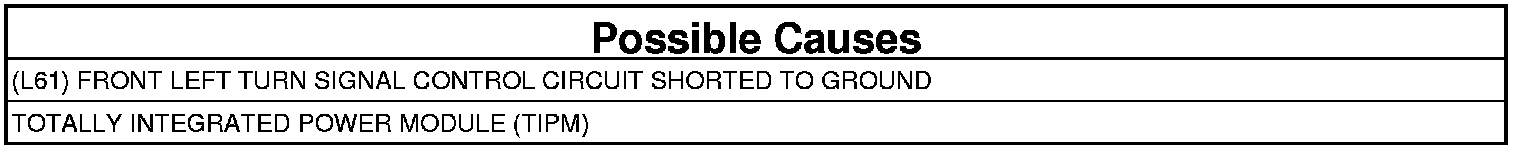

1. INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all TIPM DTCs.
3. Turn the Left Turn Signals on.
4. With the scan tool, read the DTCs.

Does the Scan Tool read: B163B-FRONT LEFT TURN CONTROL CIRCUIT LOW?

Yes

- Go To 2

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched or partially broken wires.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. (L61) FRONT LEFT TURN SIGNAL CONTROL CIRCUIT
1. Turn the ignition off.
2. Disconnect the TIPM C4 harness connector.
3. Disconnect the Left Front Lamp Assembly C3 harness connector.
4. Measure the resistance between ground and the (L61) Front Left Turn Signal Control circuit.

Is the resistance below 5.0 Ohms?

Yes

- Repair the (L61) Front Left Turn Signal Control circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Totally Integrated Power Module (TIPM). Totally Integrated Power Module (TIPM) - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
