Engine Block Heater - Installation

3.6L ENGINE





1. Clean block core hole and heater seat.

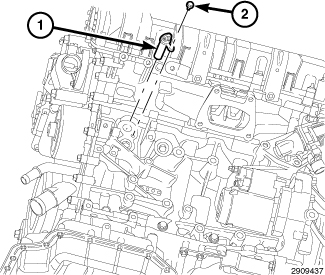

2. Insert heater block (1) assembly.
3. With block heater seated, tighten screw (2) to 12N.M (106 in.lbs.) to assure a positive seal.
4. Install power cord plug to block heater (1).
5. Fill cooling system with coolant to the proper level Service and Repair.





6. Install the A/C compressor A/C Compressor - Installation.
