Part 2

DISASSEMBLY

26. Remove front sun gear assembly (1) and #4 thrust washer (2).










27. Remove front carrier/rear annulus assembly (2) and #6 needle bearing (1).










28. Remove rear sun gear (2).










NOTE: The number 7 needle bearing has three anti-reversal tabs and is common with the number five and number two position. The orientation should allow the bearing to seat flat against the rear sun gear. A small amount of petrolatum can be used to hold the bearing to the rear sun gear.

29. Remove needle bearing (1).

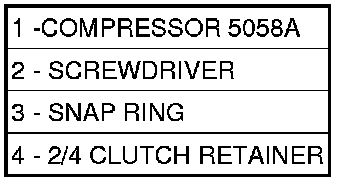

30. Setup Compressor (1). compress 2/4 clutch return spring (4) (just enough to remove snap ring) and remove snap ring (3).

NOTE: Verify that Compressor is centered properly over the 2/4 clutch retainer before compressing. If necessary, fasten Compressor bar to the bellhousing flange with any combination of locking pliers and bolts to center the tool properly.











NOTE: The 2/4 Clutch Piston has bonded seals which are not individually serviceable. Seal replacement requires replacement of the piston assembly.

31. Remove 2/4 clutch retainer (1).










32. Remove 2/4 clutch return spring (1).










33. Remove 2/4 clutch pack. Tag 2/4 clutch pack for reassembly identification.

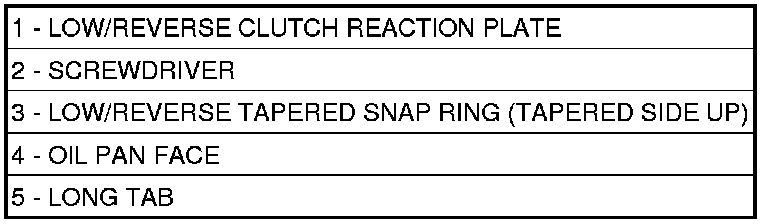

34. Remove tapered snap ring (3).










35. Remove low/reverse reaction plate (1).










36. Remove one low/reverse clutch disc (1).

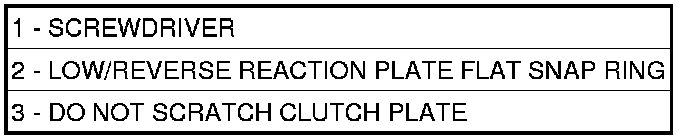

37. Remove low/reverse reaction plate snap ring (2).










38. Remove low/reverse clutch pack.










39. Remove transfer gear cover-to-case bolts (1).










40. Remove transfer gear cover (1).

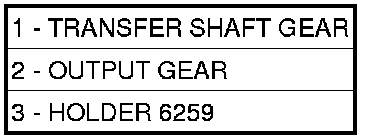

41. Install Holder (3).

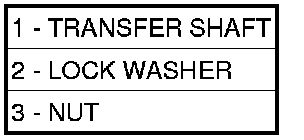

42. Remove transfer shaft gear-to-shaft nut (3) and coned washer (2).

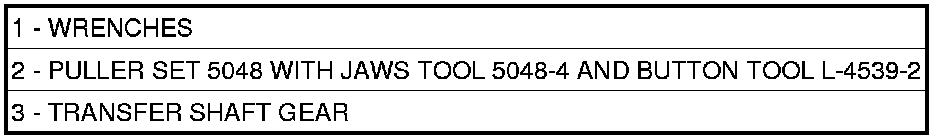

43. Using Gear Puller (1, 3), remove transfer shaft gear.










44. Remove transfer gear shim (select) (3).










45. Remove bearing cup retainer (2).










46. Remove transfer gear bearing cone using Puller Set with Jaws and Button.

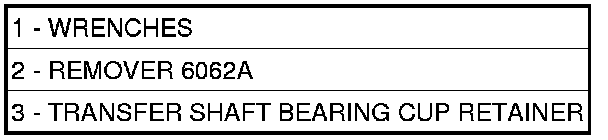

47. Remove transfer shaft bearing cup from retainer using Remover (2).

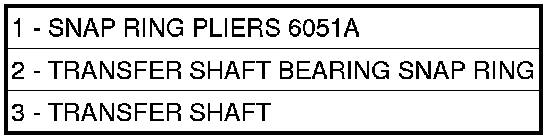

48. Using Snap Ring Pliers (1), remove transfer shaft bearing snap ring (2).

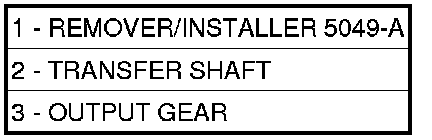

49. Using Remover/Installer (1), remove transfer shaft (2) from transaxle.

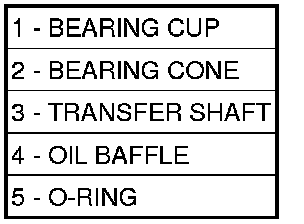

50. Slip bearing cup (1) and oil baffle (4) off of shaft (3).
